EOP2021-CS17 REV-A.3
KSS Installation Guide
Page 11 of 28

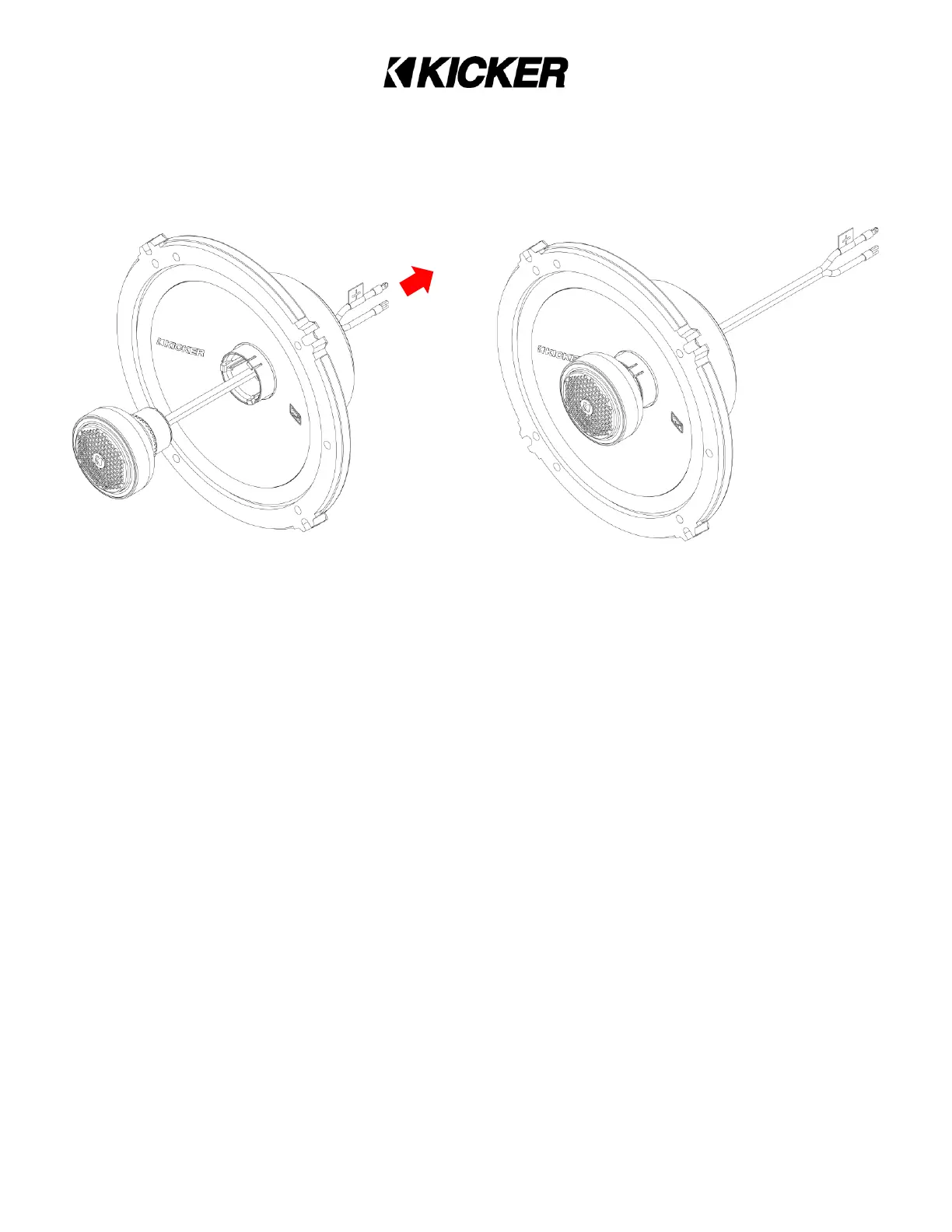

8. Route tweeter wires through lower tweeter post and woofer motor. Push tweeter
assembly unto lower tweeter post until upper tweeter post and lower tweeter post click
together.
9. Coaxial installation of the tweeter is complete. The tweeter house can be rotated into the
desired position.
