ANGULAR MOUNTING THE TWEETER

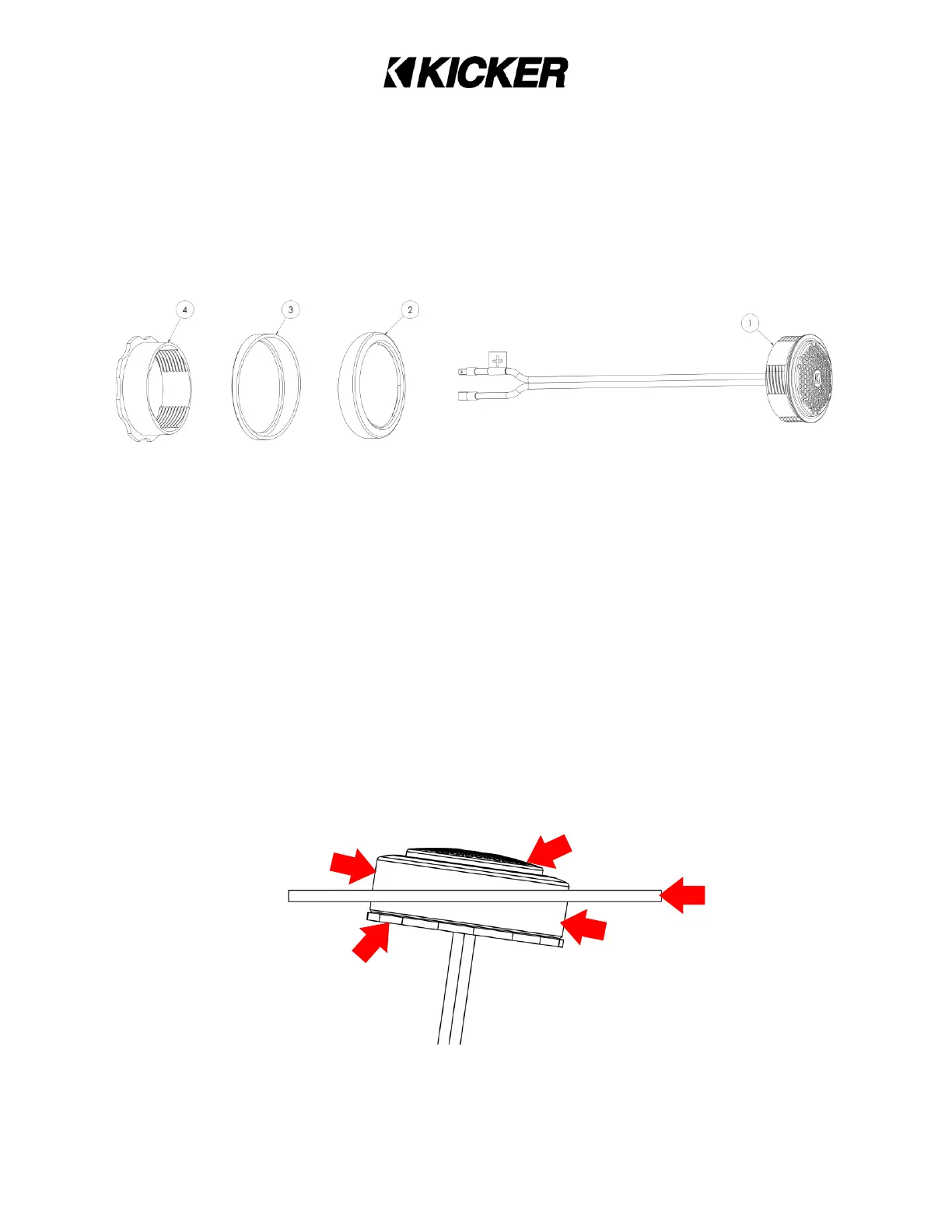

Four items are needed to flush mount the tweeter remotely (See Figure 15).
1. Tweeter
2. Upper Angle Mounting Ring
3. Lower Angle Mounting Ring
4. Angle Mounting Nut
The angular mounting system allows for the mounting of the tweeter in a door panel,
body panel, dash, etc. Angular mounting of the tweeter provides a sleek look with while
directing the tweeter 8 degrees towards a desired location.
1. Drill a 1
7
/
8
” (48mm) hole in the surface where the tweeter will be mounted. Be
cautious not to drill into any components behind the surface.
2. Route the tweeter wire into the convex side of the upper angle mounting ring and out
the concave side of the upper angle mounting ring.
3. Route the tweeter wire into the drilled hole and place the tweeter into the drilled hole.
4. Route the tweeter wire into the concave side of the lower angle mounting ring and out
the flat side of the lower angle mounting ring.
5. Screw the angle mounting nut onto the tweeter to secure it in the drilled hole.
