1. Drill a 1
11
/
16
” (43mm) hole in the surface where the tweeter will be mounted. Be
cautious not to drill into any components behind the surface.
2. Route the tweeter wire into the convex side of the flush mounting ring and out the flat
side of the flush mounting ring.
3. Route the tweeter wire into the drilled hole and place the tweeter into the drilled hole.

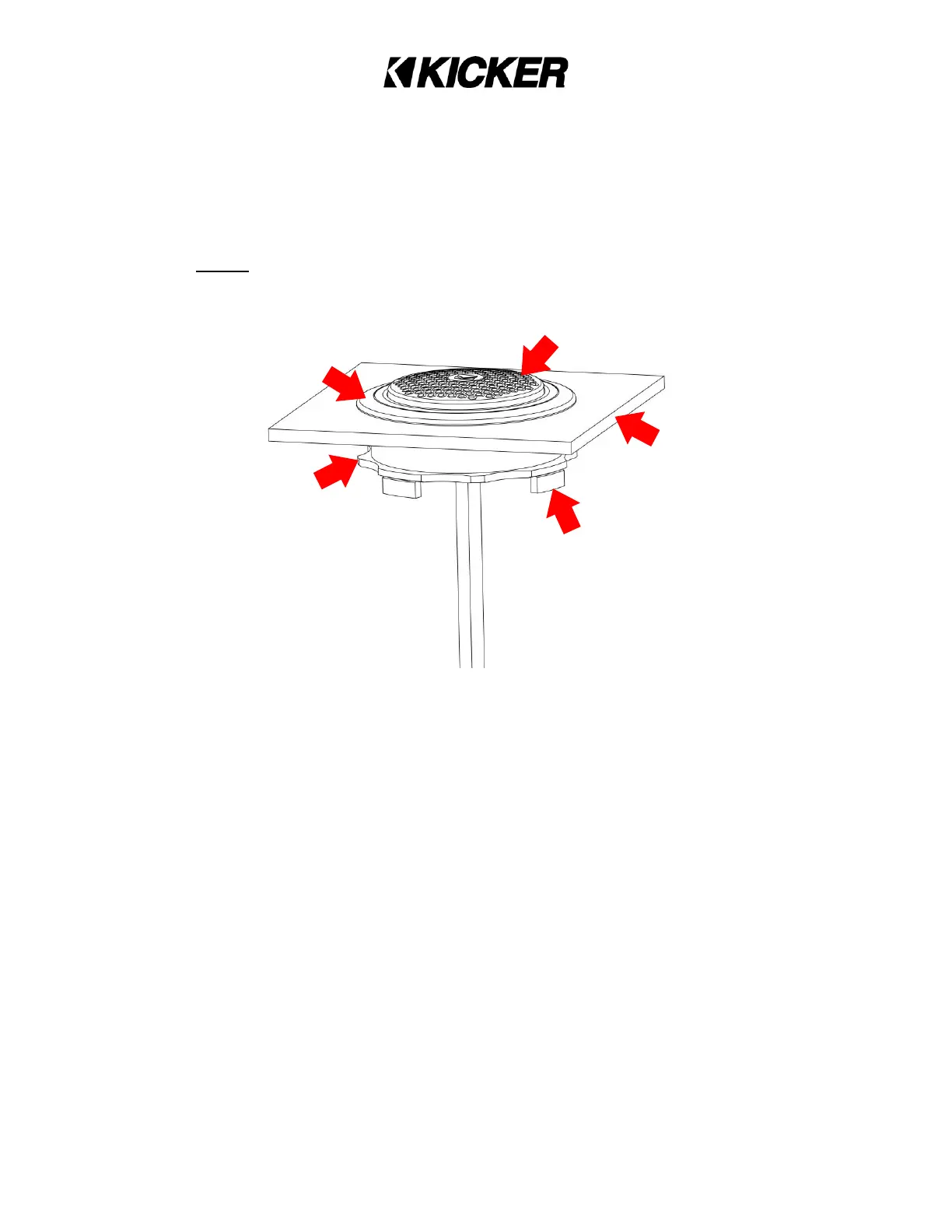

4. Screw the flush mounting nut onto the tweeter to secure it in the drilled hole.
NOTE: The flush mounting nut can be installed in reverse when mounting to very
thin surfaces. If necessary, remove break-away tabs to aid in installation.
