4. Route tweeter wire and tweeter pod housing post through the hole.
5. Thread nut onto tweeter pod housing post and tighten.
6. The tweeter pod assembly is now secured. Adjust the tweeter to point in the desired
direction.

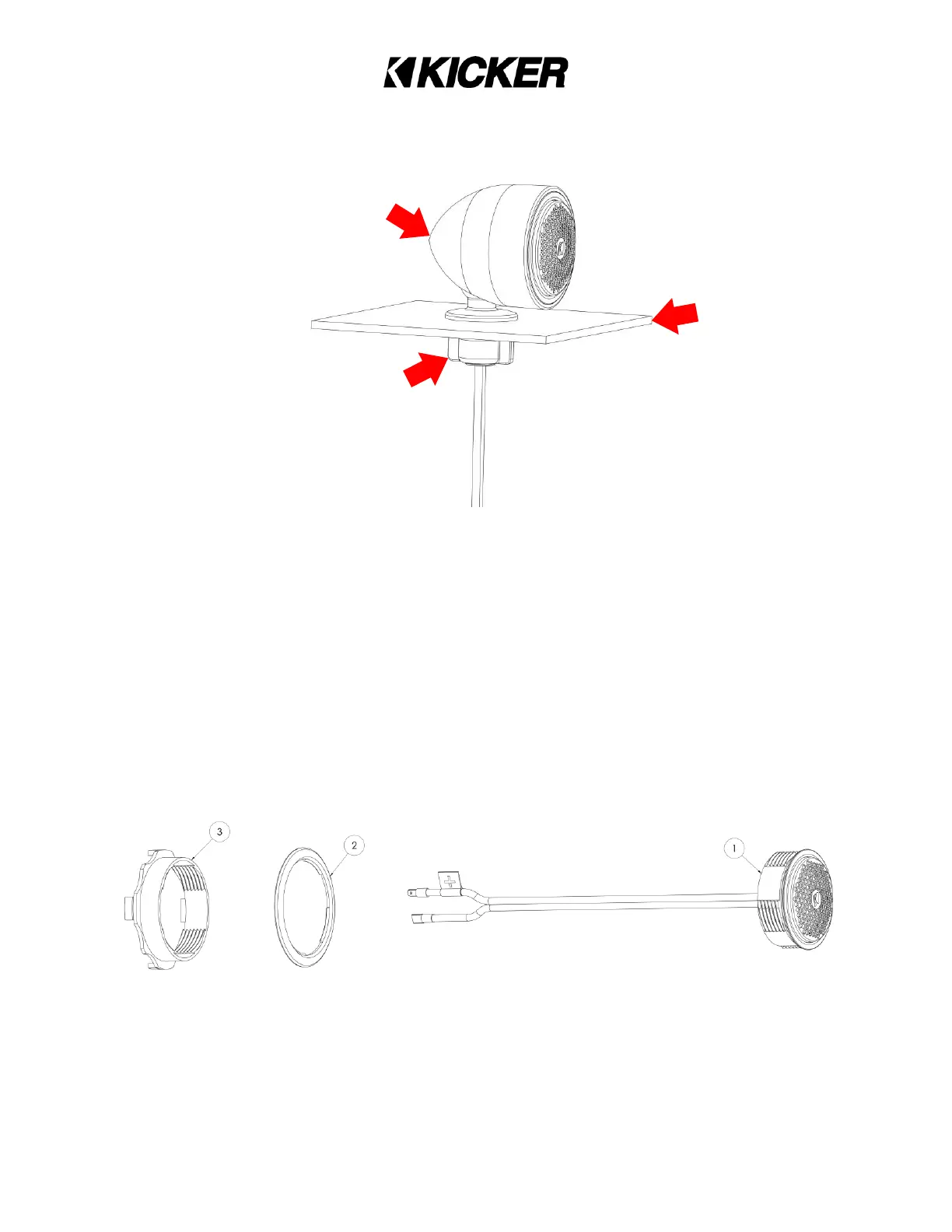

FLUSH MOUNTING THE TWEETER
Three items are needed to flush mount the tweeter remotely.
1. Tweeter
2. Flush Mounting Ring
3. Flush Mounting Nut
The flush mounting system allows for the mounting of the tweeter in a door panel, body
panel, dash, etc. Mounting the tweeter flush provide a sleek look with minimal protrusion of the
tweeter.
