Kicker 47KSS - Page 13

EOP2021-CS17 REV-A.3
KSS Installation Guide
Page 13 of 28

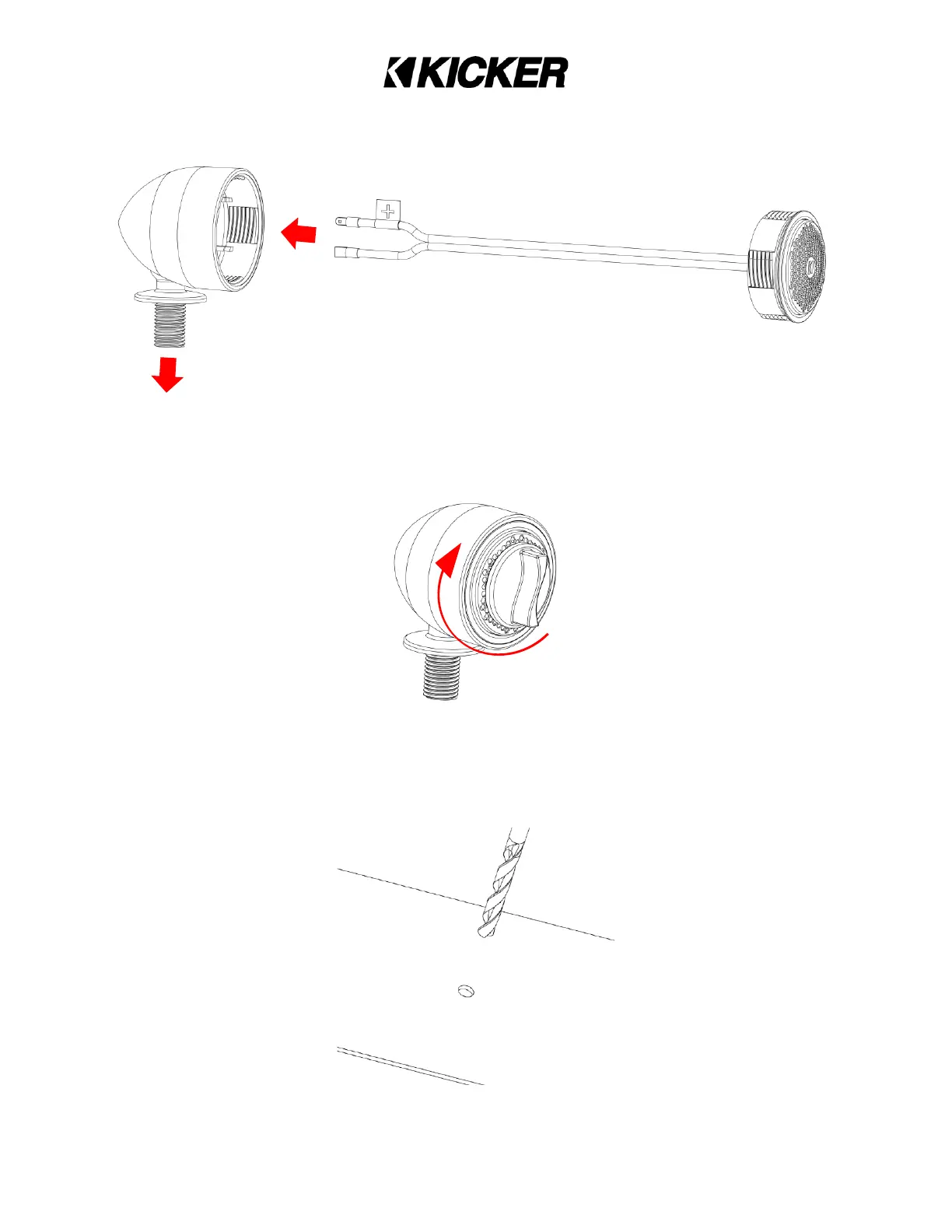

1. Route tweeter wire into the pod assembly and trough the tweeter pod housing post.
2. Push tweeter into tweeter house. Engage threads. Turn clockwise an eighth turn to
lock tweeter into the housing using tightening tool to grab the tweeter grille.
3. Drill a 1/2” (13mm) hole in the surface that the pod is to be mounted. Be cautious not
to drill into any components behind the surface.
1/8 TURN
