EOP2021-CS17 REV-A.3
KSS Installation Guide
Page 24 of 28

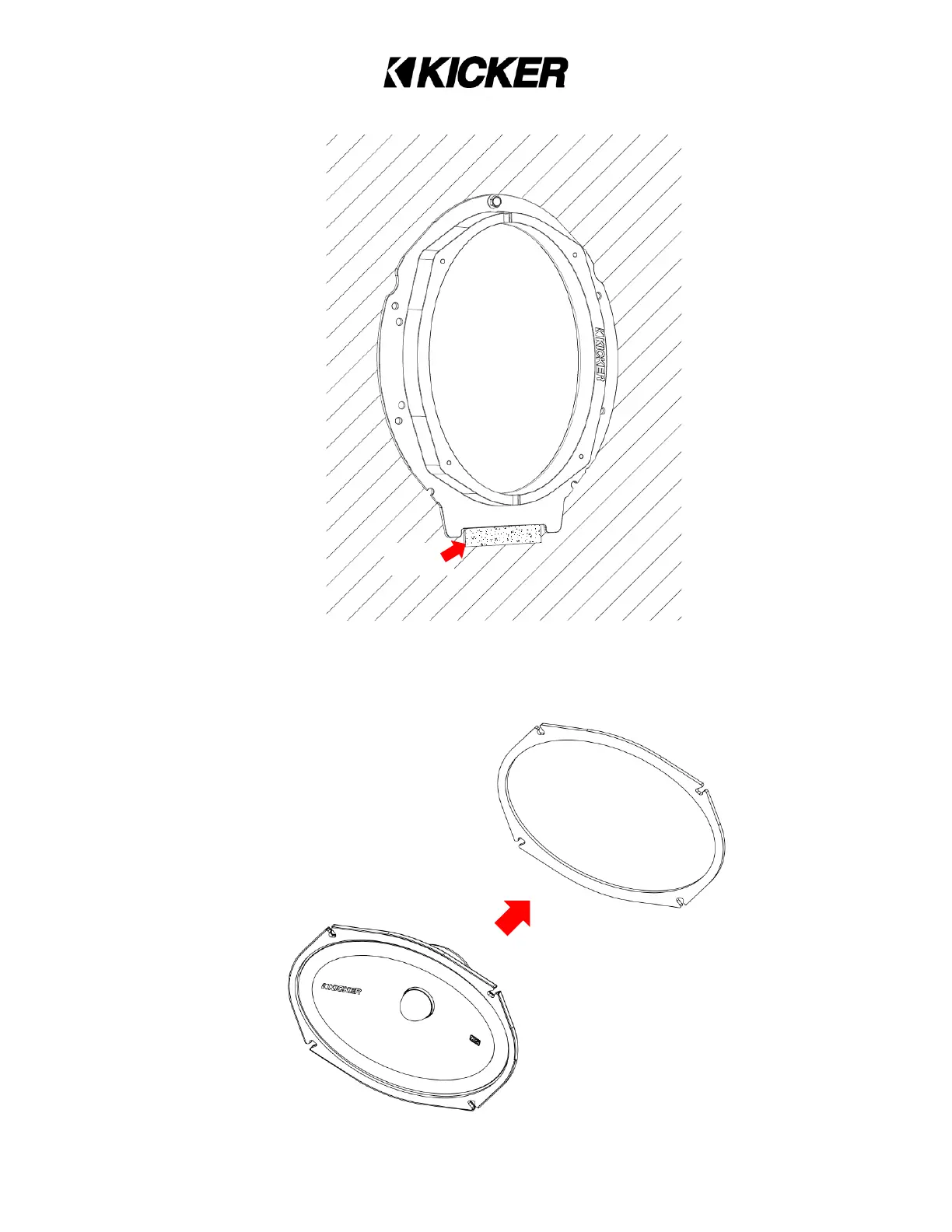

4. Fasten the adapter to the mounting panel using the factory hardware.
5. A back gasket/spacer is included to improve fitment. It may be necessary to space the
speaker motor further way from accessories (windows tracks, lock actuators, etc.) in
some applications. If necessary, use the back gasket/spacer.
FOAM
BODY
PANEL
SPEAKER HOLE
