Kicker KSS system-packs are made to replace and upgrade factory speakers. The speakers
may also be placed in custom locations. A grille is provided with some speaker models for
applications in older vehicles as well as custom locations. There are a total of four configurations
that the KSS tweeter can be mounted to fit the customer’s preferences.
• Coaxially in the speaker
• Remotely in the pod
• Remotely using the flush mounting system
• Remotely using the angular mounting system.
This document will address these configurations individually to provide insight into how these
mounting systems are to be assembled for the following models.
• 47KSS504
• 47KSS6504
• 47KSS6704
• 47KSS6804
• 47KSS6904
COAXIAL MOUNTING THE TWEETER

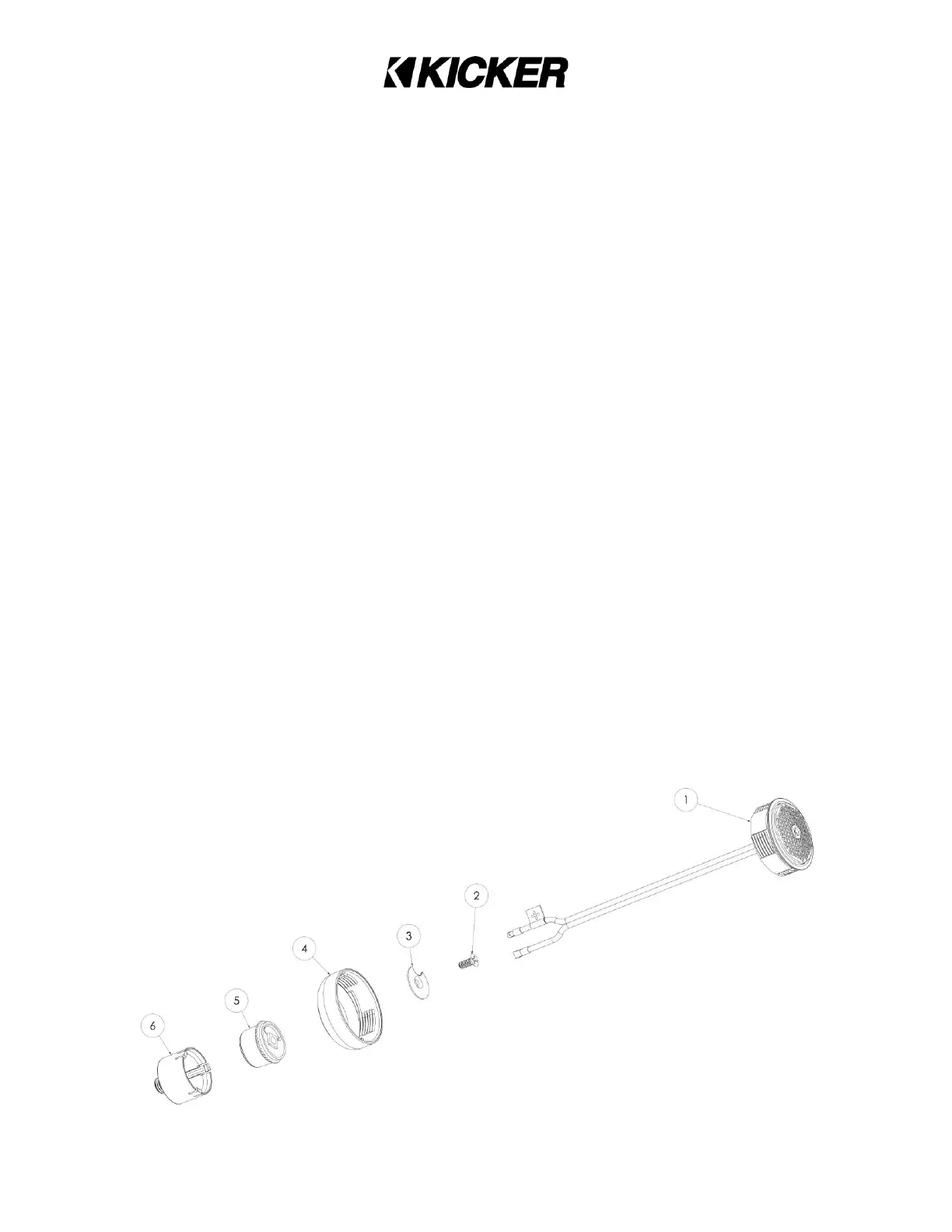

A total of six items are necessary to mount the tweeter coaxially with the woofer:
1. Tweeter
2. Screw
3. Pivot Washer
4. Tweeter House
5. Upper Tweeter Post
6. Lower Tweeter Post
