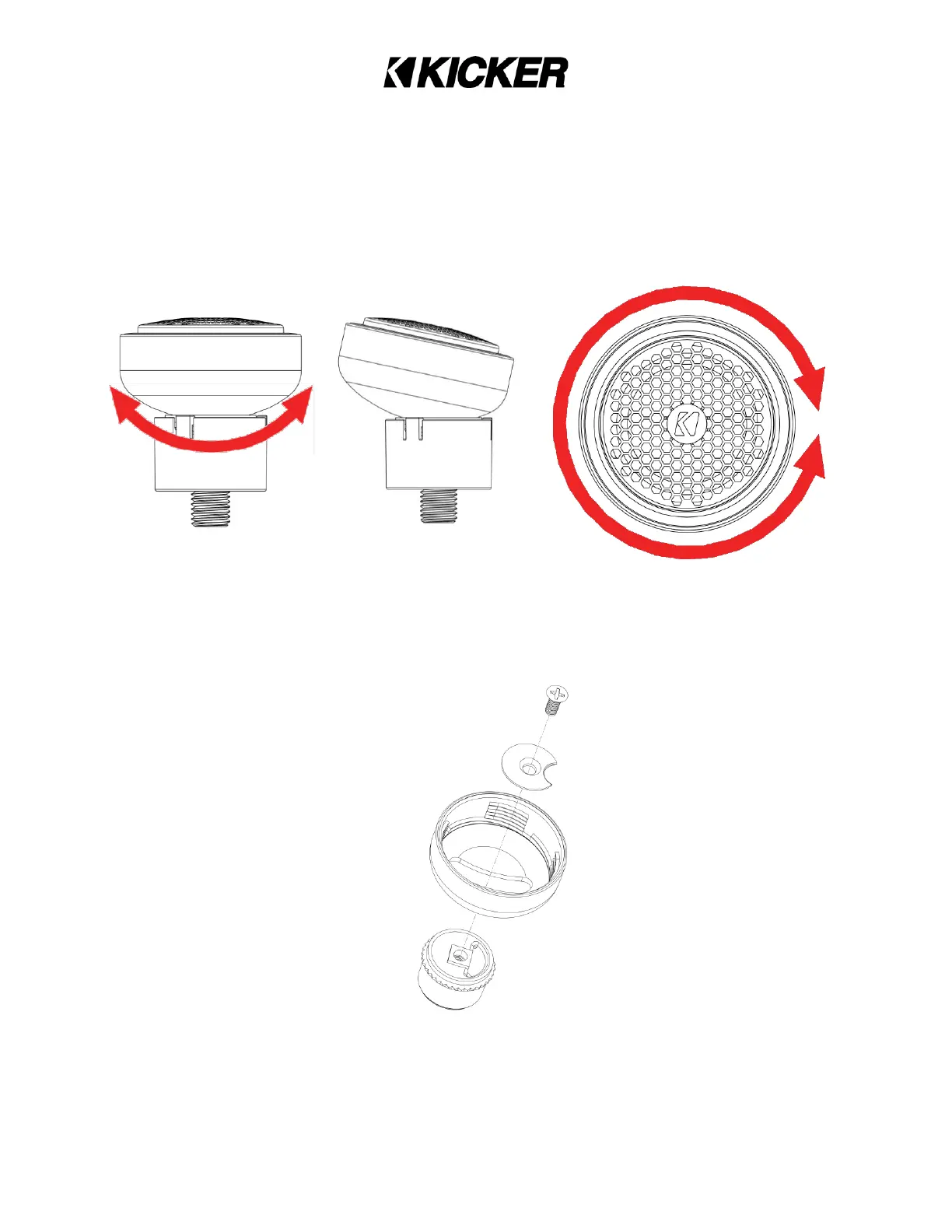

Coaxial mounting of the tweeter locates the tweeter in the center of the woofer. Using
this system provides the customer with a coaxial speaker allowing the customer to manipulate
the output direction of the tweeter. The tweeter house can pivot approximately 12 degrees
perpendicular to the axis of the post. The tweeter house can also rotate approximately 360
degrees about the axis of the post. Pivoting of the tweeter house must take place during
assembly. Rotation of the tweeter house can be manipulated any time after assembly.
1. Thread screw through the pivot washer, tweeter house, and upper tweeter post. Do not
tighten screw at this time.
