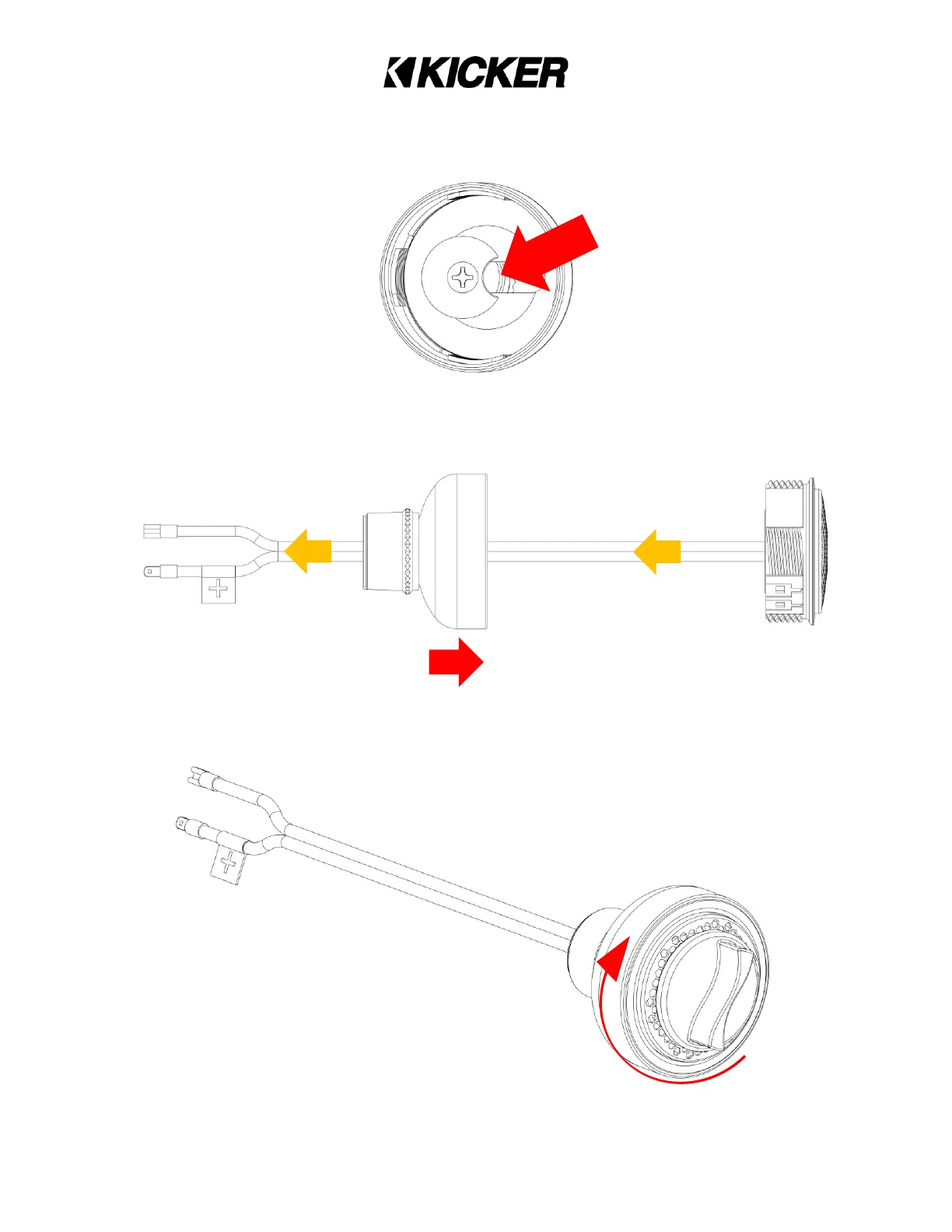

2. Pivot the tweeter house to the desired angle using care to maintain a path for the tweeter’s
speaker wire to route through the tweeter house and the upper tweeter post.
3. Tighten screw. The tweeter house should no longer pivot on the upper post.
4. Route the tweeter’s wires into the tweeter house and then through the upper tweeter post.
5. Push tweeter into tweeter house. Engage threads. Turn clockwise an eighth turn to lock
tweeter into the housing using tightening tool to grab the tweeter grille.
