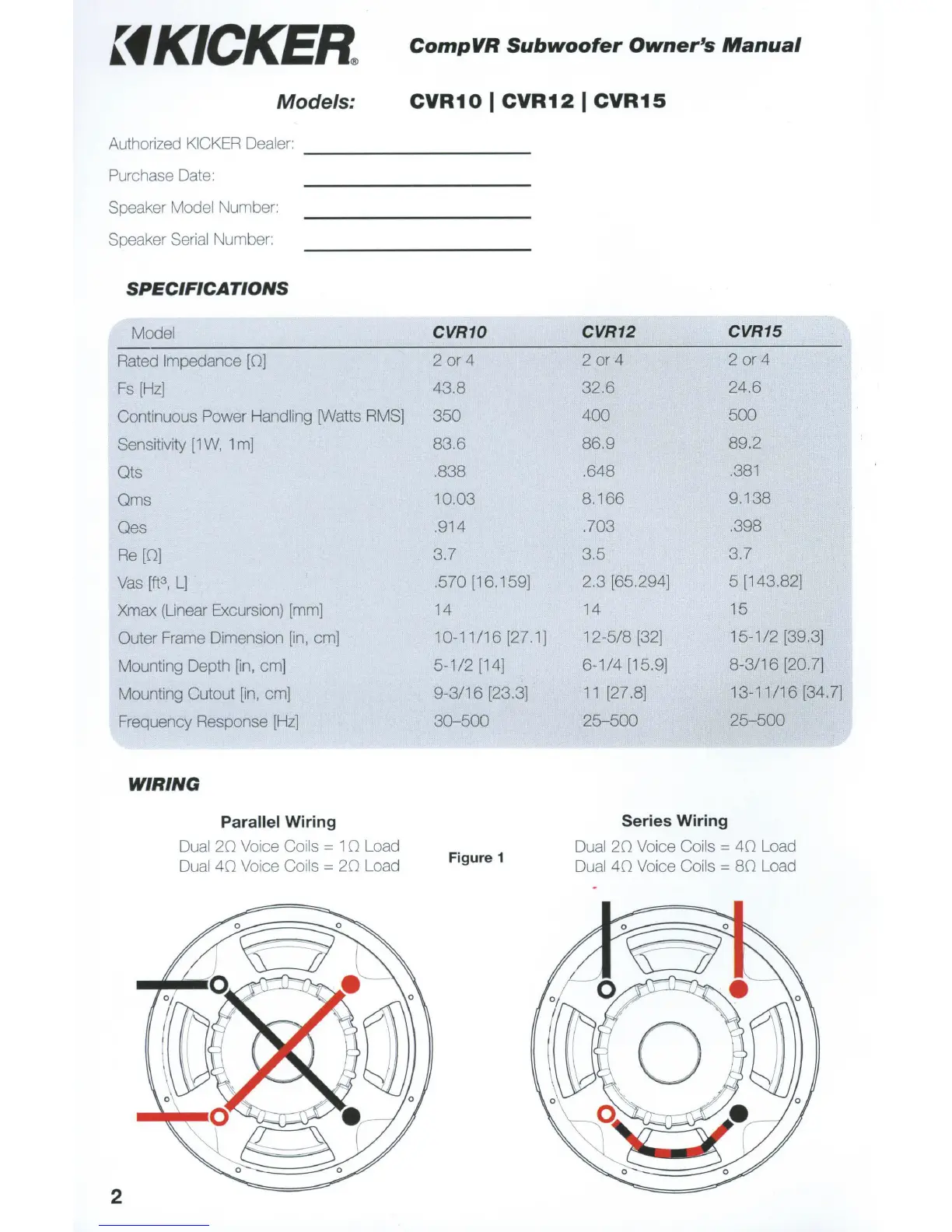

CompVR Subwoofer Owner’s Manual
Authorized KICKER Dealer:
Purchase Date:
Speaker Model Number:
Speaker Serial Number:
Model CVR10 CVR12 CVR15
Rated Impedance [Ω] 2 or 4 2 or 4 2 or 4
Fs [Hz] 43.8 32.6 24.6
Continuous Power Handling [Watts RMS] 350 400 500
Sensitivity [1W, 1m] 83.6 86.9 89.2
Qts .838 .648 .381
Qms 10.03 8.166 9.138
Qes .914 .703 .398
Re [Ω] 3.7 3.5 3.7
Vas [ft³, L] .570 [16.159] 2.3 [65.294] 5 [143.82]
Xmax (Linear Excursion) [mm] 14 14 15
Outer Frame Dimension [in, cm] 10-11/16 [27.1] 12-5/8 [32] 15-1/2 [39.3]
Mounting Depth [in, cm] 5-1/2 [14] 6-1/4 [15.9] 8-3/16 [20.7]
Mounting Cutout [in, cm] 9-3/16 [23.3] 11 [27.8] 13-11/16 [34.7]
Frequency Response [Hz] 30–500 25–500 25–500
CVR10 | CVR12 | CVR15Models:
Figure 1
Series WiringParallel Wiring
WIRING
Dual 2 Voice Coils = 4 Load
Dual 4 Voice Coils = 8 Load
Dual 2 Voice Coils = 1 Load
Dual 4 Voice Coils = 2 Load
