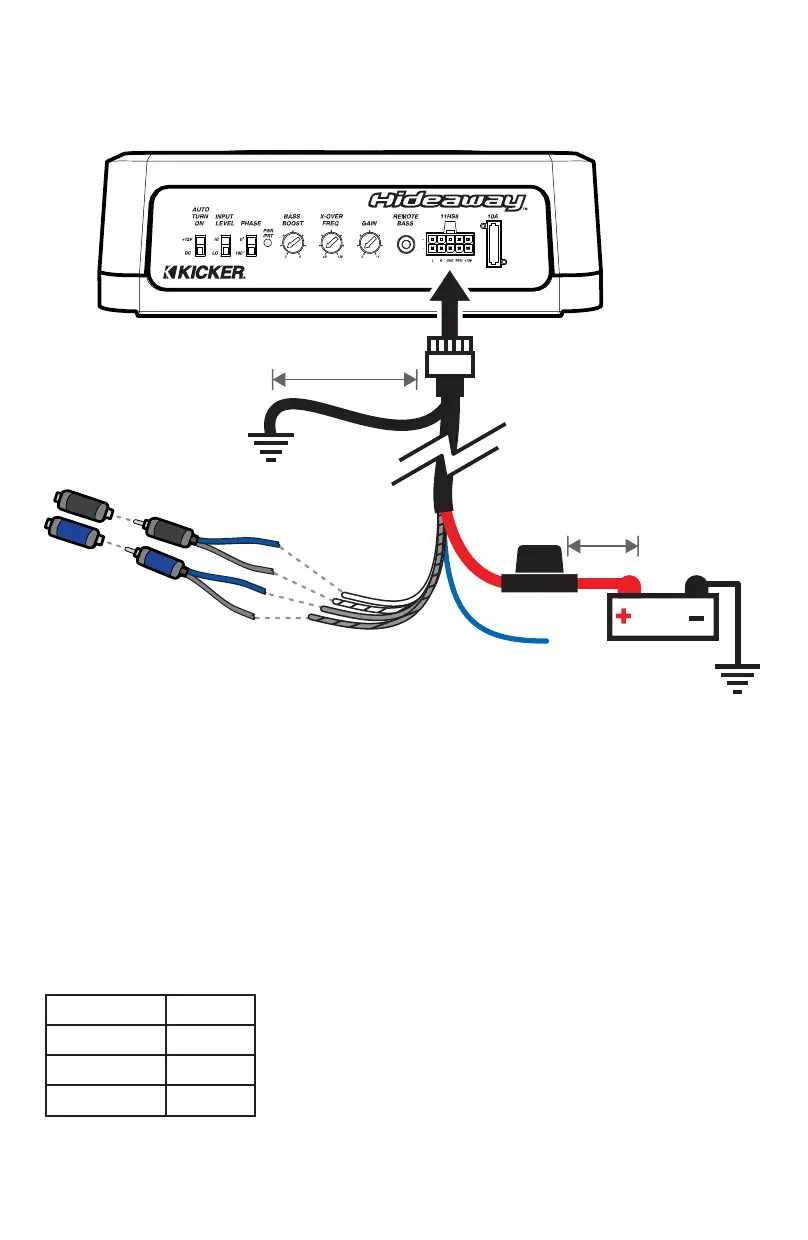

Kicker Hideaway HS8 - Wiring; Quick-Connect Harness Audio Inputs; Power and Ground Connections

4
Hideaway™
Wiring:
12V
quick-connect
harness audio inputs:
White Left +
White/Black Left –
Grey Right +
Grey/Black Right –
remote turn-on
see next page
battery
bare metal
chassis ground
bare metal
chassis ground
≤ 24” [60cm]
quick-connect
harness
15A fuse
≤18” [45cm] from positive
battery terminal
Observe the polarity of input connections to avoid signal loss.
Use the KICKER KISL for source units with RCA outputs or splice the quick-connect
harness leads directly to your source unit’s speaker-level outputs.
KICKER KISL
(sold separately)
