Kicker KX3 - System Diagram using the KX3; 2 Channel Tri-Amp Configuration; Example Crossover Settings (2 Channel); Frequency Multiplier Note for Tweeters

5
*If the tweeters used are supplied with passive crossovers which have
protection circuits built in, keep these crossover in-line to maintain
protection from burn out..
Because a dedicated tweeter amplifier is being used this system the Frequency
Multiplier switch must be set to 20x. If you are using passive crossovers on the
tweeters, it is not necessary to set the switch to 20x.
KX3 Crossover Settings
Front High Pass Crossover: 80-300Hz
Frequency Multiplier: x20 (175x20=3500Hz, 225x20=4500Hz)
Rear High Pass Crossover: 80-300Hz
Parallel Switch: ON
R
GROUND
REMOTE
TURN-ON
CONSTANT
+ 12V
To Source
RCAs
to
Tweeter
Amp
RCAs
to
Midrange
Amp
RCAs
to
Sub
Amp
REMOTE
BASS
LEVEL

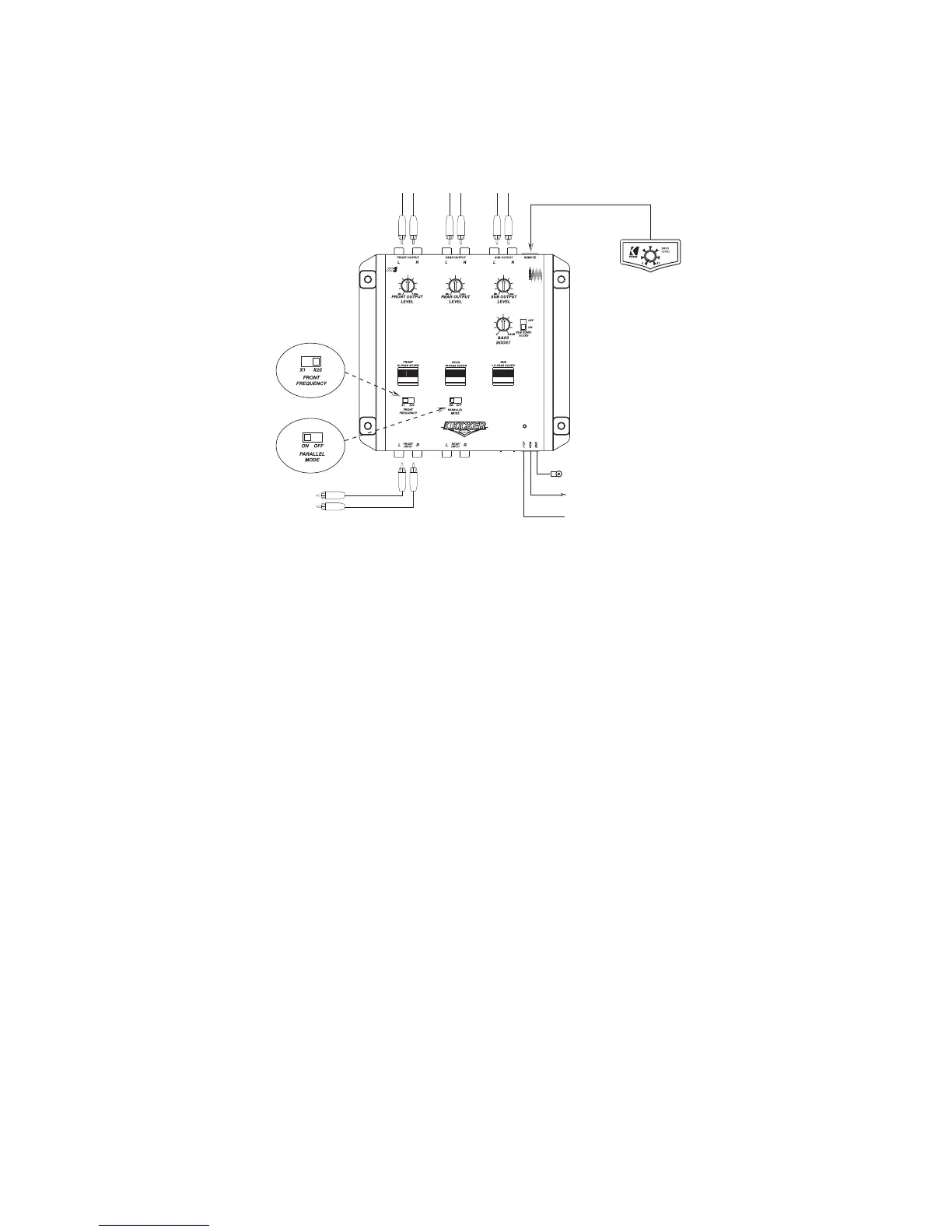

System Diagram using the KX3
2 Channel Tri-Amp Configuration:
