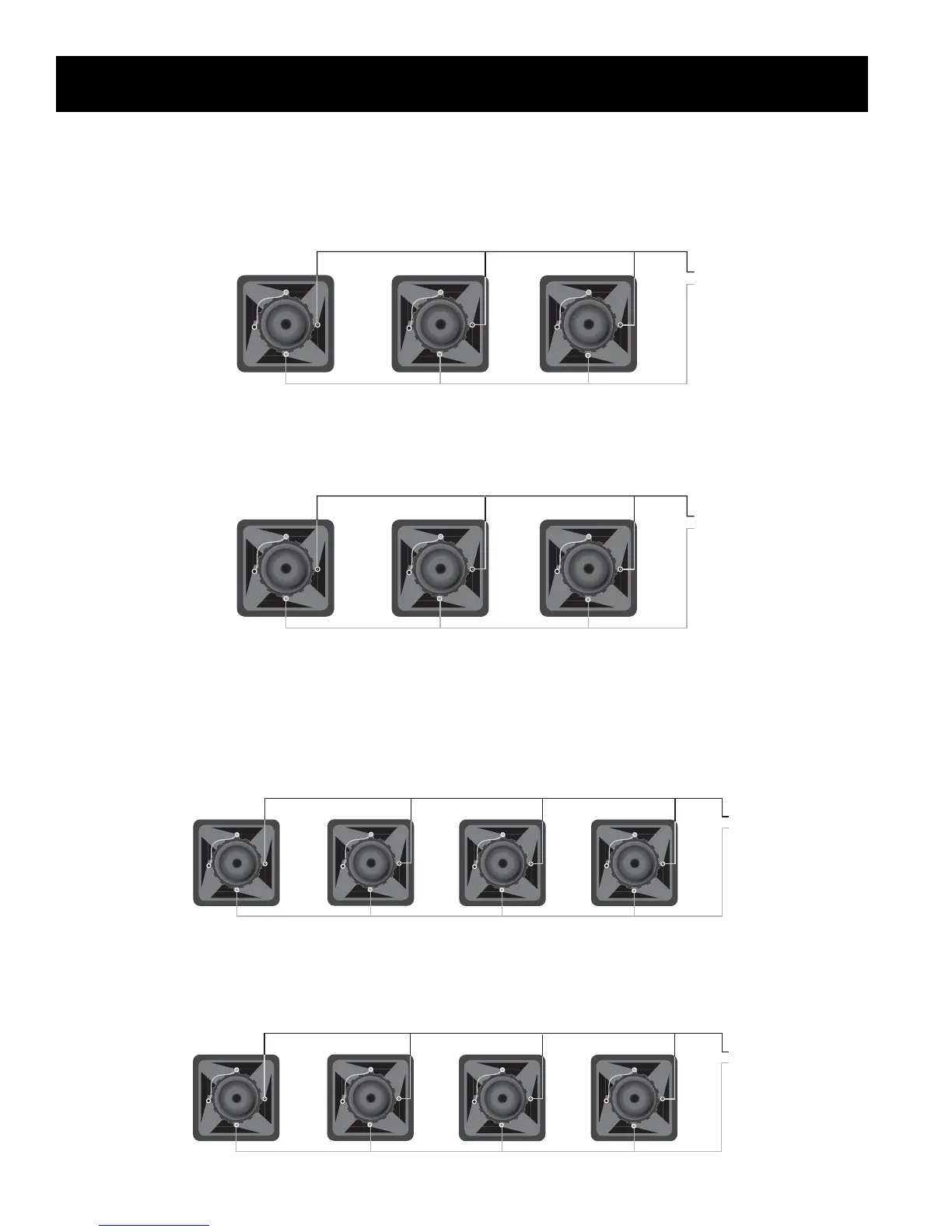

SERIES VOICE COILS / WOOFERS WIRED IN PARALLEL
Using Dual 2 Ohm Voice Coils
Using Dual 4 Ohm Voice Coils
4 4 4 = 1.33 OHM
8 8 8 = 2.66 OHM
To
Amplifier
+
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
To
Amplifier
+
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
SERIES VOICE COILS / WOOFERS WIRED IN PARALLEL
Using Dual 2 Ohm Voice Coils
Using Dual 4 Ohm Voice Coils
To
Amplifier
+
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
4 4 4 4 = 1 OHM
To
Amplifier
+
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
Red/white dot
+
Red +
Black
-
Black/
white
dot
-
8 8 8 8 = 2 OHM
Wiring Options cont.
Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications
Page 18
