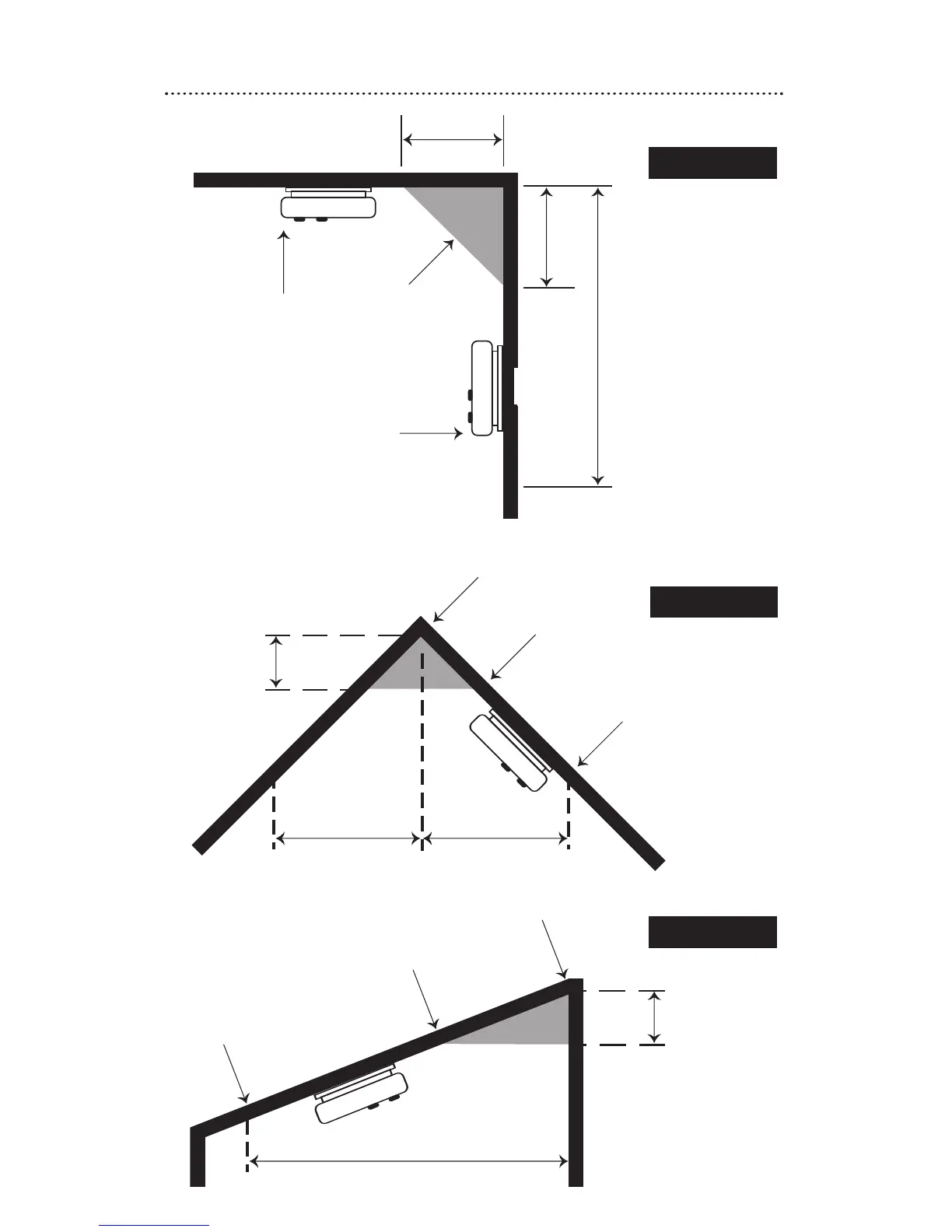

Installation
IMAGE 2A
IMAGE 2C
HORIZONTAL DISTANCE FROM PEAK
CEILING
10 cm (4”)
MINIMUM
10 cm (4”)
MINIMUM
30.5 cm (12”)
MAXIMUM
SIDE WALL
BEST
PLACEMENT
ACCEPTABLE
PLACEMENT
NEVER HERE
STAGNANT
AIR
10 cm (4”)
0.9 m (3’) 0.9 m (3’)
NOT IN
THIS AREA
ANYWHERE IN THIS
AREA
10 cm (4”)
NOT IN
THIS AREA
ANYWHERE IN THIS
AREA
0.9 m (3’)
IMAGE 2B
