Installation
Mounting
CAUTION: This unit is sealed. The cover is not removable!
NOTE: Any statements referring to a battery, applies to both
batteries used with the i9080CA.
NOTE: Any statements referring to a battery reminder tab,
applies to both battery reminder tabs used with the i9080CA.
• Remove the mounting plate from the back of the alarm by
holding the plate and twisting the alarm in the direction
indicated by the “OFF” arrow on the alarm cover.
• To ensure aesthetic alignment of the alarm with the hall-way,
or wall, the “A” line on the mounting plate should be
parallel
with the hallway when ceiling-mounted, or horiz ontal when
wall mounted (Image 3A).
• Secure the mounting plate to the wall or ceiling with the
anchors and screws provided (Image 3B).
• For aesthetic reasons, the suggested position for wall mounting
is with the button(s) facing down (Image 3C).
• Press the battery reminder tab down into the battery
compartment while inserting the battery (Image 3E).
CAUTION: If the battery reminder tab is not held down in the
battery compartment by the battery, the battery door will not
close and the unit will not attach to the mounting plate.
• Alignment marks are provided on the edge of the mounting
plate and the alarm. After installing the mounting plate, place
the alarm onto the mounting plate, making sure the alignment
marks are lined up. Twist the alarm in the direction indicated by
the “ON” arrow on the alarm cover (Image 3D) until it locks
in place.
7

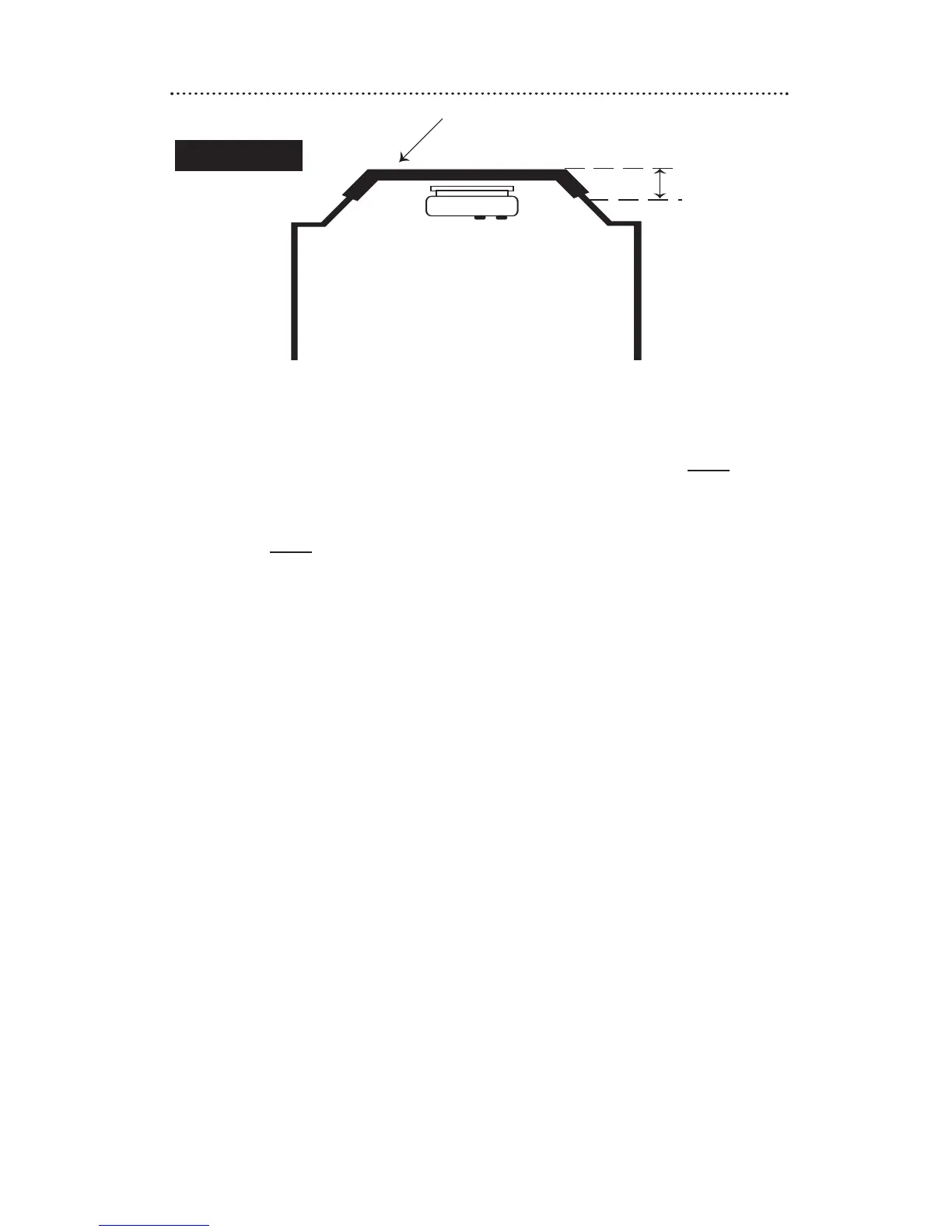

ANYWHERE IN THIS
