Kimball Senator - Drawer Front Adjustment

Casegoods Assembly Instructions
President/Senator
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 1741546 Revision A-05
Page 2 of 2
Installation (continued)
6. If drawer front needs adjustment, open drawer and locate
the four (4) Deerwood screws that attach the drawer front
to the drawer box. (Figure E).
Note: Lateral file drawer fronts use six (6) screws.
7. Slightly loosen Deerwood screws and adjust drawer front
to the approximate locations and gaps shown. (Figure F).
Re-tighten all Deerwood screws. Repeat Steps 6 and 7 to
adjust other drawers in unit.

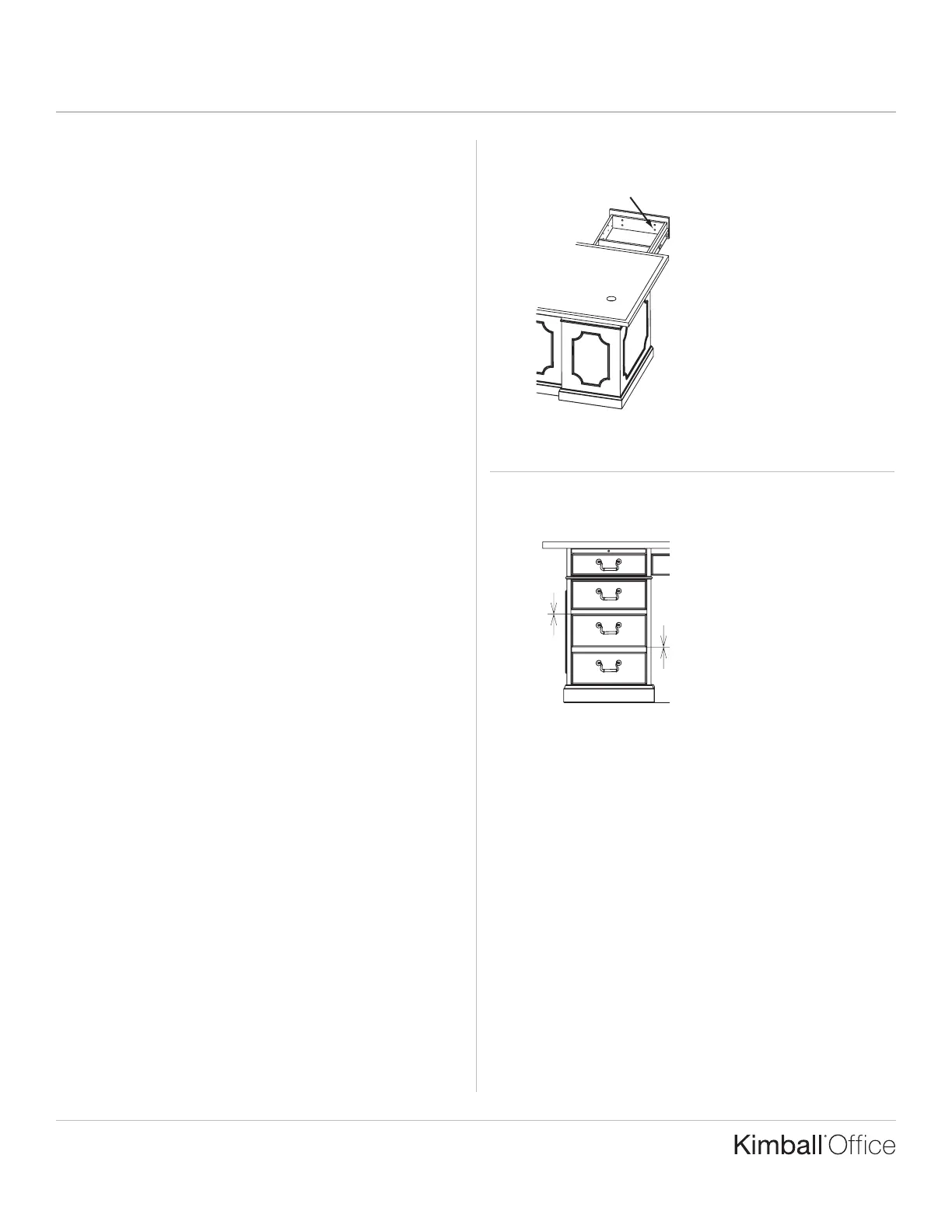

Figure E
Figure F
3
⁄
16
" gap
3
⁄
16
" gap
Printed in U.S.A. © 2005 Kimball International, Inc. T 800.482.1818 F 812.482.8300
Deerwood Screws (4)
