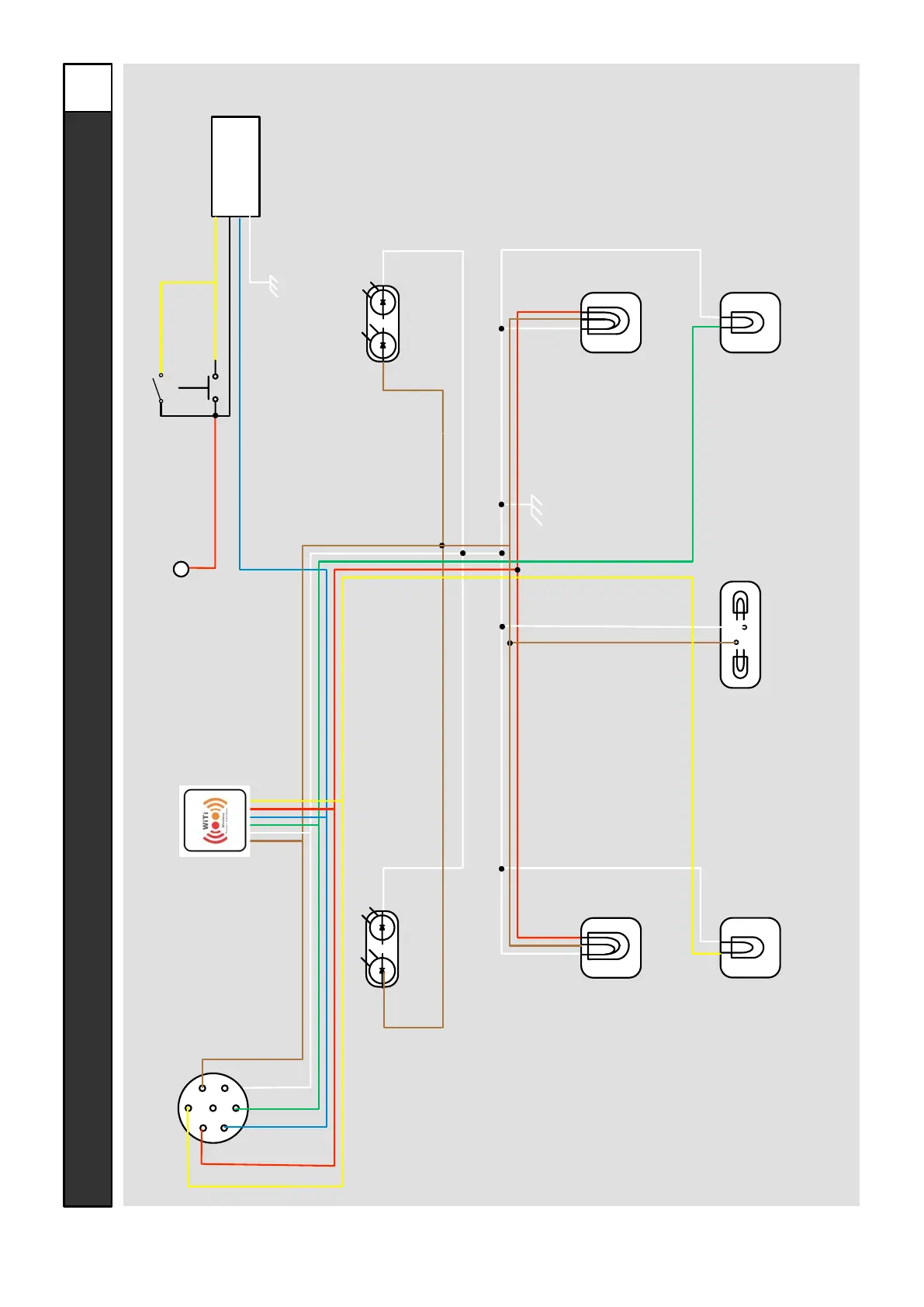

Kimberley KARAVAN 2021 - 12 V Electrical Circuits - Lighting and Brakes; Lighting and Braking Circuits (5;8)

85
©2021 Kimberley Kampers Manufacturing Pty Ltd
MAKE AUS!!! 2021 Kimberley Karavan - 12V Electrical Circuits
Model: ALL | Date: 31.08.2021
5/8
1 4
5 6
2 3
7
NC
LT
Stop
Brake
RT
Gnd
Tail
RH Clearance LightLH Clearance Light
Number Plate light
Right Indicator
LH Tail/Brake Light
Left Indicator
RH Tail/Brake Light
Tail & Clearance Lights
WiTi (Where Fitted)
Carlisle Electronic
Brake Unit
Power from Batteries
F
Manual Brake
Actuator
Breakaway
Switch
