Kimberley KARAVAN 2021 - 12 V Electrical Circuits - Canopy and Media; Canopy and Media Circuits (6;8)

86
©2021 Kimberley Kampers Manufacturing Pty Ltd
Canopy

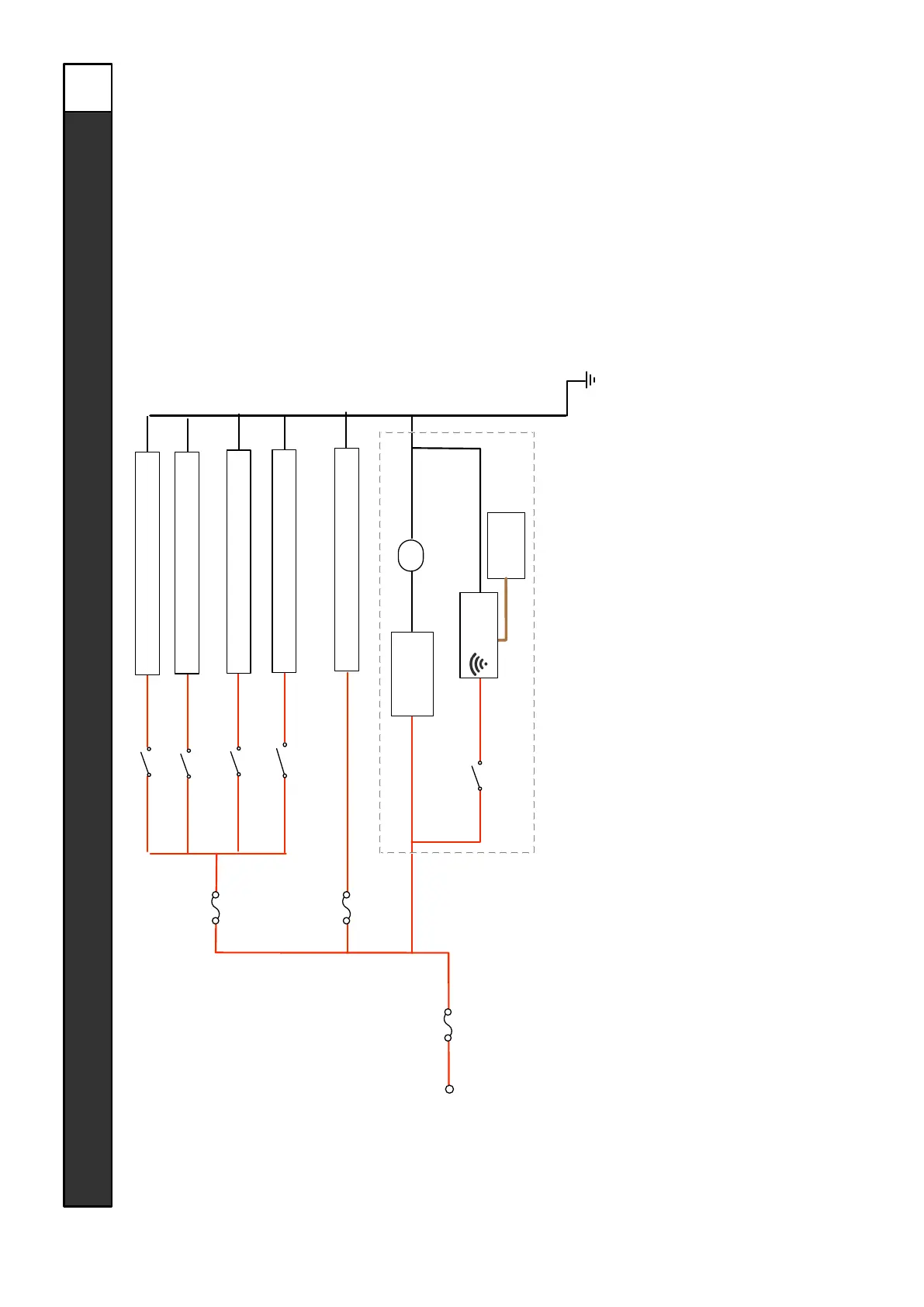

2021 Kimberley Karavan - 12V Electrical Circuits
Model: ALL | Date: 31.08.2021
6/8
Top Left Switch
Bottom Left Switch
Top Right Switch
Bottom Right Switch
‘CANOPY’
Circuits
Power
from
SHUNT
’SCQ25T’
F
Cooktop Light
Sink Light
Seating Lights
Dining Light
12V Outlet
6.5dB Antenae
System
(if fitted)
4G Internet
Modem
(if fitted)
( )
Media Player
25A Fuse
(Rear Frame)
10A Fuse
(Inside Canopy
Console)
15A Fuse
(Inside Canopy
Console)
Fans
Media Dash
