7

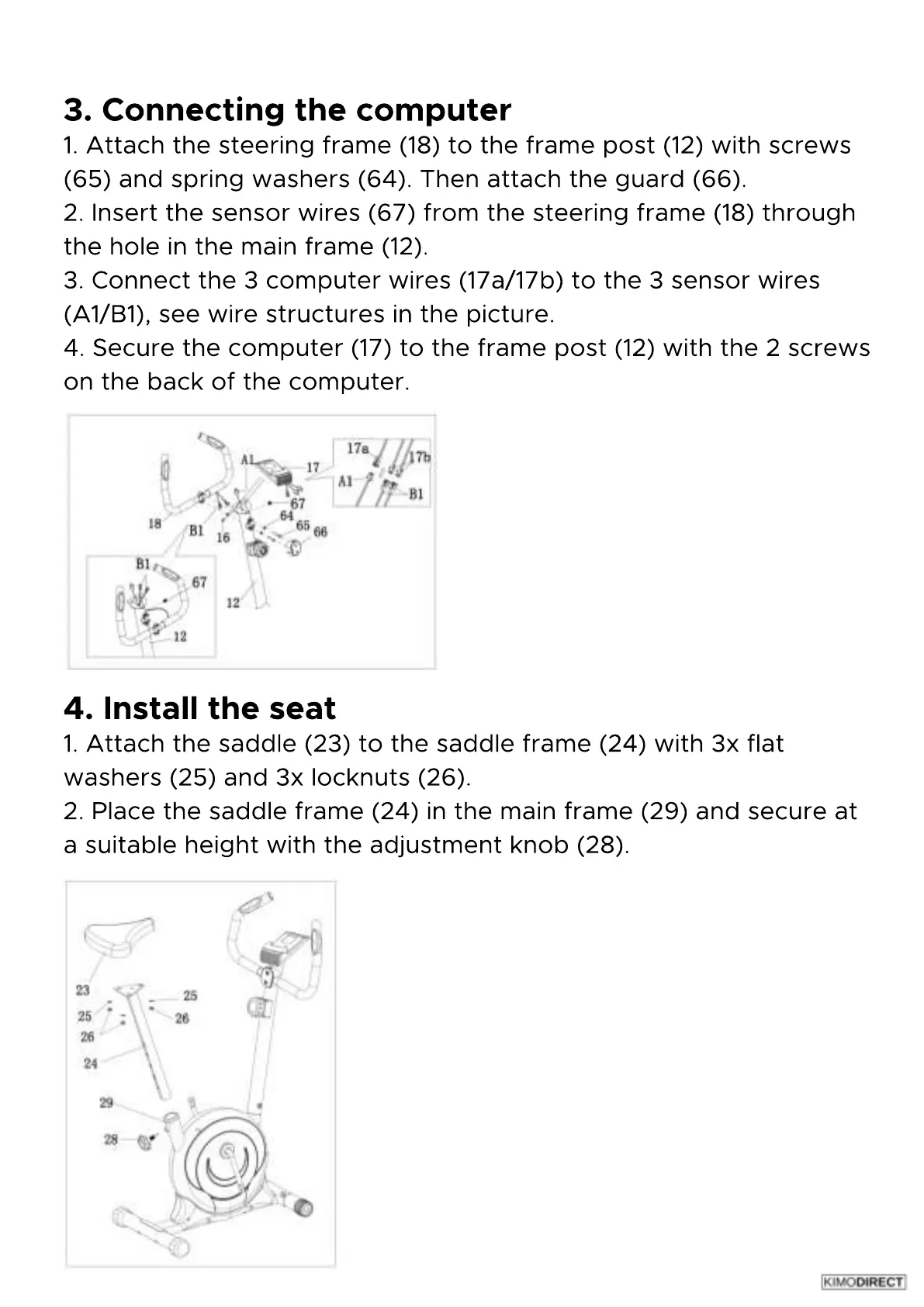

1.
Attach
the
steering
frame
(18
)
to
the
frame
post
(12
)
with
screws
(65
)
and
spring
washers
(64
)
.
Then
attach
the
guard
(66
)
.
2.
Insert
the
sensor
wires
(67
)
from
the
steering
frame
(18
)
through
the
hole
in
the
main
frame
(12
)
.
3.
Connect
the
3
computer
wires
(17a/17b
)
to
the
3
sensor
wires
(A1/B1
)
,
see
wire
structures
in
the
picture.
4.
Secure
the
computer
(17
)
to
the
frame
post
(12
)
with
the
2
screws
on
the
back
of
the
computer.
3.
Connecting
the
computer
1.
Attach
the
saddle
(23
)
to
the
saddle
frame
(24
)
with
3x
flat
washers
(25
)
and
3x
locknuts
(26
)
.
2.
Place
the
saddle
frame
(24
)
in
the
main
frame
(29
)
and
secure
at
a
suitable
height
with
the
adjustment
knob
(28
)
.
4.
Install
the
seat
