INSTALLING AND OPERATION FOR VACUUM FUNCTION

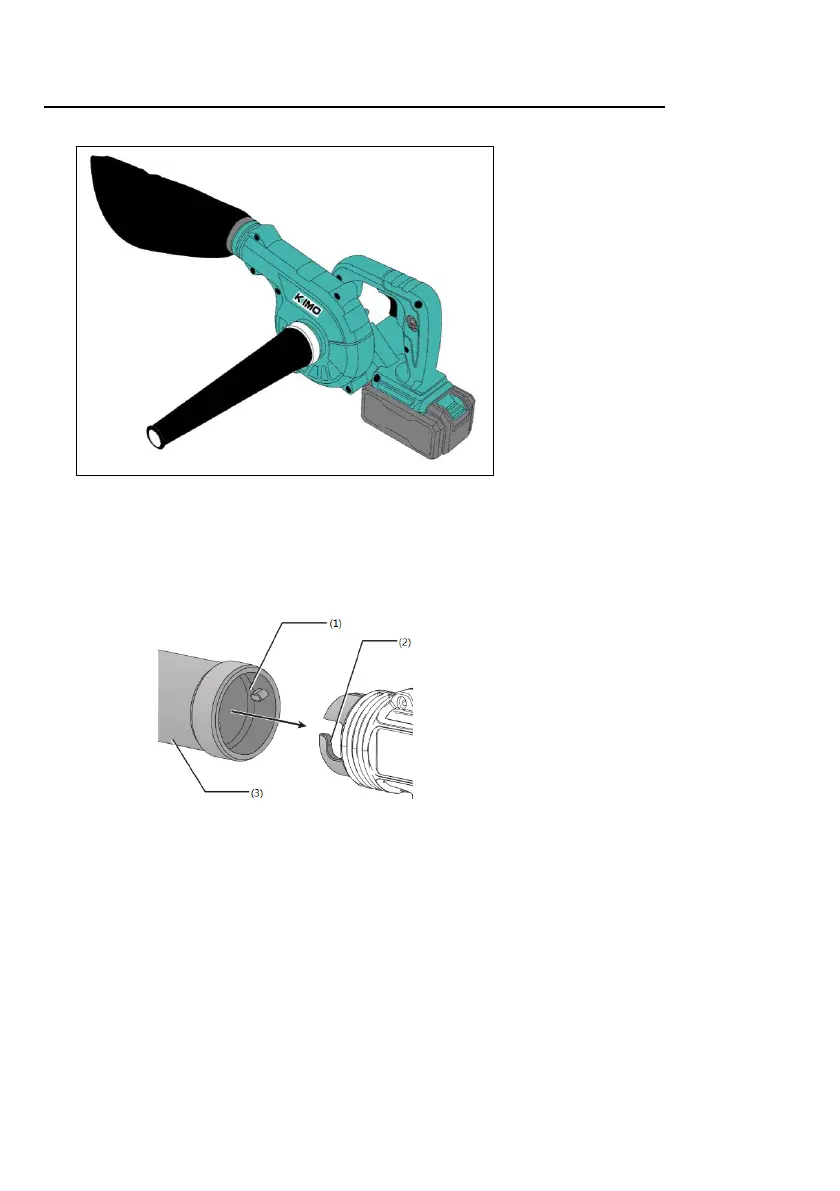

1. Connect the blow tube to the air inlet:
Line up the pegs(1) on the inside of the blow tube(3) with the notches(2) of the
housing opening as shown in below picture, make sure the installation is firm.
(1) Pegs of White Ring (2) Notches of Air Inlet （3）Blow Tube
2. Connect the collection bag to the air outlet, make sure the installation is
firm.
3. Install the battery to the blower:
Insert battery pack into tool until an audible click is heard as shown in picture.
Make sure battery pack is fully seated and fully latched into position.
4. Press the trigger switch to start sucking dust and control the vacuum
power.
