MOUNTING INSTRUCTIONS
MOUNT PLATE FOR “CLICK N GO 2” SNOW PLOW FRAME
KIMPEX NO. 373951-8
Grizzly
KIMPEX INC. / 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA / 100 Walnut Street / Champlain, New York / 12919
A-7815010-8 • Imprimé au Canada / Printed in Canada
3

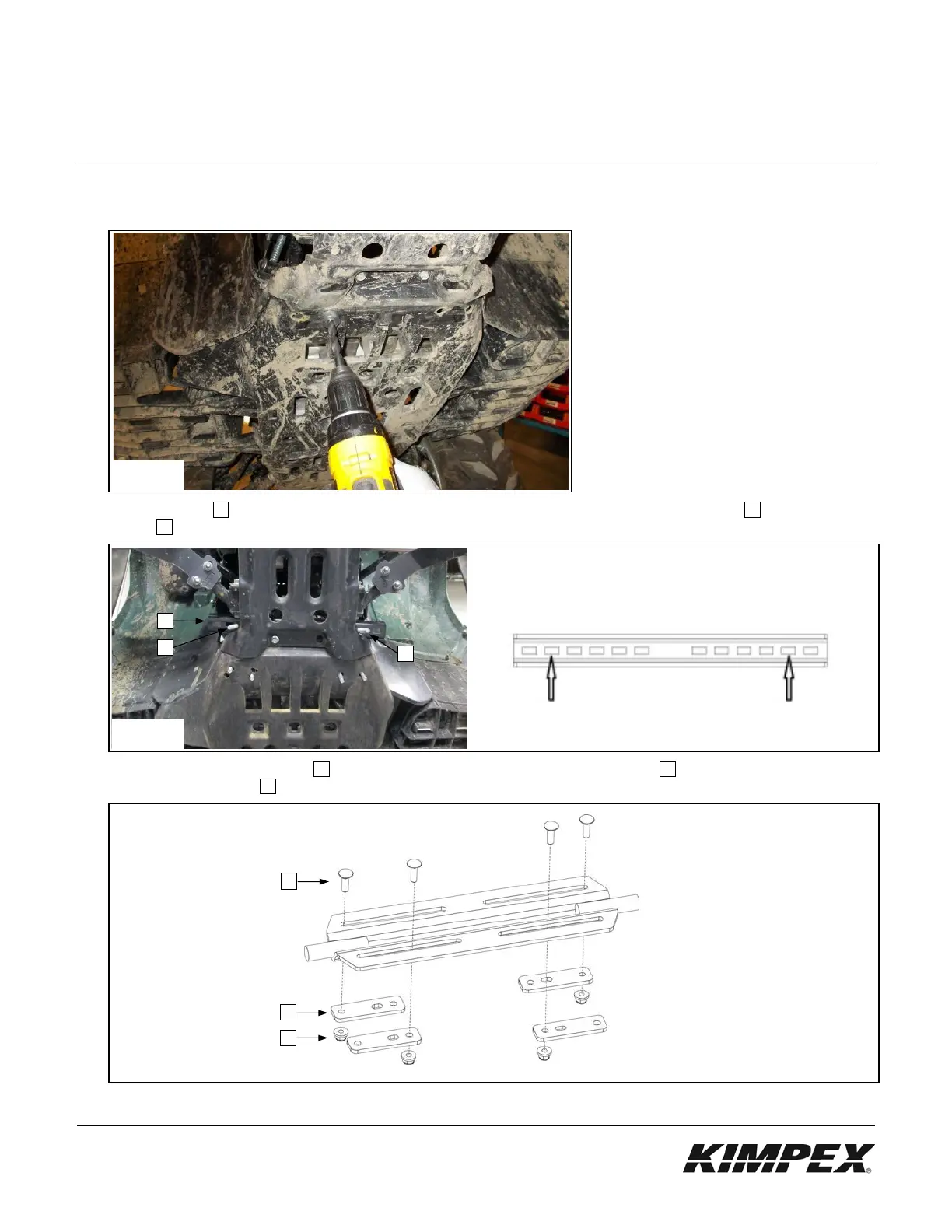

4) Drill the mounting holes using the drilling tool for this purpose (Kimpex Product No. 373920) (see Figure 4). If you do
not have the tool, remove the skid plates and drill with a drill bit of ½ inch. Reinstall the skid plates afterwards.
5) Pass the flat bar 05 through the frame and secure it using two (2) M8-1.25 x 60 mm carriage bolts 01
. Pass two (2)
U-bolts 07 through pre-drilled holes (see Figure 5).
6) Pre-assemble the locking plates 06 using the four (4) M8-1.25 x 25 mm carriage bolts 02 and four (4) M8-1.25
self-locking flange nuts 03 (see Figure 6). Do not tighten at this step.
Fig.
6
02
06
03
Fig.
5
Holes to be used
05
01
01
Fig.
4
