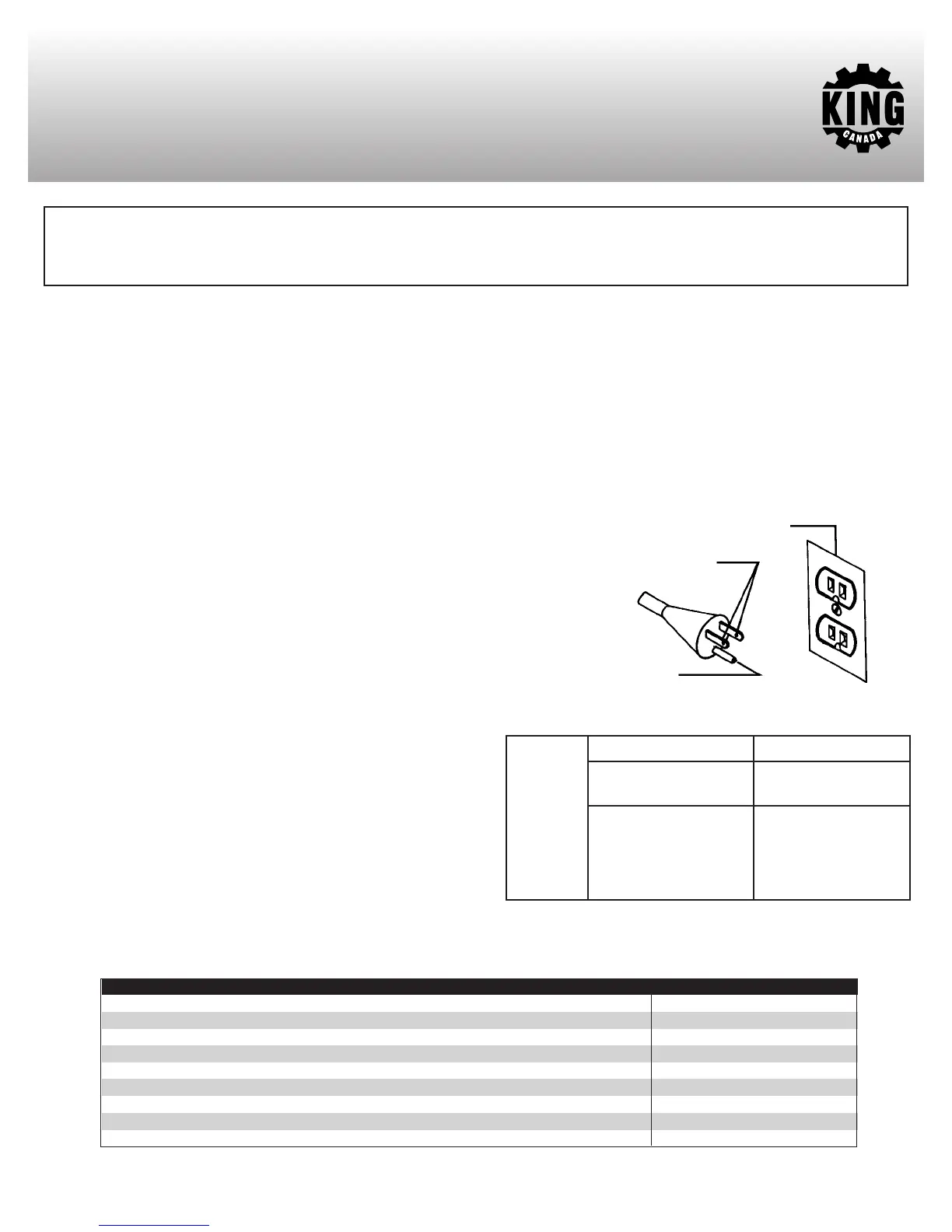

ELECTRICAL INFORMATION
& SPECIFICATIONS
WARNING!
A
LL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN
SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE LOG SPLITTER DISCONNECTED FROM THE
POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY!
FIGURE 2
Tool’s
Amperage
Rating
3-6
6-8
8-10
10-12
12-16
Cord Size in A.W.G.
Cord Length in Feet
25 50 100 150
18 16 16 14
18 16 14 12
18 16 14 12
18
16 14
12
14 12
-
-
Wire Sizes in mm
2
Cord Length in Meters
15 30 60 120
.75 .75
1.5
2.5
.75
1.0
2.5 4.0
.75 1.0 2.5 4.0
1.0 2.5 4.0 -
-
-
-
-
KC-5LS POWER SUPPLY (110V-1 PHASE)
WARNING:
THIS LOG SPLITTER MUST BE CONNECTED TO A
110V, 15-AMP, BRANCH CIRCUIT. FAILURE TO CONNECT IN THIS
WAY CAN RESULT IN INJURY FROM SHOCK OR FIRE.
110V OPERATION
As received from the factory, your log splitter is wired for 110V
operation and is intended for use on a circuit that has an outlet and a
plug which looks like the one illustrated in Fig.1.
GROUNDING
This log splitter must be grounded. If it should malfunction or
breakdown, grounding provides a path of least resistance for electric
current, to reduce the risk of electric shock. This log splitter must be
equipped with a cord having an equipment-grounding conductor and
grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local
codes and ordinances.
Not all outlets are properly grounded. If you are not sure if your
outlet is properly grounded, have it checked by a qualified electrician.
WARNING: IF NOT PROPERLY GROUNDED, THIS LOG
SPLITTER CAN CAUSE ELECTRICAL SHOCK, PARTICULARLY
WHEN USED IN DAMP LOCATIONS. TO AVOID SHOCK OR FIRE,
IF THE POWER CORD IS WORN OR DAMAGED IN ANY WAY,
HA
VE IT REPLACED IMMEDIATELY.
W
ARNING:
T
O MAINTAIN PROPER GROUNDING OF YOUR LOG
SPLITTER, DO NOT REMOVE OR ALTER THE GROUNDING
PRONG IN ANY MANNER.
WARNING: DO NOT USE A TWO-PRONG ADAPTOR FOR THEY
ARE NOT
IN
ACCORDANCE WITH LOCAL CODES AND
ORDINANCES. NEVER USE IN CANADA.
EXTENSION CORDS
The use of any extension cord will cause some loss of power. Use the
following table to determine the minimum wire size (A.W.G-American
Wire Gauge) extension cord. Use only extension cords which accept
the tool’s plug.
For circuits that are further away from the electrical
circuit box, the wire
size must be increased proportionately in order to deliver ample
voltage to the motor. Refer to Fig.2 for wire length and size.
PROPERLY GROUNDED OUTLET
CURRENT CARRYING
PRONGS
GROUNDING PRONG
FIGURE 1
Motor
15 Amp.
MODEL
KC-5LS
Log Capacity
20-1/2” x 12”
Splitting Force (Ton) 5
Hydraulic Oil Capacity 3.2 L
Hydraulic Pressure
16 MPa
Cycle Time (For
wards/Backwards in seconds)
10/15
Voltage 110V, 1 phase, 60 Hz
Dimensions (LxWxH) 36” x 12” x 19”
Weight 105 LBS
