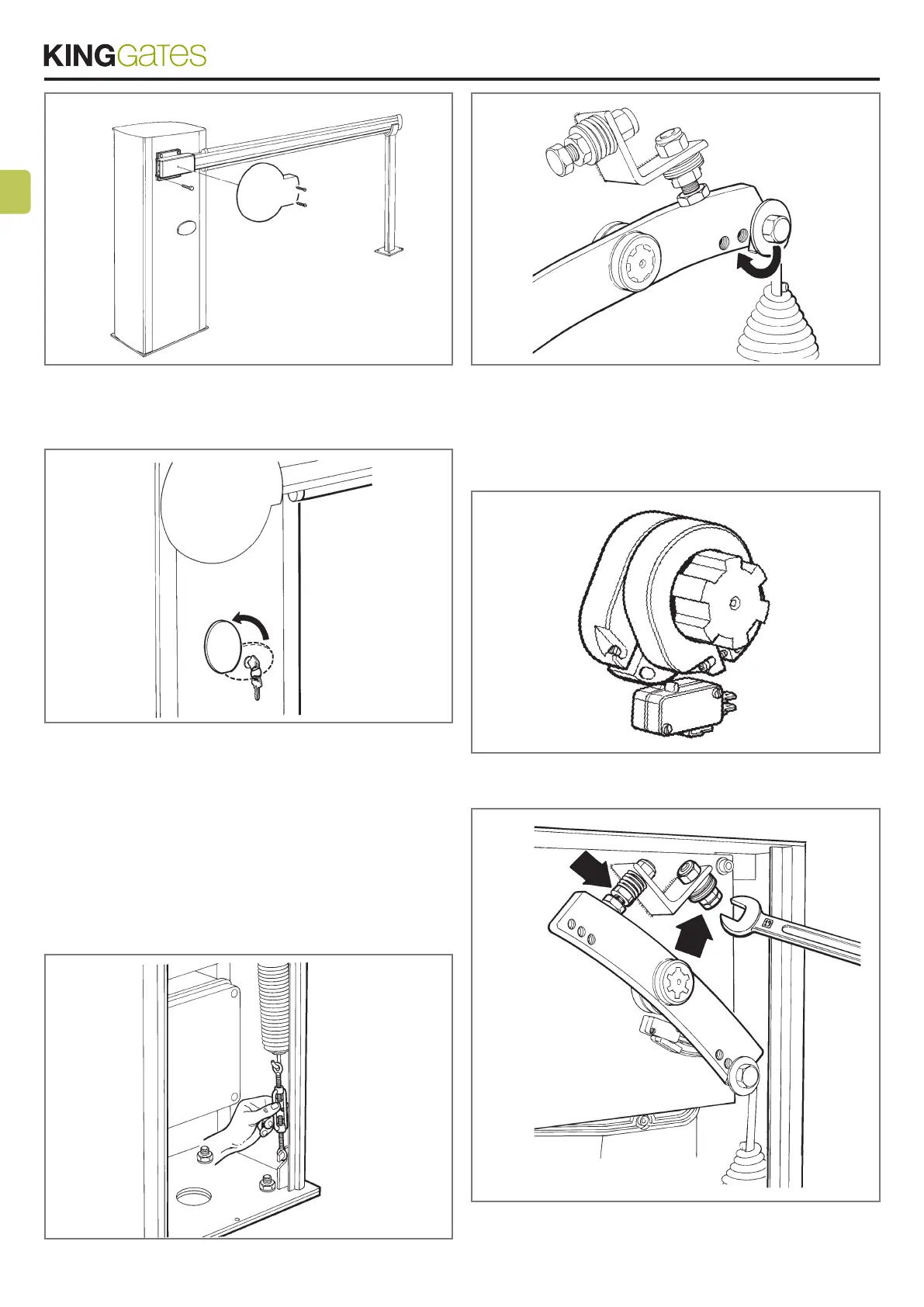

1.4 - Manual release
01. Raise the lock cover.
02. Insert the key and turn it clockwise (g. 10).
WIL
10
1.5 - Balancing
Correct balancing is essential if the boom gate is going to work prop-
erly.
Rectify balancing only when the bar is mounted and with all the ac-
cessories installed (if any).
Manually release the boom (g. 9 - 10) and adjust the spring tie-rod
(g. 11). The boom is properly balanced when it stays at an angle of
45° without falling or rising. If you are using a very short bar without
any accessories, the power of the spring will be far too strong: in this
case connect the spring to the 2nd hole of the gearmotor output
lever, g. 12.
WIL
11
WIL
12
1.6 - Adjustments
Slowing down is electronically carried out on the control unit (see
instructions enclosed).
The point at which the bar starts slowing down can be adjusted sep-
arately in opening and closing via the two eccentrics (g. 13).
13
For optimal slowing down, adjust the two stop shock absorbers with
a 19 mm wrench (g. 14).
