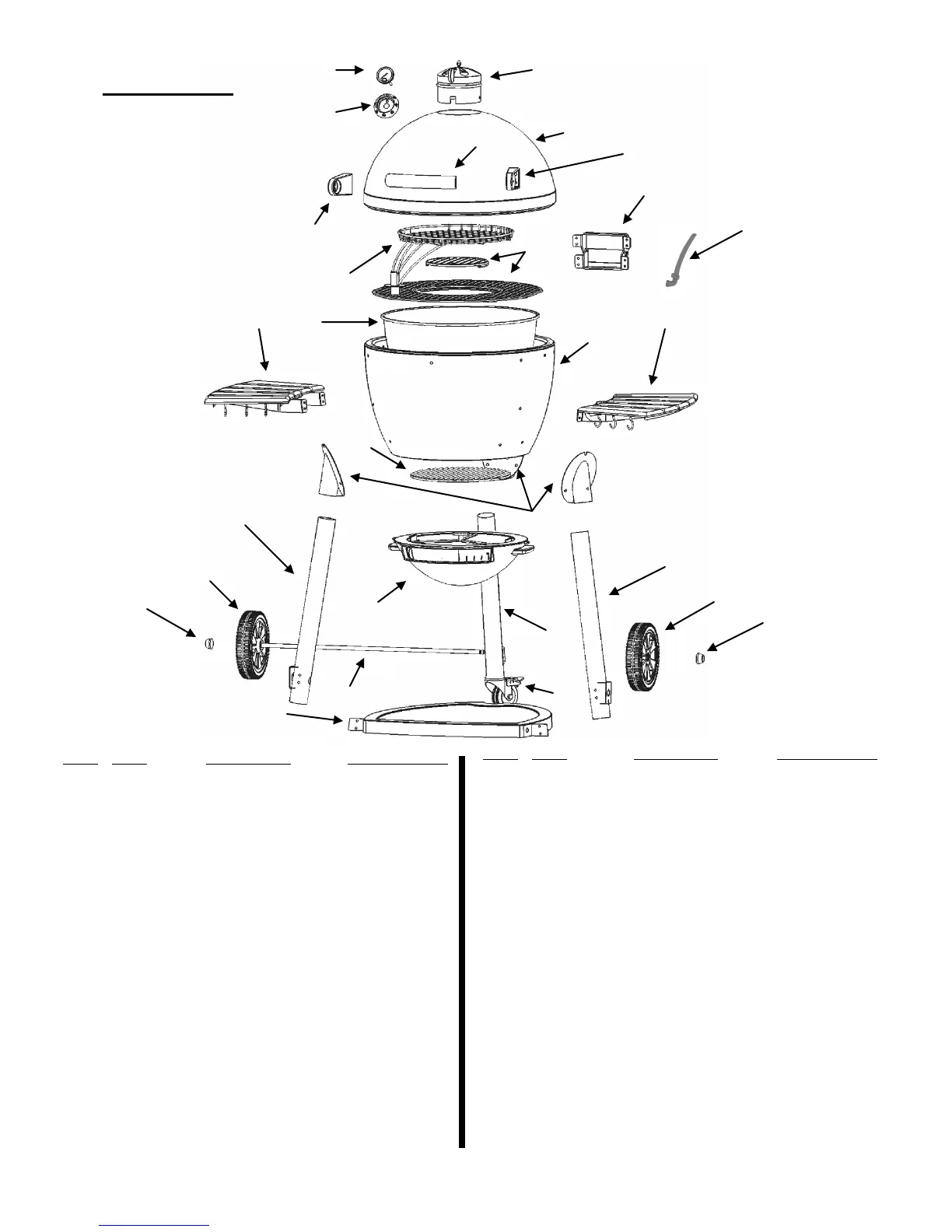

King-Griller 16619 - Parts List

OM16619A.1 ™ & © Char-Griller / A&J Mfg. 4
Item QTY. Part Name Part Number
13 1 WARMING RACK 20-0041
14 1 GRATE LIFTER 10-0045
15 1 FIRE GRATE 20-0042
16 1 FIRE BOWL 10-0046
17 1 ASH PAN 30-0028
18 3 LEG BRACKET 20-0044
19 1 LEFT FRONT LEG 20-0045
20 1 RIGHT FRONT LEG 20-0046
21 1 REAR LEG 20-0043
22 1 AXLE 10-0048
23 2 WHEEL, 8 INCH 55-0006
24 1 WHEEL, 3 INCH CASTER 55-0011
25 1 BOTTOM SHELF 20-0051
26 2 HUB CAP 55-0007
Item QTY. Part Name Part Number
1 1 THERMOMETER 55-0012
2 1 BEZEL 10-0058
3 1 STACK DAMPER 30-0018
4 1 HOOD 30-0025
5 1 HOOD HINGE 30-0026
6 1 GRILL BODY 30-0027
7 1 LOGO PLATE 10-0042
8 1 HOOD HANDLE 10-0043
9 1
RIGHT HANDLE BRACKET
10-0082
10 1
LEFT HANDLE BRACKET
10-0059
11 2 SIDE SHELF 30-0022
12 1 COOKING GRATE SET 30-0023
1
2
3
4
5
6
8
9
11 11
12
13
16
17
18
19
20
21
22
23
23
24
25
26
26
15
14
Parts List
10
