OM16619A.1 ™ & © Char-Griller / A&J Mfg. 8
Step 8

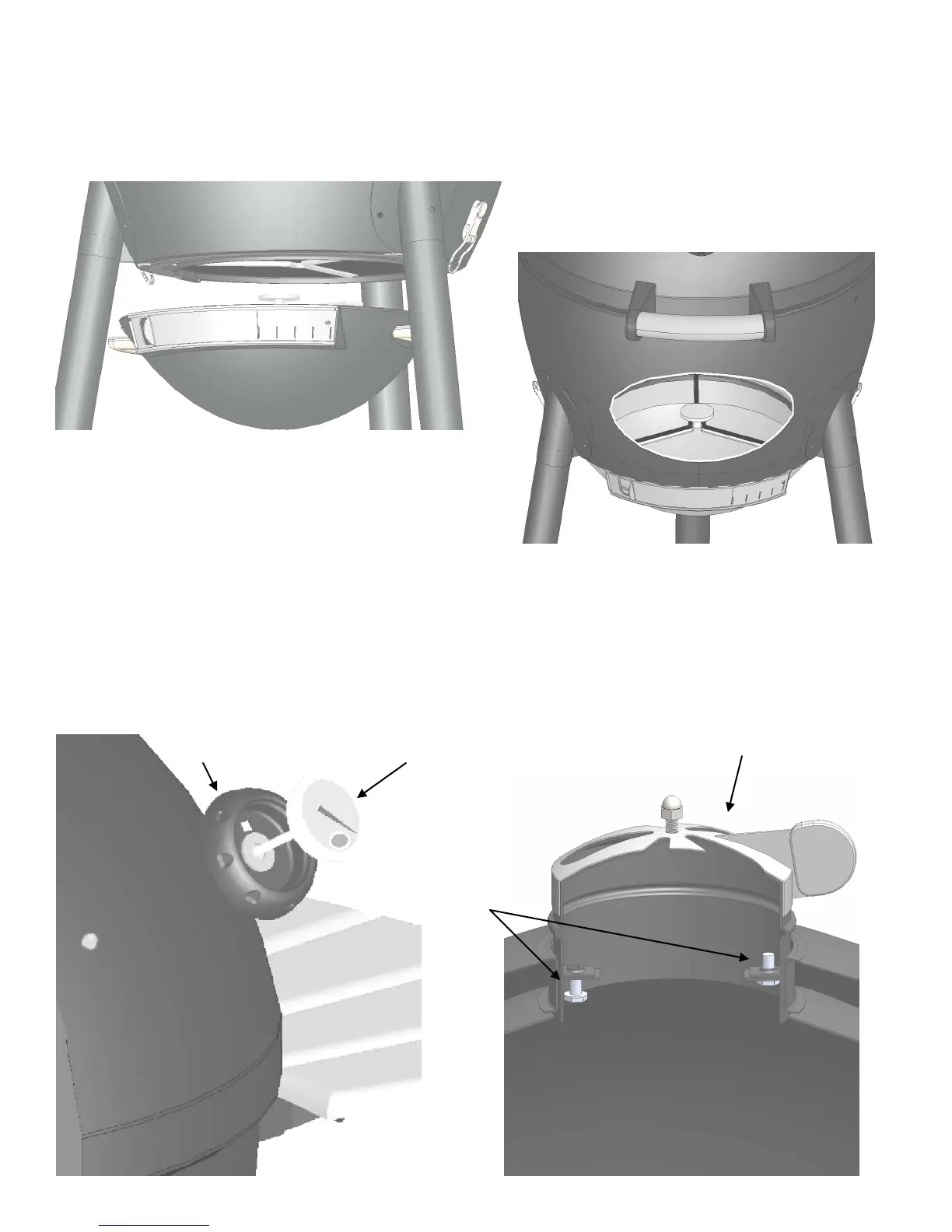

To install ASH PAN, hold ASH PAN up against the bottom of the GRILL BODY from the front
with the center pin on the inside. Slide the ASH PAN back and use clips on the sides of the
grill to snap into position as shown.
Step 9
Install DAMPER with two (2) 1/2 inch bolts from inside the HOOD. Damper coating will
scratch with use. This does not affect the function or performance of the damper. Next,
install THERMOMETER and BEZEL with wing nut, as shown below. Make sure to calibrate
the thermometer first, see page 11.
Damper
Thermometer Bezel
Hex Bolt
To Next Page
