25

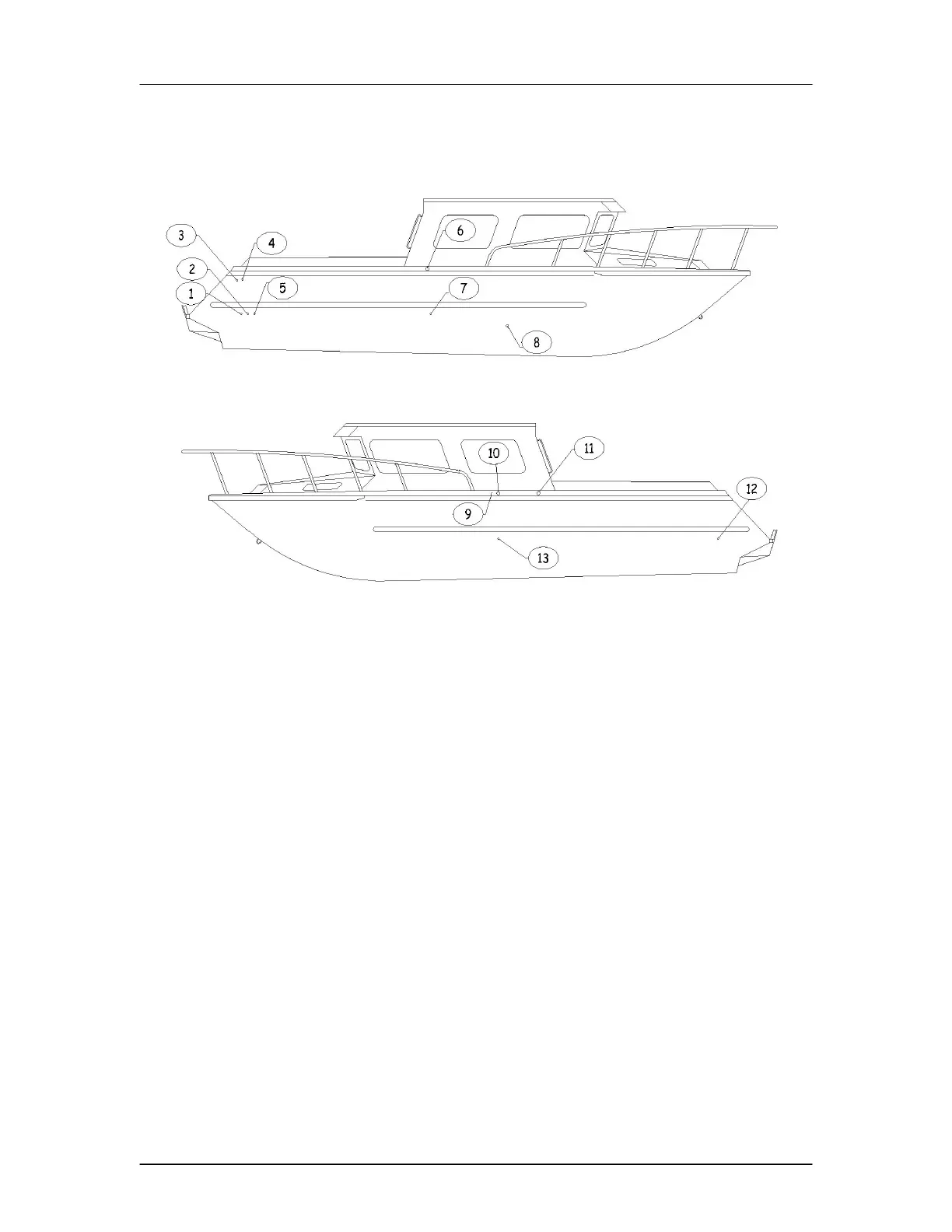

28’ / 30’ Thru-Hull layout
1. Baitwell drain
2. Fish box macerator discharge
3. Main bilge pump discharge
4. Secondary bilge pump discharge
5. Livewell drain
6. Fresh water deckfill
7. Cabin bilge pump discharge
8. Sink drain
9. Grey water tank vent
10. Grey water pump out
11. Fuel fill
12. Starboard side fish box macerator
13. Grey water overboard discharge
IMPORTANT: Check with the Coastguard and local authorities prior to the discharging of
grey water overboard.
NOTE: Through hull location may vary due to individual options selected.
