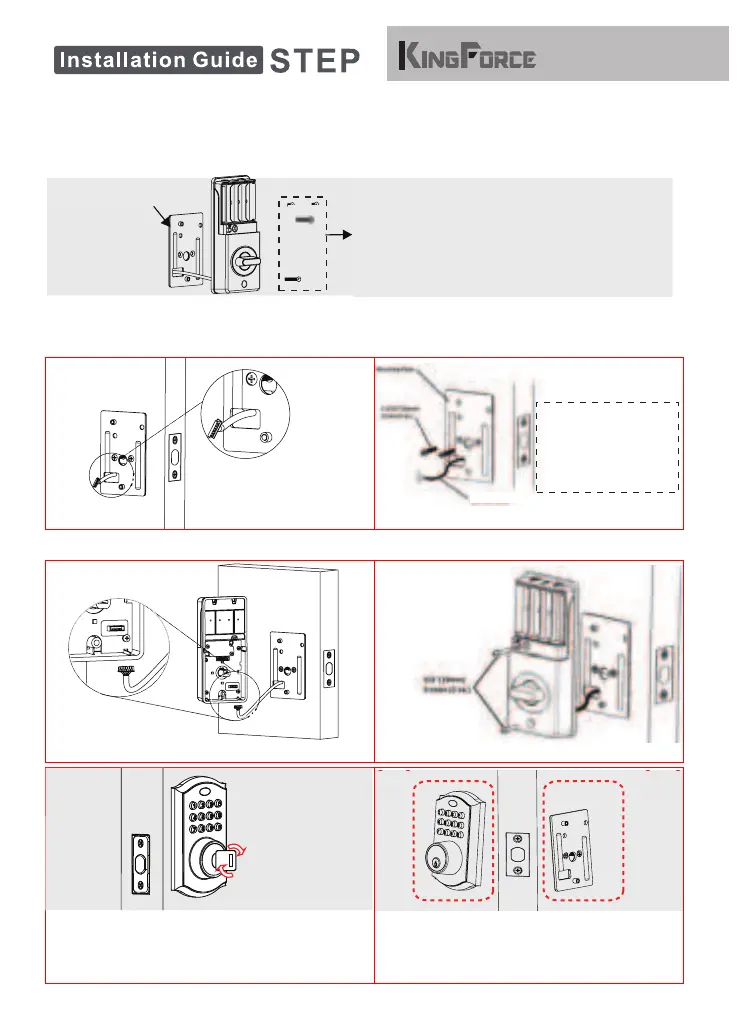

Install the interior assembly
0
5
2. Route cable through the
bottom of mouting plate.
1. Take off the mounting plate.
4. Ensure tight cable connection.
3. Tighten screws evenly.
5. Tighten screws evenly.
Loose the 2 screws
Note:
please support
exterior assembly
during mounting
plate installation.
Insert key and test latch.
if latch does not extend or retract smoothly.
please adjust mounting plate screws.
If the keypad and mounting plate are
deflection.
please loose mounting plate screws
and adjust.
NO NO
Cable
Mounting plate
The smooth side of
the plug should be at the bottom.
