Figure A Figure B
Figure C

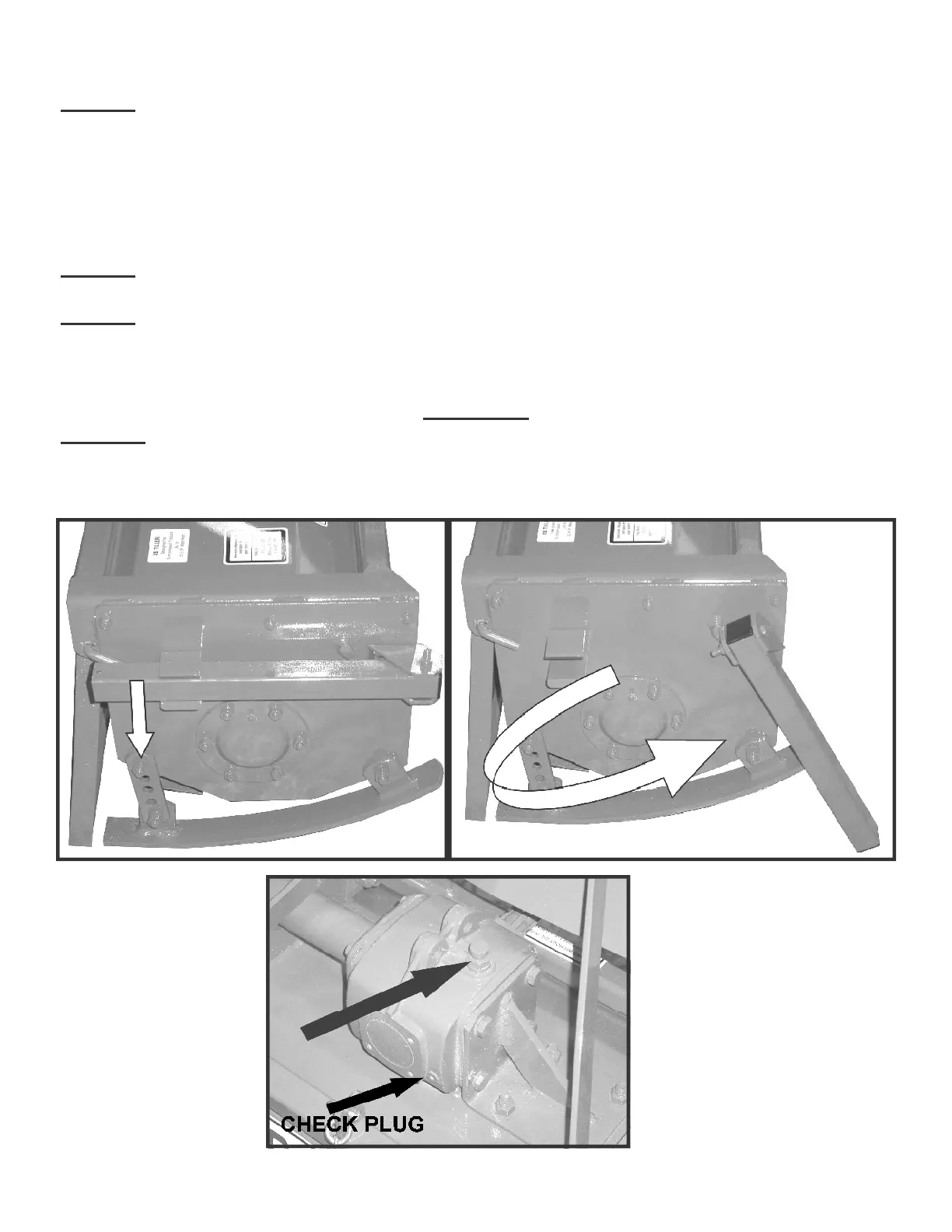

STEP 5 Remove Breather Plug (Located at top of side gearbox, See (FIG. D point
1 on next page), there is also a plug at the bottom (Located in the side of
the side gearbox) (FIG. D point 2 on next page) if oil comes out of lower
plug, replace plug immediately and go to STEP 6. Now that you have
checked the gearbox lubrication level and it didn’t come out of the check
plug, add one of the multi-purpose gear oils listed on page 8 until it
comes out the check plug.
STEP 6 Replace and tighten the plugs. Clean away any excess oil.
STEP 7 Grease the grease fitting on the "outboard hub, (Fig. E on next page) the
two (2) grease fittings on the PTO universal joints, the two (2) grease fit-
tings on the PTO safety shield and the inner surface portion of the PTO
shaft. See Figures F and G.
CAUTION:
DO NOT over fill gearbox. This could cause damage to oil seals and can cause per-
manent damage to the gearbox. This issue will not be covered under warranty.
To Next Page
