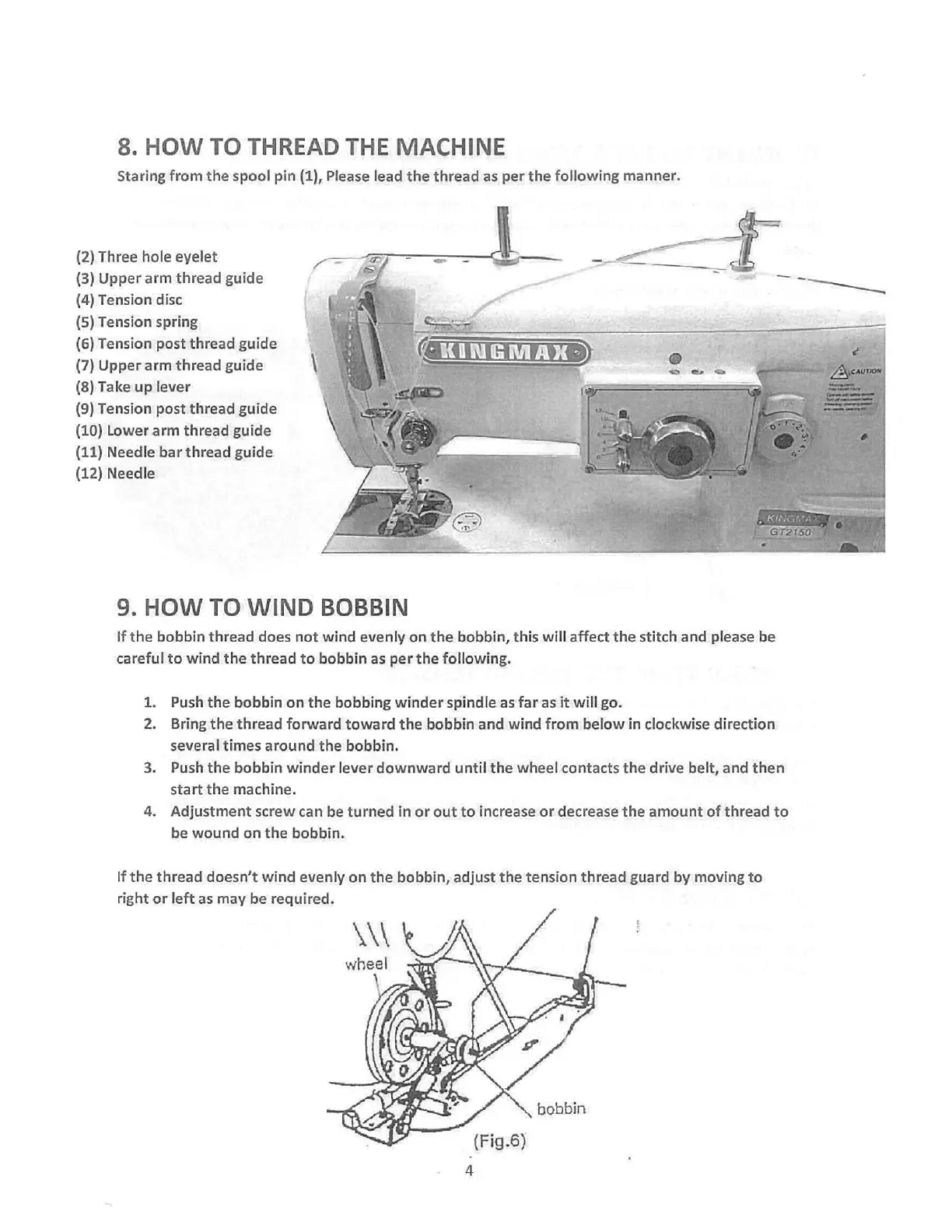

8. H OW TO THREAD THE MACHINE
Staring from the spool pin (1), Please lead the thread as per the following manner.
(2) Three hole eyelet
(3) Upper arm thread guide
(4) Tension disc
(5) Tension spring
(6) Tension post thread guide
(7)
Upper arm thread guide
(8) Take up lever
(9) Tension post thread guide
(10) Lower
arm thread guide
(11) Needle
bar thread guide
(12) Needle
\
9. HOW TO WIND BOBBIN
- -
-~--r
✓ - --
<att •~•ft\', f!t:O)
If the bobbin thread does not wind evenly on the bobbin, this will affect the stitch and please be
careful
to wind the thread to bobbin as per the following.
1. Push the bobbin on the bobbing winder spindle as far as it will go.
2. Bring
the thread forward toward the bobbin and wind from below in clockwise direction
several times around
the bobbin.
3. Push the bobbin winder lever downward until the wheel contacts the drive belt, and then
start the machine.
4.
Adjustment screw can be turned in or out to increase or decrease the amount of thread to
be wound on the bobbin.
If the thread doesn't wind evenly on the bobbin, adjust the tension thread guard by moving to
right or left as may be required.
\\\
w
(Fig.6)
4
