sPeciFicaTions
Frequency VHF44-230MHz
Range UHF520-820MHz
Max Gain VHF:22-28dB(WModelsONLY)
UHF: 34 dB
Noise VHF<3 dB
Figure UHF<2.5 dB
Output 105 dB
Figure DIN45004B@(-60dBIMR)
Gain VHF Tilt Control 14-10 dB
Controls UHF 10 dB
Supply PSK08/F 17.5 V AC and
Voltage PSK06/F 14 V DC @ 80 mA
(PSK02 may also be used).
MHW34G/GDP ONLY
Aus Pager Filter  -25dB@148MHz
NZ Pager Filter -25dB@158MHz
FM Filter -25dB@88-108MHz

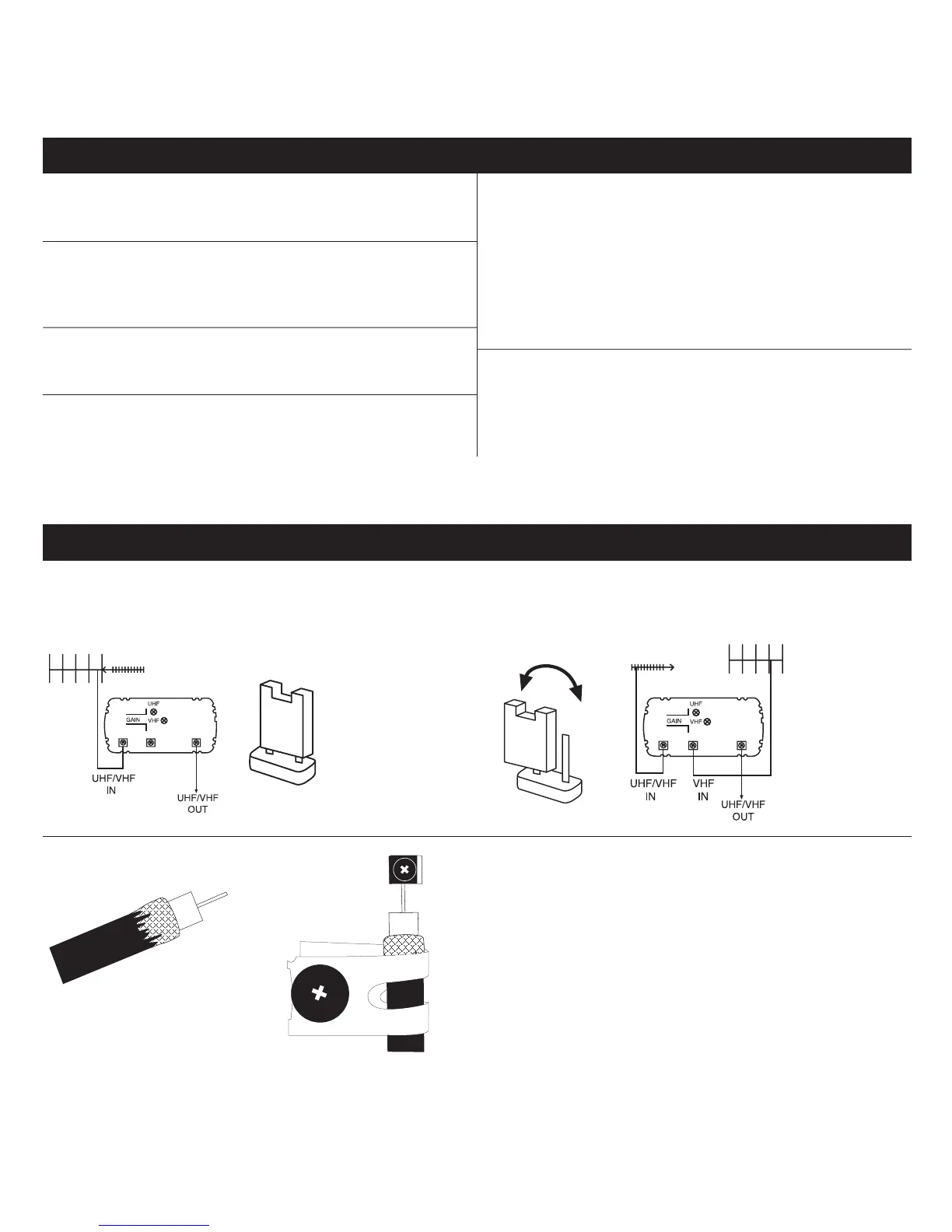

Bare back the cable as per diagram, pushing the earth
braid back over the black sheath. Connect the earth
to the saddle and the centre conductor to the screw
connection.
Bare Back Cable with a Cable
Stripper or Stanley Knife.
insTallaTion
All these models are designed for combined or separate antenna inputs.
Combined Imput Separate Imput
Leave the link
on for a
combined
antenna
or
Remove for
a separate
antenna
