Kingray MHW34G - Filter and Power Options; Filter Options; Inline Powering

FilTer oPTions
The FM and pager filter are located in the
MHW models only.

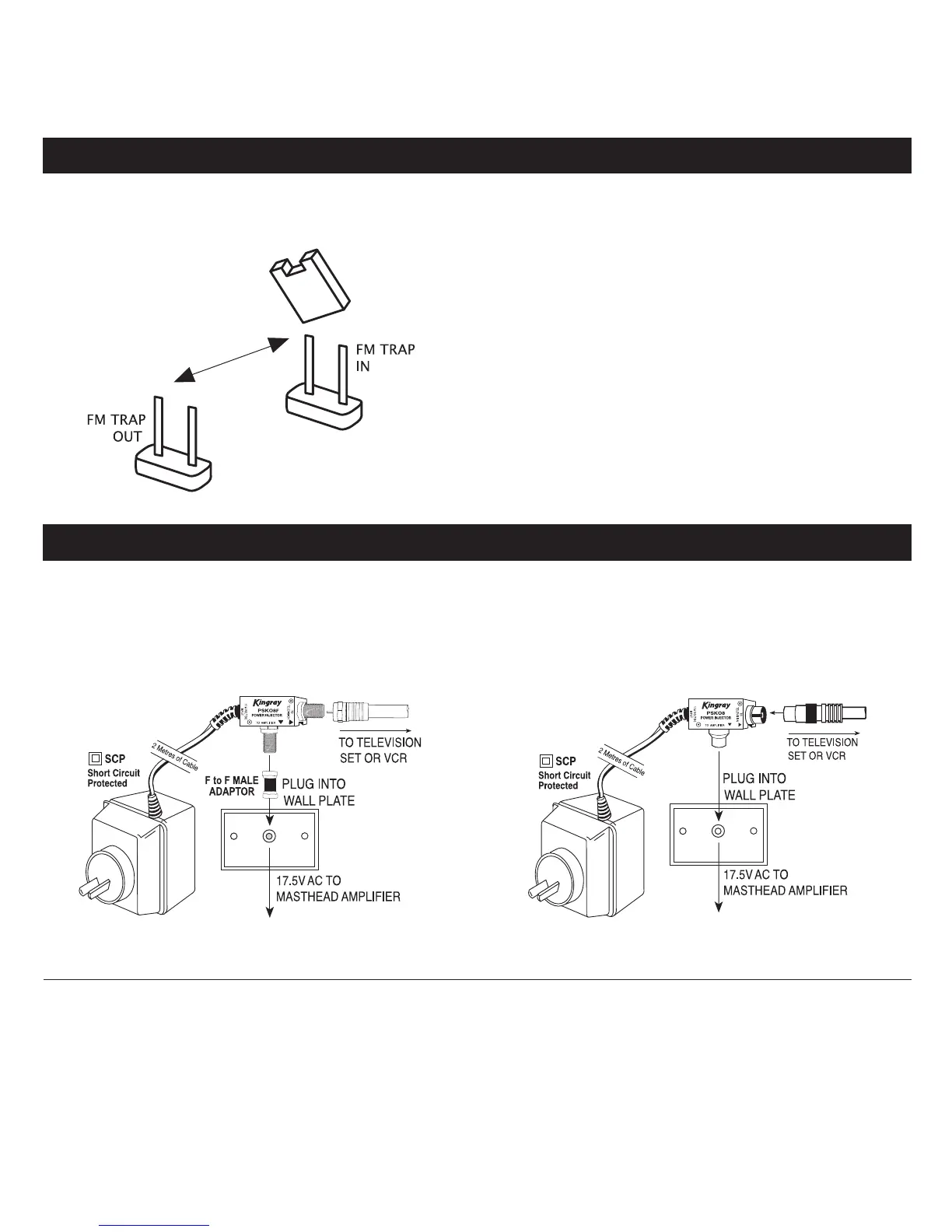

The-25dBBandStopFMFiltermaybedisabledby
simply removing the shorting link and placing it on
thespeciedterminals.TheFMtrapmustbeintheout
position to view television channel 3.
PagerFiltersettoattenuatebetween148-158MHz.
(Pager Filter maybe removed if you need
to amplify 5A, simply remove 2 coils as
indicated on the PCB above the VHF input.)
PoWerinG inline oPTions
Power Through Option: MHU Models only. TheUHFModelscanbeusedasanin-lineamplierfor
boosting UHF television signals on long run cable runs.
To power pass connect link to both pins on socket.
3
Please note: an F Type Adaptor has been included,
in all Kingray F Type Power Supplies to fit an F Type
wall plate. However, the insert from the wall plate
can be removed and the Power Injector may be fitted
directly with the locking nut provided.
PSK06F/08F
PSK06/08
