6 7
4 5

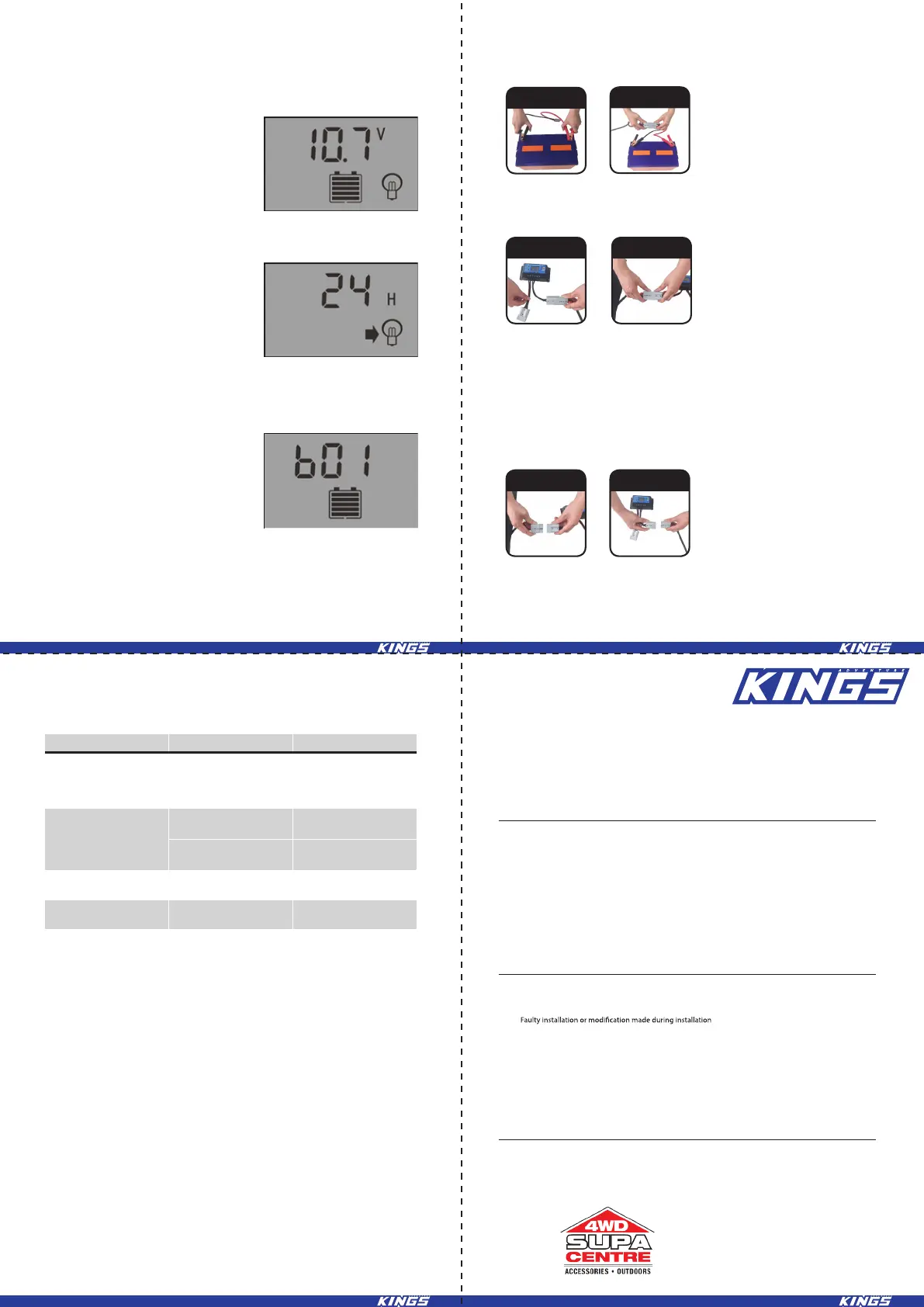

OPERATION INSTRUCTIONS
DISCONNECTING
STEP 1
Disconnect the
solar from the
controller.
STEP 2
Disconnect the
controller and
battery.
STEP 1
Connect the
alligator clips onto
the battery.
STEP 2
Connect the
extension lead to
the battery.
STEP 3
Then connect the
controller onto the
battery.
NOTE: The extension
lead is between the
controller and battery.
STEP 4
Connect the solar
blanket to the
controller.
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Charging symbol not
displaying even when the
solar panel is in the sun
Panel has been improperly
connected to the PMW
controller.
Reconnect the solar panel,
ensuring that the positive
and negative terminals are
appropriately connected
Load icon is off
Battery is low Charge the battery
Incorrect menu setting is
selected
Select a menu setting
where the load is displayed
Load icon ashes slowly Overload
Reduce the load’s power
draw
Load icon ashes quickly Short circuit protection
System should reconnect
automatically
The PWM controller will
not turn on
Battery is insufciently
charged
Charge the battery
Battery has been
connected improperly
Check, and if necessary
alter, the battery’s
connection to the PMW
controller
DISCHARGE STOP
Sever the connection to the load when the
battery’s voltage reaches the set value.
Default: 10.7V
WORK MODE
Control when the battery supplies power to
the load.
24H – constantly provide battery power to the
load.
1-23H – provide battery power to the load for
the set number of hours after the solar panel has
stopped receiving sunlight.
0H – provide power only when the solar panel is
not receiving sunlight.
BATTERY TYPE
Shows type of battery attached to the PWM
controller.
b01 – Lead Acid/ AGM Sealed (default)
b02 - Gel
b03 - Dry Cell
b04 – Iron Lithium 4 Strands
b05 – Iron Lithium 5 Strands
b06 – Lithium Ion 3 Strands
b07 – Lithium Ion 4 Strands
*b04-b07 parameters cannot be set
MENU SCREENS AND THEIR FUNCTIONS
CONT’D
WARRANTY PERIOD:
Full 12 month warranty from date of purchase against all manufacturing defects.
WHAT DOES THE WARRANTY COVER?
Under normal usage conditions, this warranty covers:
a. Any defect in design or manufacture which results in the product failing to perform substantially as described
in authorised advertising or literature.
b. We will either repair or replace the product at our discretion providing that the fault is found to have been
caused by a design or manufacturing defect and not misuse or tampering.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the good
s repaired or replaced if the goods fail to be
of acceptable quality and the failure does not amount to a major failure. The benets provided to you as the
consumer by this warranty are in addition to other rights and remedies available to you under the law.
THE WARRANTY DOES NOT COVER:
a. Any damage resulting from improper use
b.
c. The cost of removing and reinstalling the product
d. Travel and /or other expenses due to customer’s remote location
e. Transport charges and damage in transit. It is your responsibility to deliver and pick up your product,
including any costs associated with the postage of your repair or replacement product. If you do freight your
product we recommend that you insure against loss or damage.
f. Any loss directly or indirectly associated with the product failing to operate.
g. Damage caused by mould, insects, animals, misuse, incorrect operation, adverse weather, accidents
and fair wear and tear
TO MAKE A CLAIM, PLEASE ENSURE YOU RETAIN YOUR SALES RECEIPT OF PURCHASE
1800 88 39 64
12 MONTH LIMITED
WARRANTY
OUTDOOR SUPACENTRE PTY LTD
2 Stanley St Silverwater NSW, 2128
PHONE: 1800 88 39 64
www.4wdsupacentre.com.au
