DRIVE BELT PULLEY

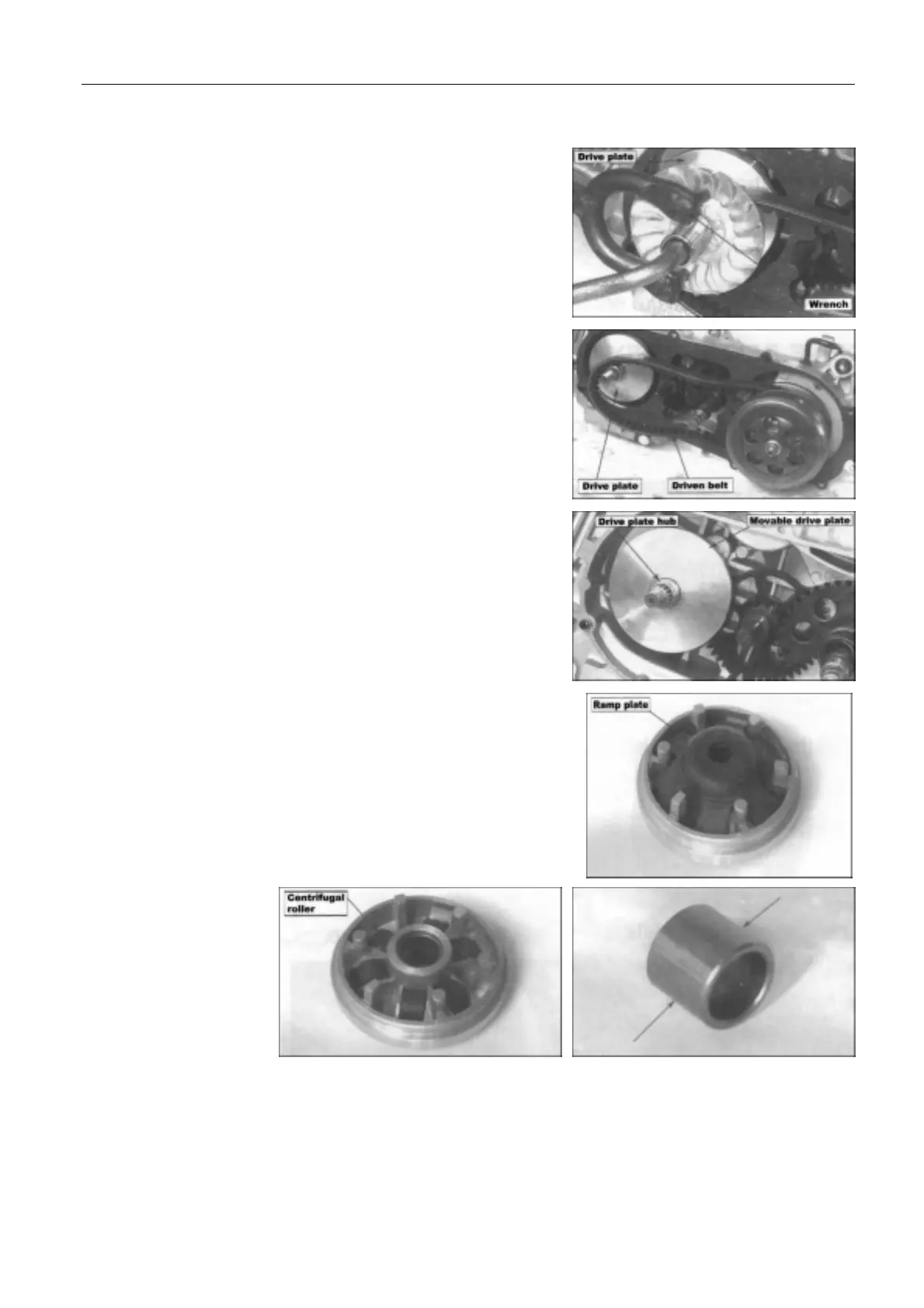

DRIVE BELT PULLEY REMOVAL
Remove the left crankcase air pipe lock bolt.
Remove the kick-starter, and remove the left crankcase fixing bolt.
Remove the left crankcase cover.
Hold the drive plate with a universal wrench, and then remove the
nuts and gasket on the drive plate shaft. Remove the drive plate.
Remove the driven belt from the drive plate.
Remove the gasket and the dowel pin.
Remove the movable drive plate (the whole set).
Remove the ramp plate.
Remove the centrifugal
rollers.
