KINROAD 150 SERVICE MANUAL VERSION 1, DEC., 2005
50

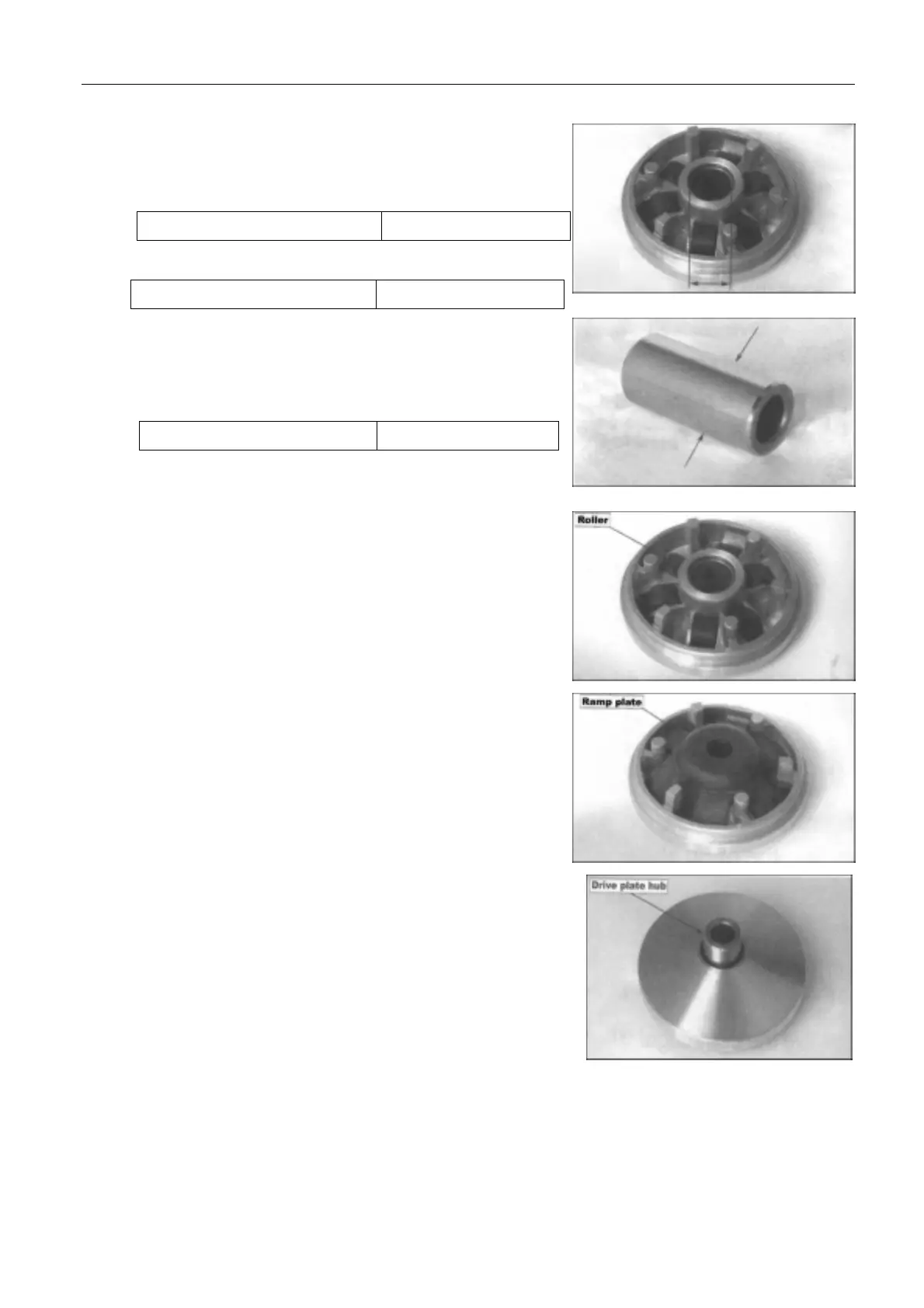

DRIVE BELT PULLEY INSPECTION
Inspect if there is any abrasion or damage of the centrifugal roller.
Measure the outer diameter of the centrifugal roller.
Mea
sure the inner diameter of the movable drive plate.
Service limit 24.06mm
Inspect if there is any abrasion or damage of the drive plate hub.
Measure the outer diameter of the drive plate hubs movable
surface.
Service limit 23.94mm
DRIVE BELT PULLEY INSTALLATION
Apply some grease evenly in the movable drive plate. Put the
centrifugal rollers into the movable drive plate.
Install the ramp plate.
Put the drive plate hub into the drive plate.
Service limit 17.0mm
