KINROAD 150 SERVICE MANUAL VERSION 1, DEC., 2005
51

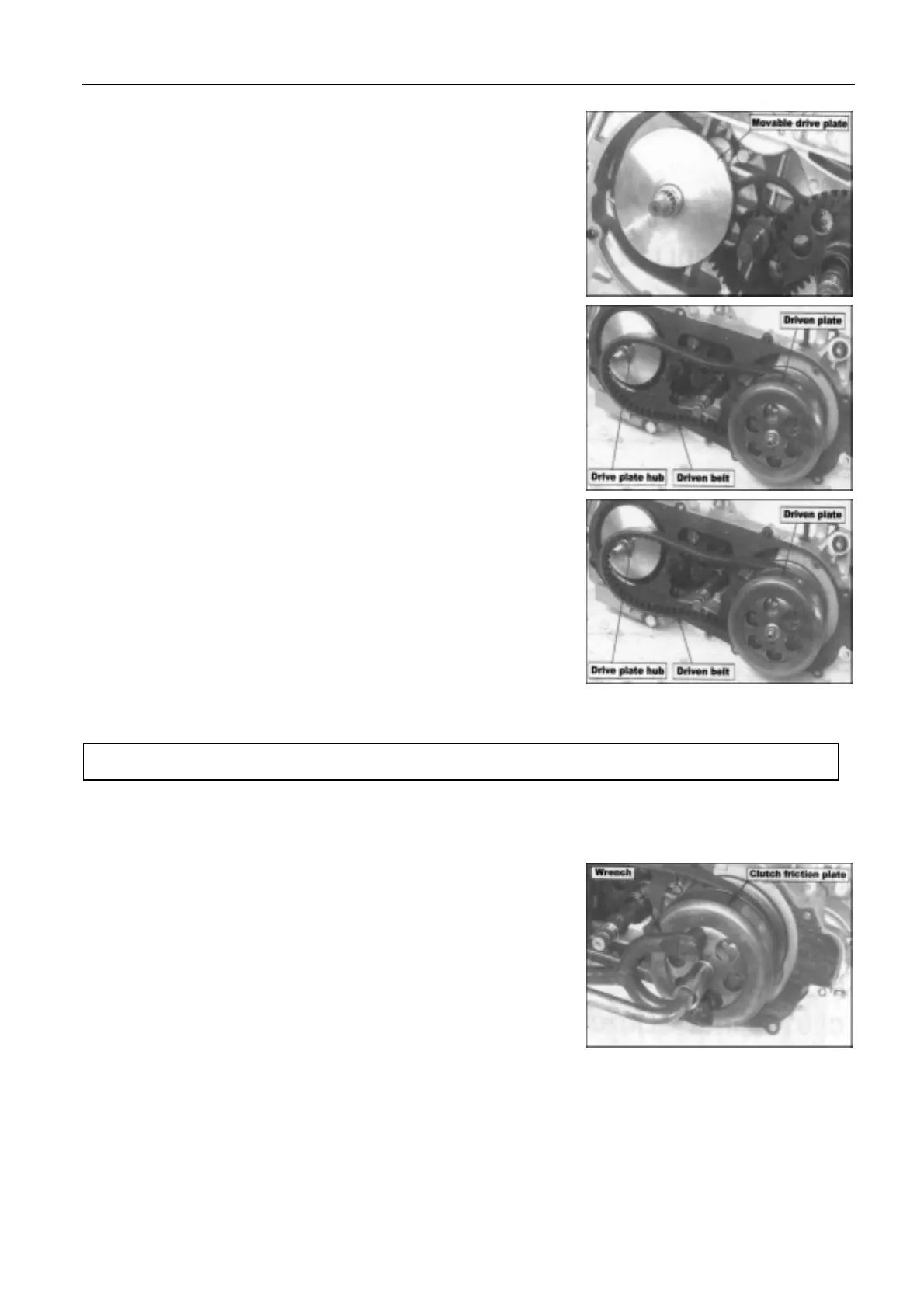

Install the movable drive plate on the crankshaft.
Enlarge the driven plate belt groove, and mount on the driven belt.
Mount the other end of the driven belt on the drive plate hub.
Assemble the drive plate, the drive plate washer and nut.
Hold the drive plate with a multiuse holder to make it unmovable. At
the same time fasten the nut on the shaft.
CLUTCH
CLUTCH REMOVAL
Remove the left crankcase cover.
Remove the drive plate and the driven belt.
Hold the clutch friction plate with a multiuse holder, and remove the
nut.
Remove the clutch friction plate.
z Do not allow any grease or oil on the surface of the movable drive plate and the driven belt.
