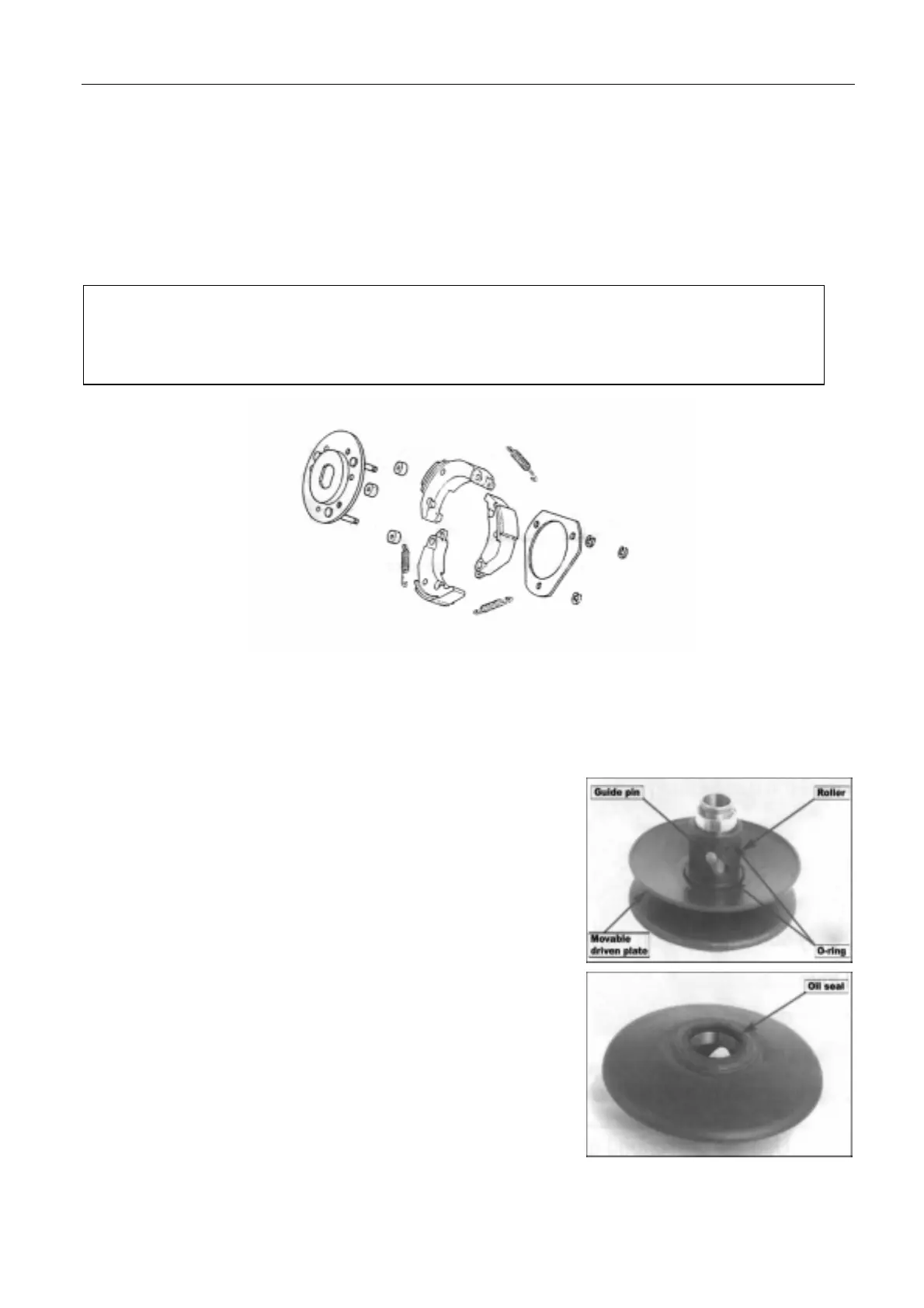

CLUTCH INSTALLATION
Mount the clutch damper rubber on the drive plate pin.
Mount the new clutch weight set and spring on the drive plate.
Install the connecting piece, the circlip, and the bottom plate.
Reverse the removal procedure for installation.
DRIVEN BELT PULLEY
DRIVEN BELT PULLY REMOVAL
After removing the clutch friction plate, remove the guide pin, the
roller and the movable driven plate.
Remove the oil seal on the movable driven plate.
z When assembling the clutch and the driven plate, you must use a clutch spring compressor;
otherwise it will damage this spring.
z No grease on the driven pulley.
