KINROAD 150 SERVICE MANUAL VERSION 1, DEC., 2005
54

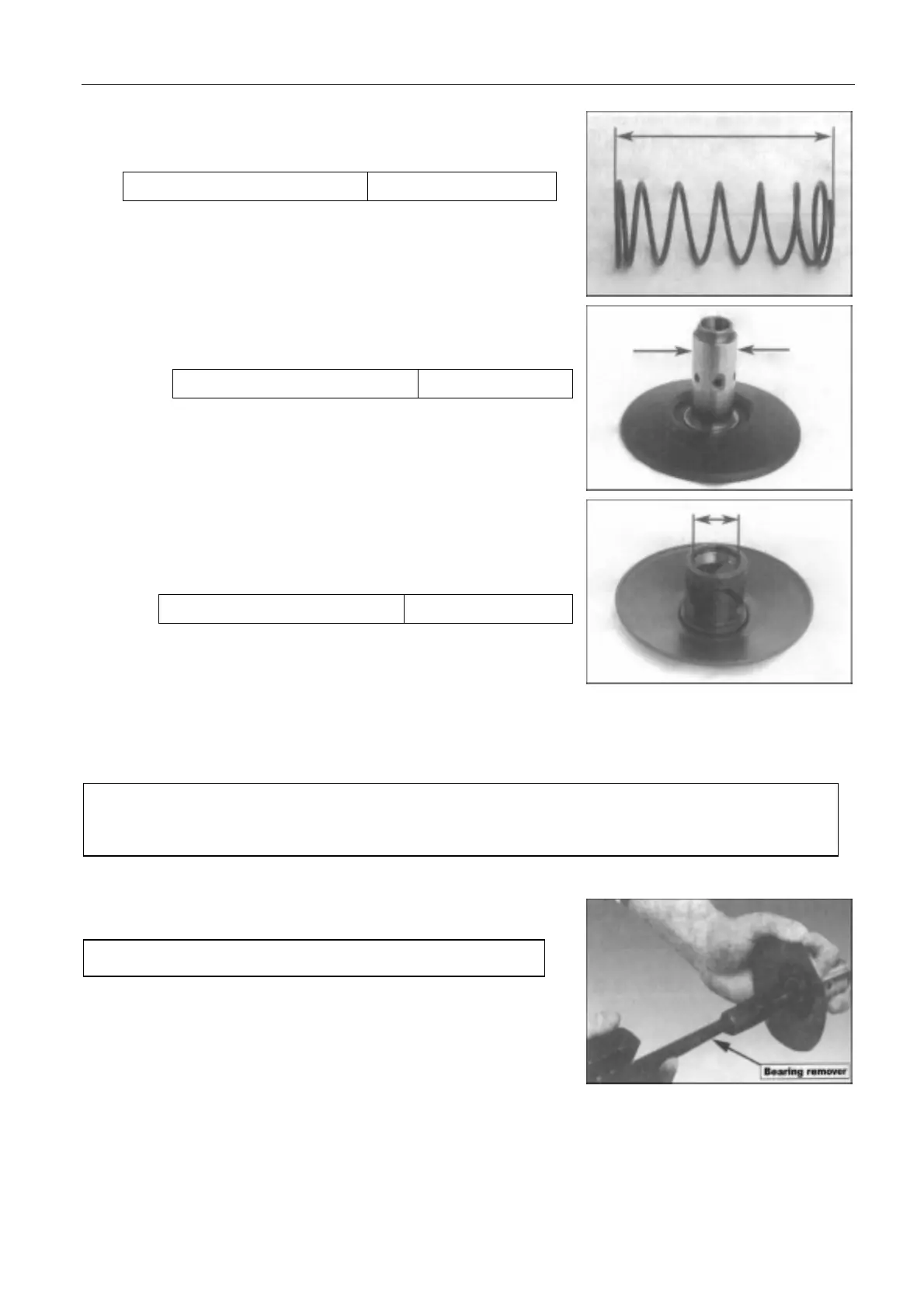

DRIVEN BELT PULLEY INSPECTION
Measure the free length of the driven belt pulley spring.
Inspect if there is any abrasion or damage on the driven plate.
Measure the outer diameter of the driven plate pulley hub.
Service limit 33.94mm
Inspect if there is any abrasion or damage of the movable driven
plate.
Measure the inner diameter of the movable driven plate.
Service limit 34.06mm
Inspect if the groove of the guide pin is worn.
DRIVEN PLATE BEARING REPLACEMENT
Remove the needle bearing from the driven plate.
Service limit 163.7mm
z If the driven plate needle bearing and the ball bearing are loose, damaged, or have some unusual
sound, they should be replaced.
z The removed bearing cannot be reused.
