Kioritz Echo SRM-2305 - 1-6 Special tools

SERVICE INFORMATION
SRM-2305
SRM-2305SI
6
2
0
20
4
0
40
6
0
60
8
0
80
1
2
0
120
1
4
0
140
1
6
0
160
1
8
0
180
2
0
20
1
0
0
100
Key Part Number Description Used for:
1 897801-33330 Tachometer PET-1000 Measuring engine speed
2 363018-00310 Washer Installing crankcase oil seal of starter side
3 900600-00012 Washer Installing drive gear
4 895610-79920 L-hex wrench (4 mm) Removing and installing hex. socket bolts (M5)
5 897603-23030 PTO shaft puller Removing driven (PTO) shaft
6 897701-06030 Bearing wedge Removing ball bearings on crankshaft
7 897701-14732 Bearing tool Removing and installing crankcase ball bearings
8 897702-30131 Piston pin tool Removing and installing piston pin (Use 8 mm dia. adapter.)
9 897705-11520 Bearing tool Removing and installing con-rod small end needle bearing
10 897712-04630 2-pin wrench Removing and installing pawl carrier
11 897714-24330 Oil seal tool Installing crankcase oil seals
12 897726-09130 Oil seal tool Removing clutch drum and installing clutch drum ball bearing
13 897800-79931 Spark tester Checking ignition system
14 897803-30130 Pressure tester Checking carburettor and crankcase leakages
15 897835-16131 Pressure connector Checking crankcase and cylinder leakages
16 433019-12330 Flange nut Removing magneto rotor (flywheel)
17 900100-08008 Bolt Removing magneto rotor (flywheel)
18 91007 Compression gauge Measuring cylinder compression

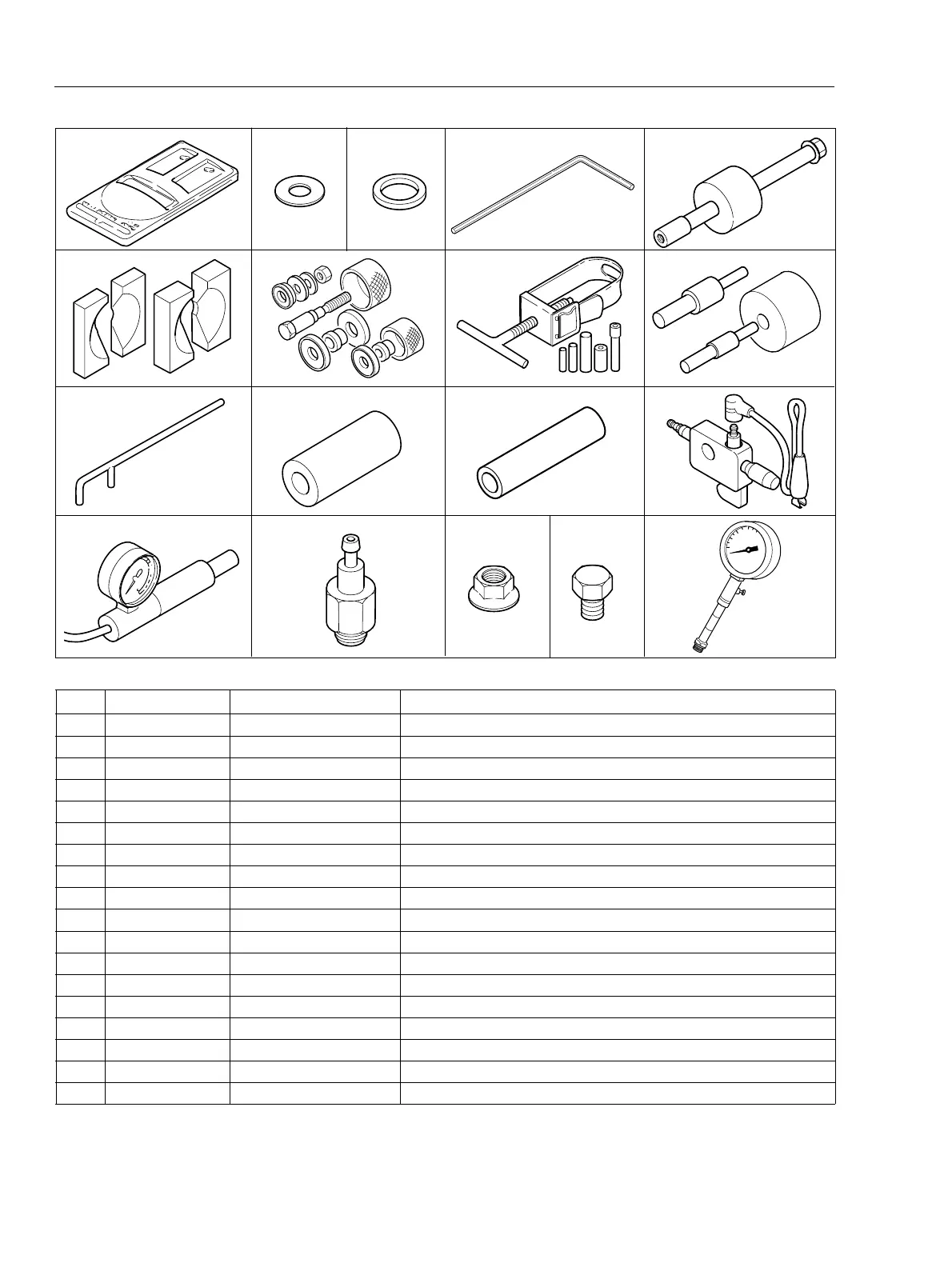

1-6 Special tools
