CNC:
Index Service Part # File Name
Description
Qty
1 A00-0013 TEKT-0009 5MM Bushing 8
2 A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB 4
3 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 4
4 A00-0044 TEKT-ASM-002 Side Window Hinge Weldment 2
5 A00-0045 TEKT-0004 Side Window Slider Bracket, 1" tube 1
6 A00-0057 TEKT-0020MIR Side Window Latch, L60776 1
7 A00-0058 CARRIAGE_BOLT-5-16X1 Bolt, Carriage, 5/16"x 1", YD 1
8 A00-0059 FLANGE-NUT-5-16 Flange Nut, 5/16", YD 1
9 A00-0119 WASHER_1-4 Washer, Flat, 1/4" 2
10 M06-0004 MFGC1725M-108 Side Window Glass 1
11 M06-0008 MFGC1725M-112- Side Window Seal 1

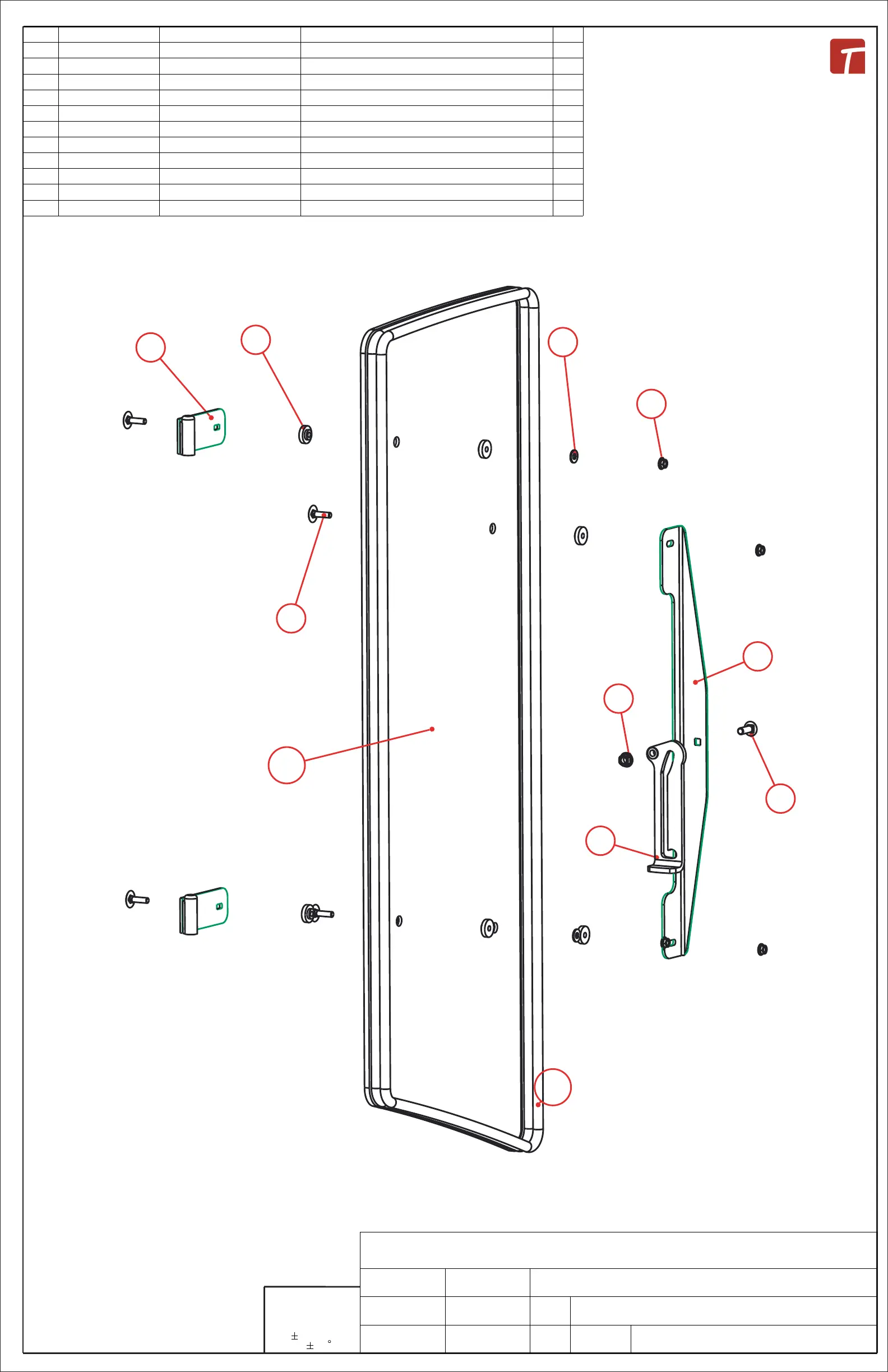

1 req Complete Left Side Window Assembly
Daryl Furkalo
2019-06-03 Imp.
MFGC1725M-ASM-10_OP
B
M06-0013
SCALE 0.250
1
2
3
4
5
6
7
8
9
10
11
