CNC:
Index Service Part # File Name
Description
Qty
1 A00-0001 DLP-HANDLE Outside Push Button Handle 1
2 A00-0002 LEFT-LATCH Suicide Door Left Latch 1
3 A00-0013 TEKT-0009 5MM Bushing 15
4 A00-0018 STEP-BOLT1-4X1-1-2 Step Bolt, 1/4" x 1 1/2", MB 3
5 A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB 4
6 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 9
7 A00-0039 TEKT-ASM-001 Left Door Hinge Weldment, Upper 1
8 A00-0041 TEKTITE-DECAL Tektite Cab Decal - Solid White 1
9 A00-0118 FLANGE_BOLT_1-4X1 Flange Bolt, 1/4" x 1", YD 2
10 A00-0177 TEKT-0068 Handle Washer Spacer 1
11 A00-0228 TEKT-ASM-029 Left Door Hinge Weldment, Lower 1
12 A00-0295 FLANGE_BOLT_M6X30 Flange Bolt, M6x30, YD 1
13 M06-0003 MFGC1725M-109 Door Glass 1
14 M06-0007 MFGC1725M-111- Door Weatherstripping 1
15 M06-0009 MFGC1725M-ASM-08 Left Door Frame Weldment 1
16 M06-0023 MFGC1725M-110 Door Handle 1

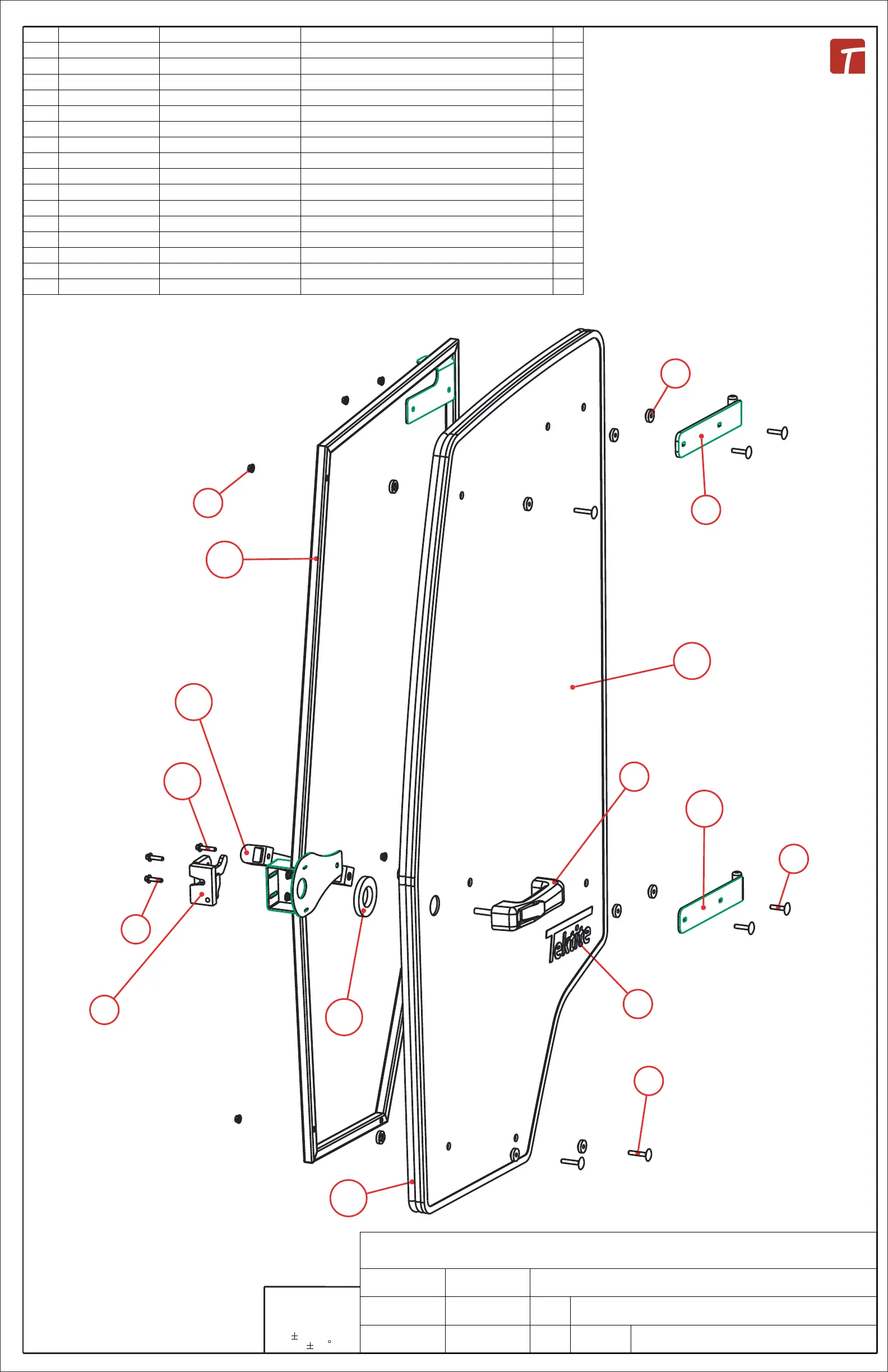

1 req Left Door Assembly
Daryl Furkalo
2019-06-03 Imp.
MFGC1725M-ASM-09_OP
B
M06-0011
SCALE 0.180
1
2
16
3
4
5
6
7
8
9
10
11
12
13
14
15
