REPLACING HYDRAULIC OIL FILTER
& TRANSMISSION OIL FILTER
1. Place the oil pan under the hydrau-
lic oil filter.
2. Remove the oil filter.
3. Place a film of clean transmission
fluid to the rubber seal of the new
filter.
To avoid personal injury:
Be sure to stop the engine be-
fore changing oil filter cartridge.
!!
!!
!
CAUTION
(1) HST Oil Filter
7. Make sure that the transmission fluid
doesn't leak through the seal.
8. HST models have a hydraulic filter
and HST filter.
(1) Hydraulic Oil Filter
HST Type
T46OA14A T46OA15A
4. Tighten the filter firmly until it con-
tacts the mounting surface. Then
tighten the filter, by hand, an addi-
tional half turn only.
5. After the new filter is in place, fill the
transmission up with oil to the upper
line of the oil gauge.
6. After running the engine for a few
minutes, stop it and check the oil
level again, add oil to the prescribed
level.
To prevent serious damage to
the hydraulic system, use only
a genuine KIOTI filter.
IMPORTANT

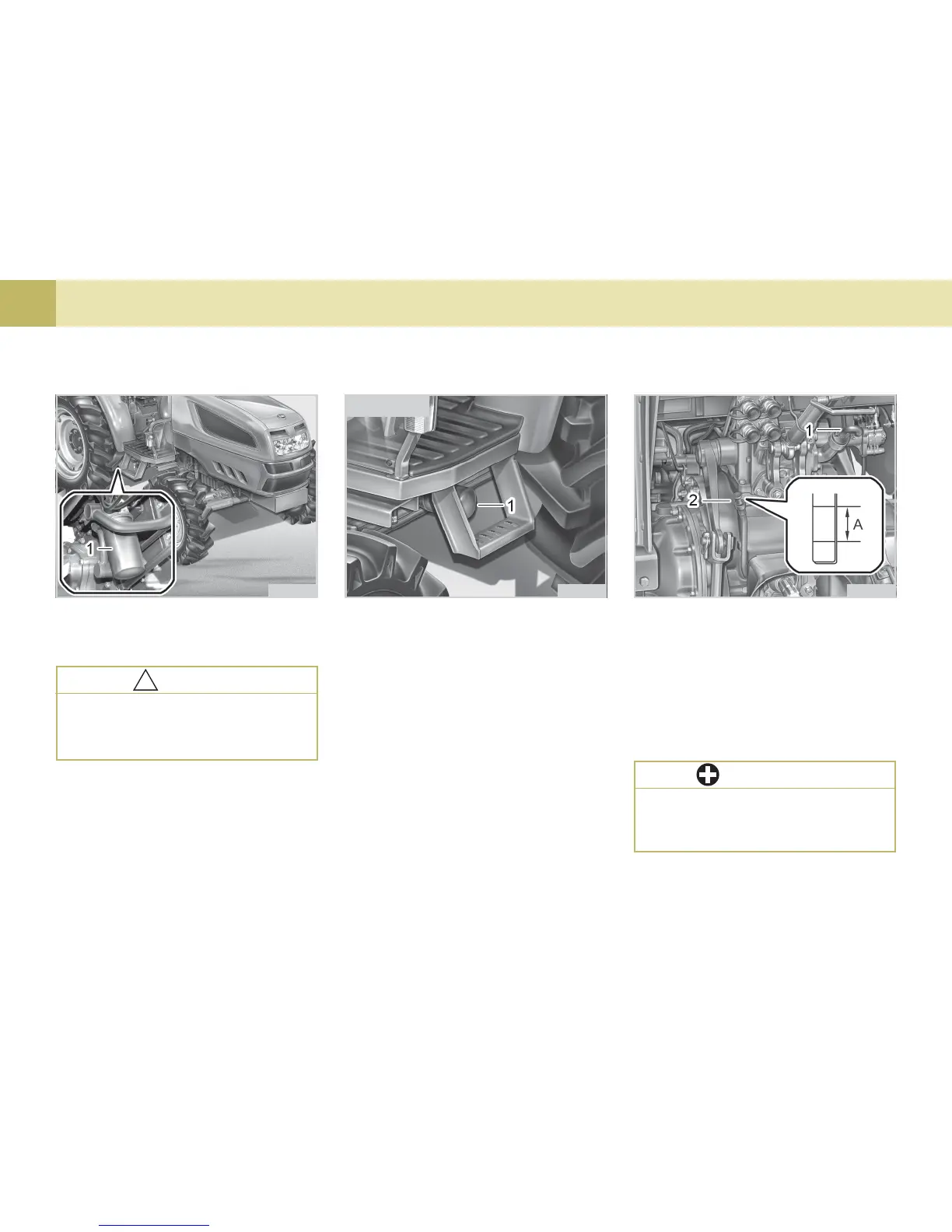

(1) Oil Filler Plug (2) Gauge
(A) Oil level is acceptable within this range
T46OA17A
