Kioti EX40 - Folding the ROPS

5 -11 OPERATION
T46O513AT46O512A

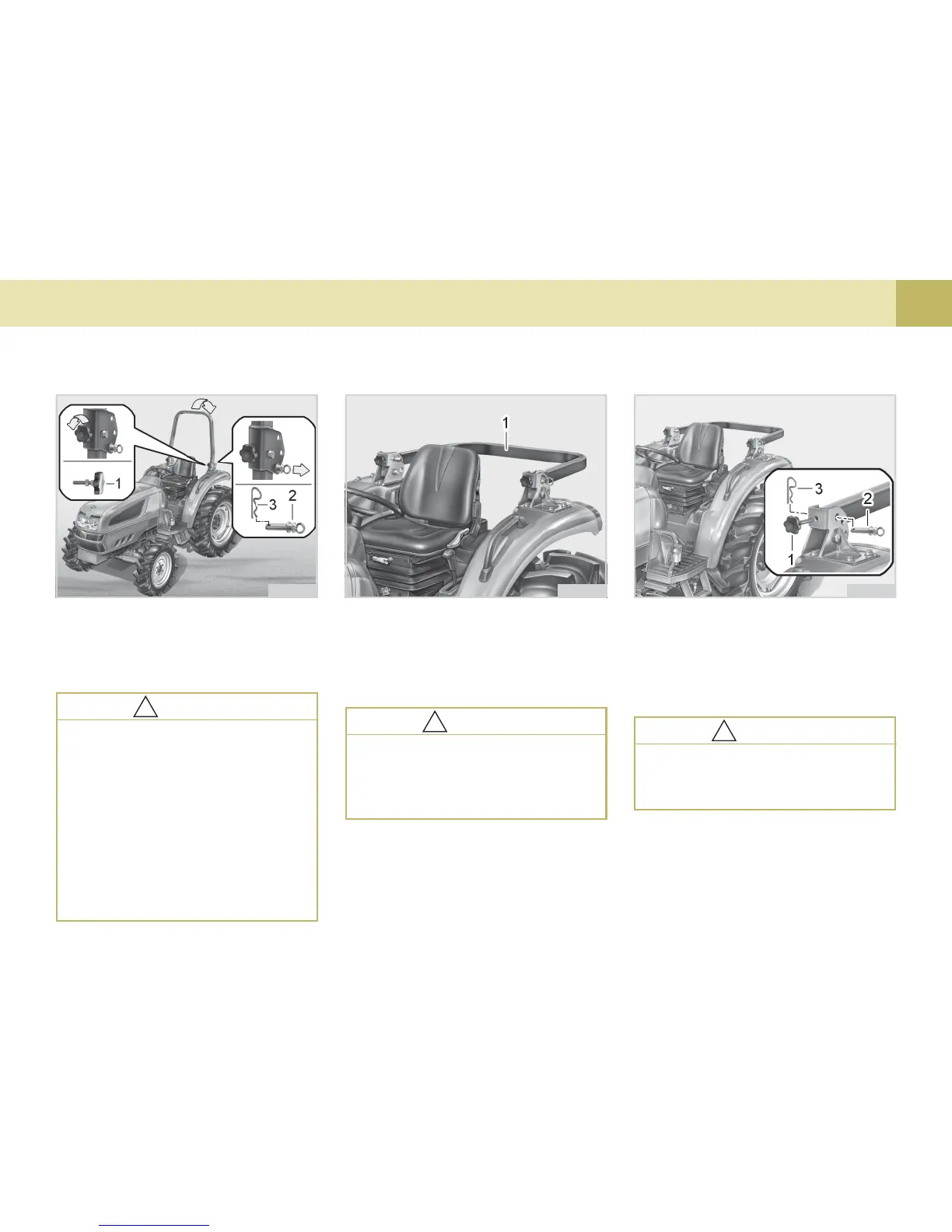

TO FOLD THE ROPS
(1) Grip Bolt (2) Set Pin
(3) Clip Pin
(1) ROPS
1. Remove the clip pin and set pin. 2. Loosen the grip bolt and fold the
ROPS.
OPERATING THE TRACTOR
 You should always stop the
engine, remove the key and set
the parking brake before raising
or folding the ROPS.
 Always perform such tasks from
a safe and stable position at the
rear of the tractor.
 Folding the ROPS should only be
done when absolutely necessary,
and should be returned to the up-
right position as soon as possible.
!!
!!
!
CAUTION
To avoid personal injury:
 Hold the ROPS tightly with both
hands and fold the ROPS slowly
and carefully.
!!
!!
!
CAUTION
T46O514A
3. Align pin holes, insert set pin, and
secure them with the clip pin.
To avoid personal injury:
 Make sure the pins are properly
installed and secured.
(1) Grip Bolt (2) Set Pin
(3) Clip Pin
!!
!!
!
CAUTION
