5
-12 EX35/40/45/50
T46O517A

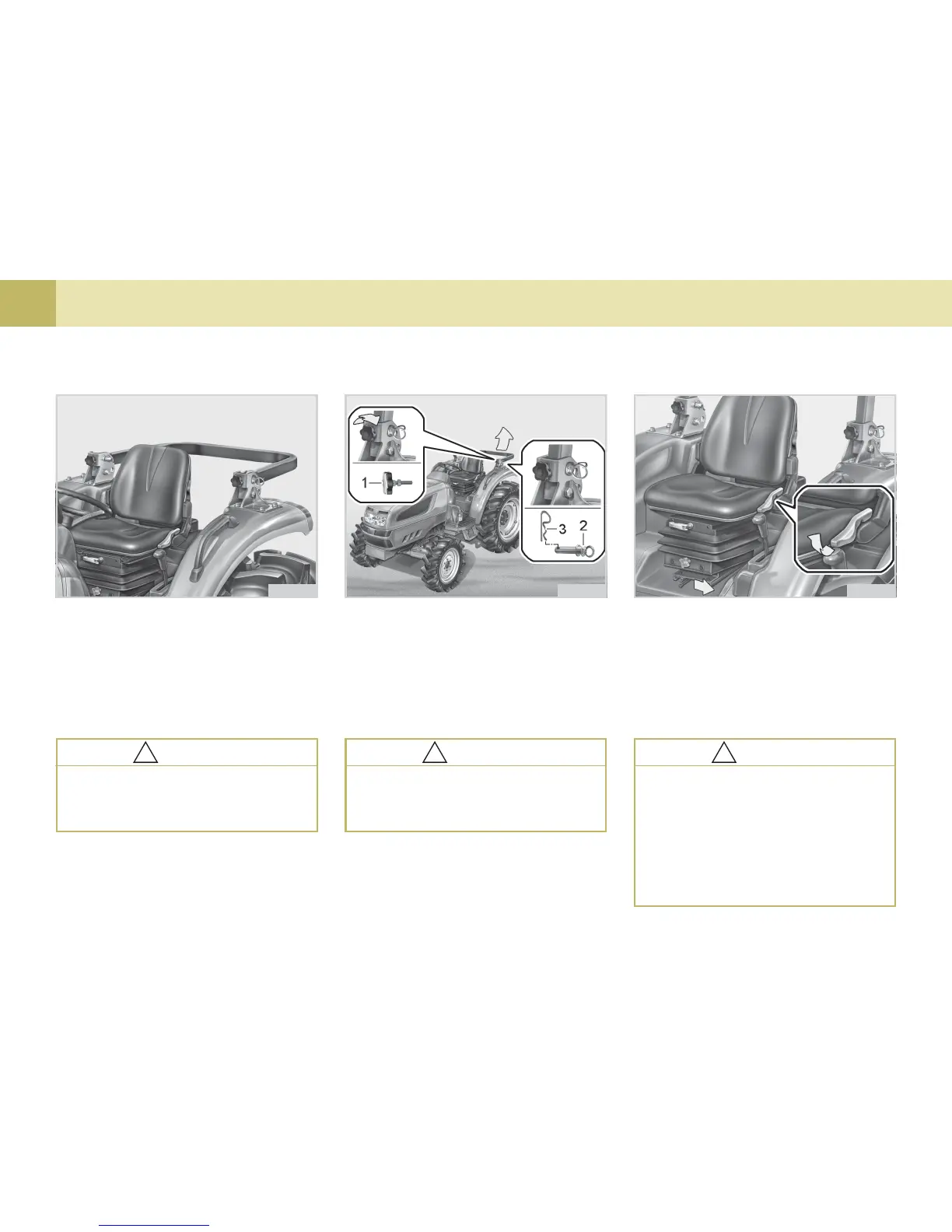

1. ADJUSTING THE OPERATOR’S
POSITION
(1) Position Height Adjuster (4) Weight Adjuster
(2) Height Adjuster Leve (A) “PULL IN”
(3) Seat Reclining Lever
(1) OPERATOR'S SEAT
STARTING
To avoid personal injury:
Make sure that the seat is com-
pletely secured after each
adjustment.
Do not allow any person other
than the driver to ride on the
tractor.
!!
!!
!
CAUTION
T46O515A T46O516A
TO RAISE THE ROPS TO
UPRIGHT POSITION
1. Remove both the grip bolt, clip pin
and set pin.
2. Raise ROPS to the upright position.
3. Align pin holes, insert set pin and
secure them with the clip pin.
4. Fix the ROPS with the grip bolt.
To avoid personal injury:
Make sure that pins are properly
installed and secured.
(1) Grip Bolt (2) Set Pin
(3) Clip Pin
!!
!!
!
CAUTION
To avoid personal injury:
The ROPS must be raised slowly
and carefully.
!!
!!
!
CAUTION
To Next Page
