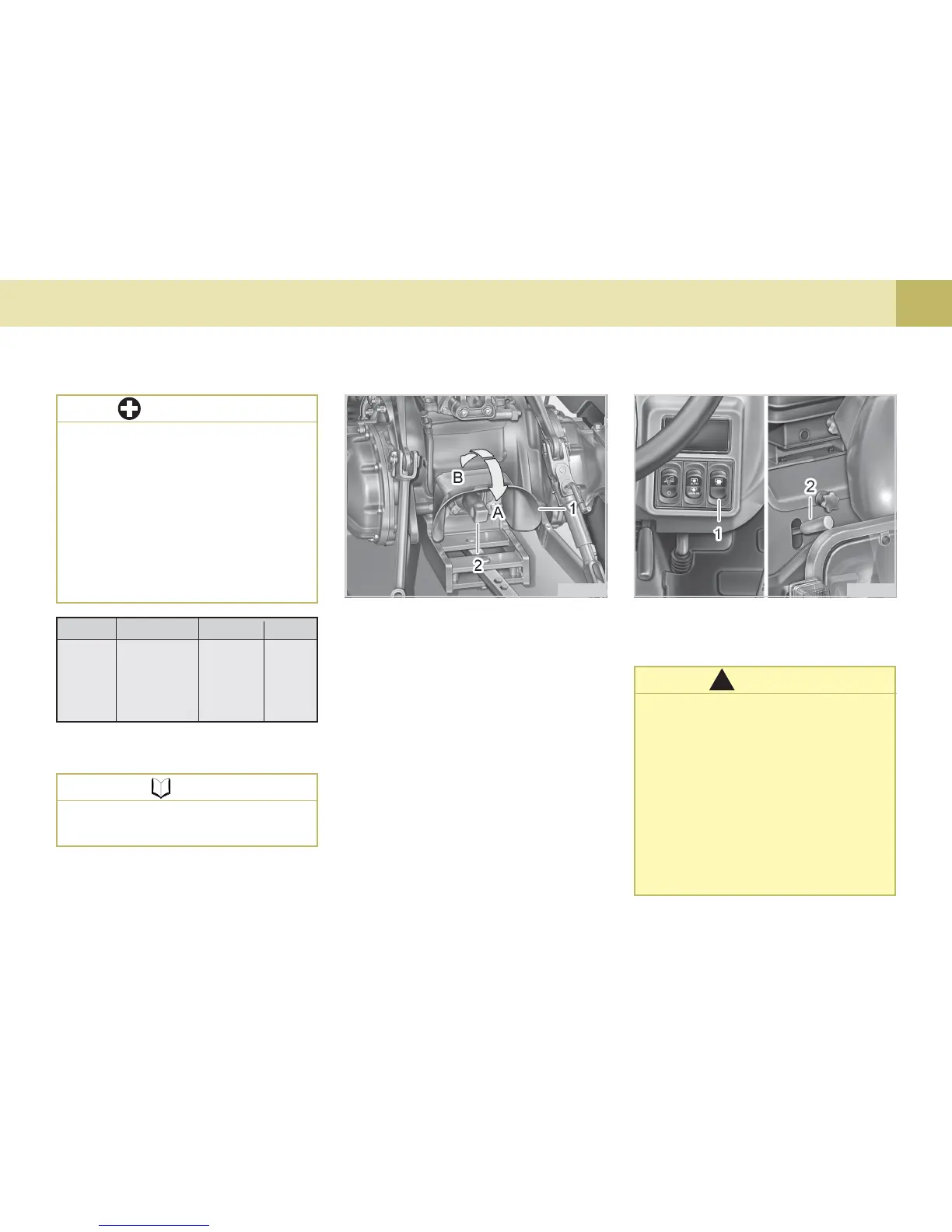

OPERATION
(1) PTO Switch
(2) Mid PTO Lever
MID-PTO LEVER (OPTION)
You should keep the PTO Shield in
place at all times and remember to re-
place the cap when the PTO shaft is
not in use.
T46O582A
WARNING
!!
!!
!
To avoid personal injury:
Prior to operation, after selecting
the Mid PTO lever, turn the PTO
switch ON.
Do not operate Rear-PTO driven
implements and Mid-PTO driven
implements at the same time.
The Mid PTO is available to op-
erate KIOTI approved
implements.
(1) PTO Shield (2) PTO Shaft Cap
(A) Normal Position (B) Raised Position
PTO SHIELD AND SHAFT CAP
To avoid shock loads to the PTO,
reduce engine speed when en-
gaging the PTO, then open the
throttle to the recommended
speed:
To avoid damage to the transmis-
sion before turning the PTO on
fully disengage the clutch.
IMPORTANT
T46O549A
( ):HST Model
There is a PTO-1 (540 rpm) indica-
tor marked on the tachometer.
NOTE
Engine rpm PTO shaftPTOrpmModel
EX35(H)
EX40(H)
EX45(H)
EX50(H)
2520(2500)
6-Spline 540
To Next Page
