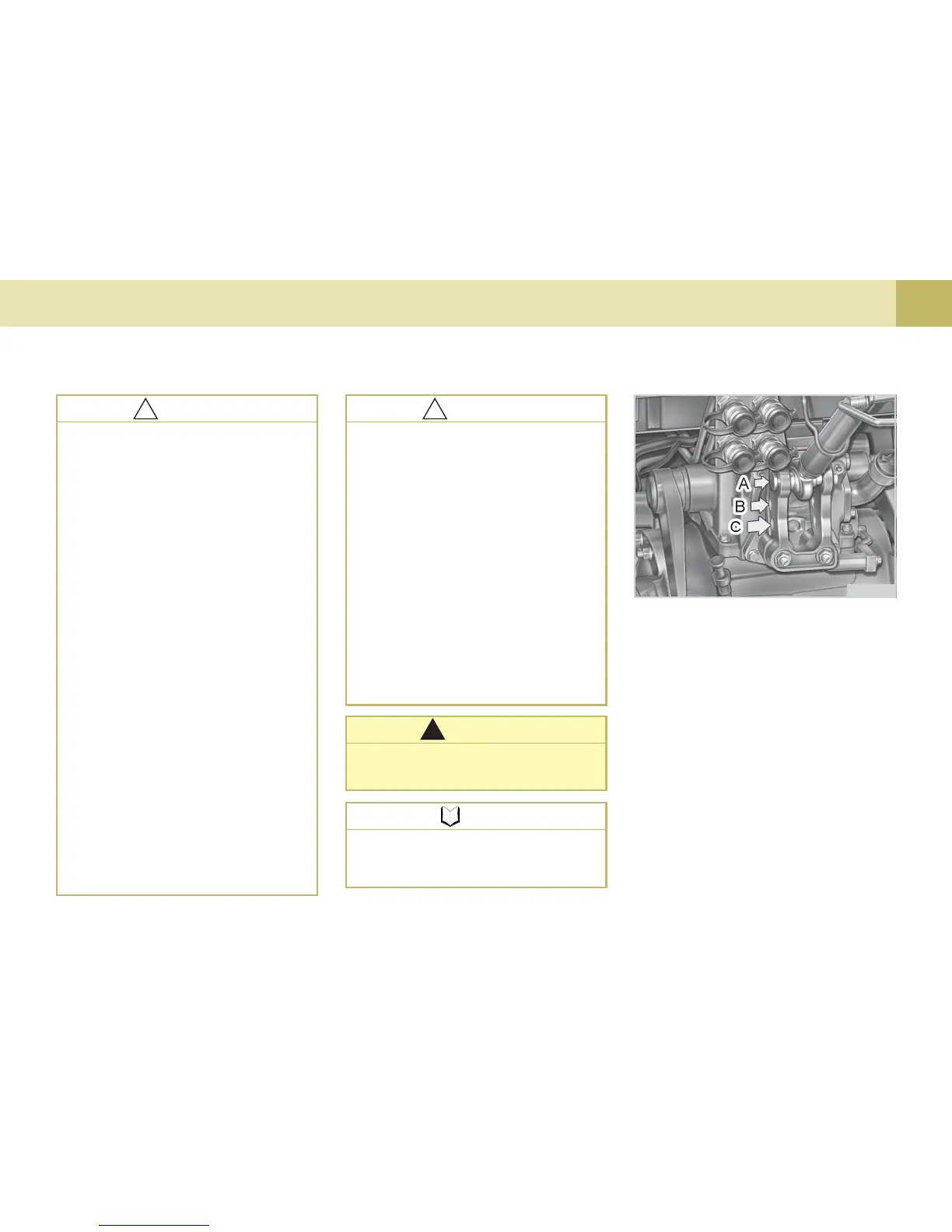

THREE-POINT HITCH & DRAWBAR
3-POINT HITCH OPERATION
T46O602A
(A) Haulage is not required
(B) For heavy haulage
(C) For light haulage
WARNING
!!
!!
!
If you neglect this rule, you can
be easily injured.
1. Adjust an angle of the implements
to the desired position by shorten-
ing or lengthening the top link.
2. Adjusting a proper length of imple-
ments varies as a type of imple-
ments used.
TOP LINK
Keep always away anyone from/
between an implement and trac-
tor while its job being performed.
Attaching and detaching work of
implements must be done in a
flat and safe place, and a right
lighting apparatus should be tak-
en at night time.
Apply a balance weight in front
of your tractor when it’s mount-
ed with a heavy implement.
Before you adjust an implement
to the tractor, keep in mind that
apply a parking brake and/or
stop the engine and make sure
that the PTO shift lever be in the
‘Neutral’ position.
Don’t use any other implements
than a proper draft hitch when
you do a draft job.
A rear wheel-tread must be wid-
er than normal when a draft work
done and you drive down the
slope.
!!
!!
!
CAUTION
Be aware and cautious about the
surroundings of your tractor
turning round if any strangers or
objects.
Instead of applying a balance
weight, never try to load a per-
son or any other objects.
Make your tractor balanced with
an implement in the rear of your
tractor when you work with a
front loader.
For a safe and proper use of im-
plements with your tractor, read
cautiously the given manual.
!!
!!
!
CAUTION
Detach a draw bar before you mount
an implement on the tractor.
NOTE
