-4 EX35/40/45/50
TELESCOPIC STABILIZER
A telescopic stabilizer is basically used
for tightening and unwavering in an
implement linked with tractors and for
setting the implement in the rear cen-
ter of your tractor.

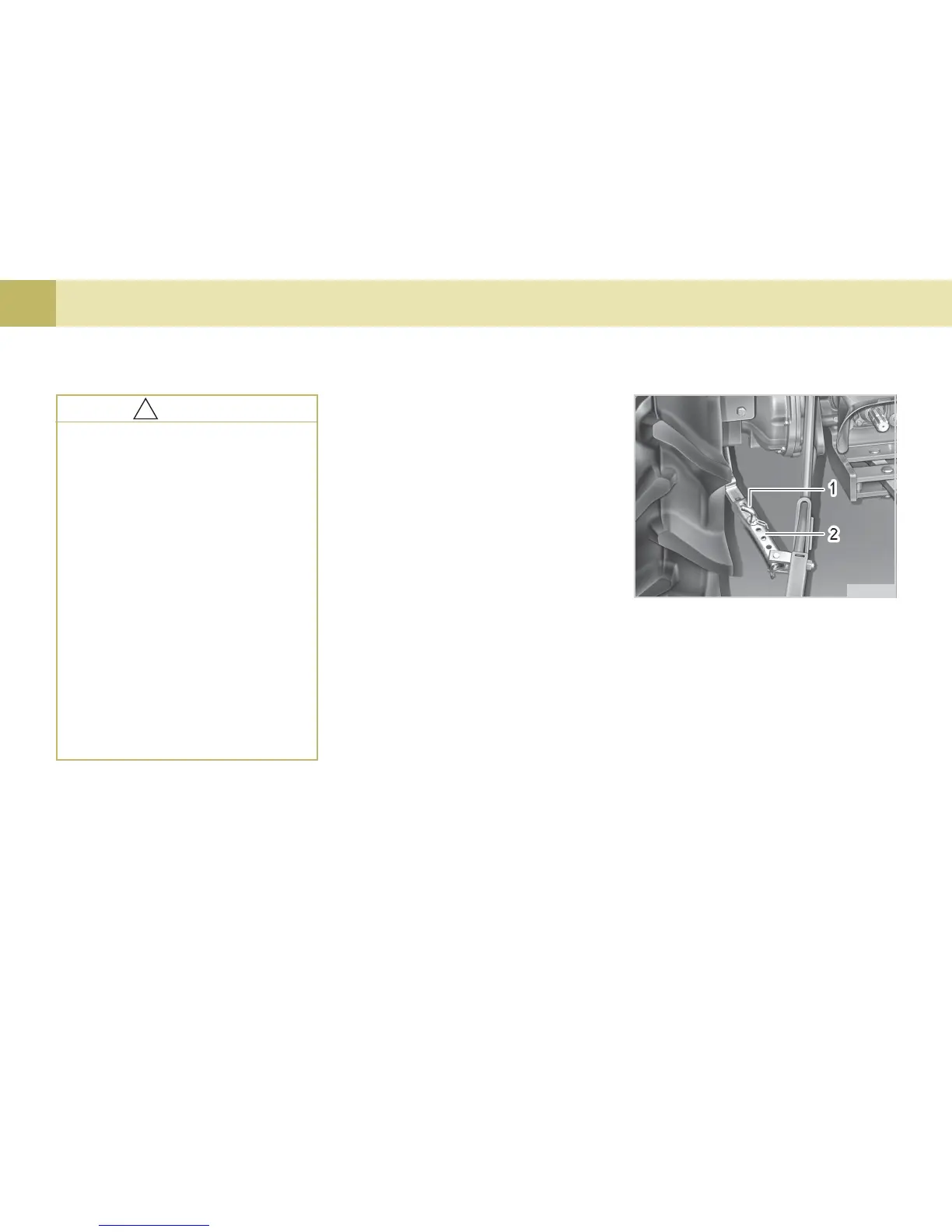

(1) Pin
(2) Telescopic Stabilizer
T46O603A
A plate describing how to mount
on your tractor is labeled on a
standard kioti implement.
Dock the top link into the hole
‘A’ or ‘B’ if haulage not required
as a tiller
Dock the top link into the hole
‘C’ if haulage is required as a
plow.
Dock the top link into the hole
‘A’ or ‘B’ when you drive your
tractor mounted with
implements, otherwise a draft
sensor can be activated and/or
cause a trouble and fall down
without any control in a lifting
part.
!!
!!
!
CAUTION
LIFTING ROD (RIGHT)
Turn the right handle to adjust the lift-
ing rod to a horizontal angle. In general,
most of implements are designed to be
adjusted horizontally. Set a lock pin
after adjusting the handle to your de-
sired position.
