7
-3HYDRAULIC UNIT
MIXED CONTROL(IF EQUIPPED)
Lower the draft control lever up to a
desired depth in the ground, and
tighten the bolt. In order to place an
implement to the position where it's
about to lift, use the position control
lever. In case you work with a mixed
control, lifting device is controlled by
the draft control so that you can pre-
vent the device damage from an over-
loaded implement. limitation of lower-
ing an implement can be controlled by
the locking bolt.

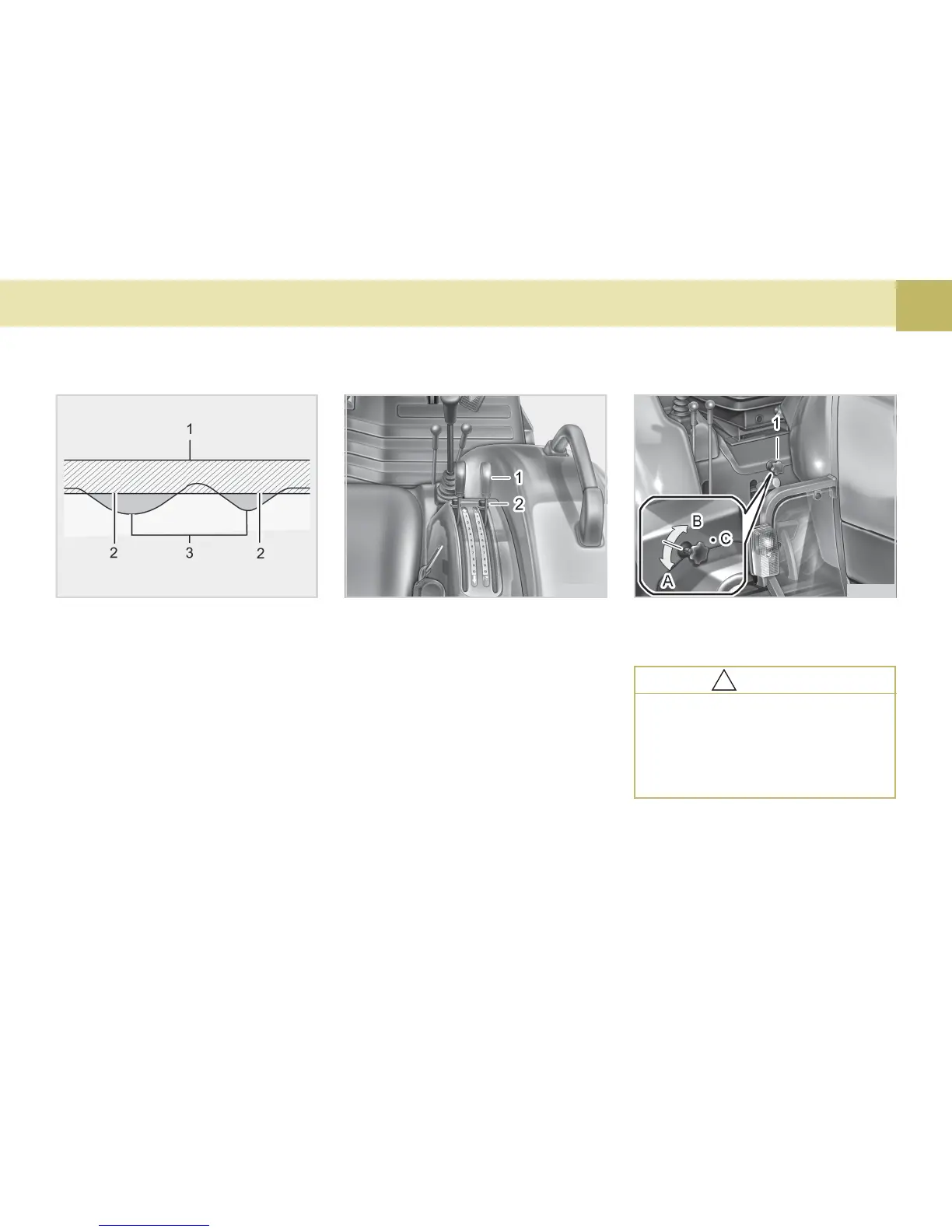

(1) Ground Surface (3) Soft Soil
(2) Implement Penetration Limit
(1) Position Control Lever
(2) Lock Bolt
IMPLEMENT LOWERING LIMIT
The lower limit can be adjusted by mov-
ing the position of the locker.
IMPLEMENT LOWERING LIMIT
The lowering limitation would raise if the
bolt is placed backward and vice versa.
The lowering speed of the 3-point hitch
can be controlled by adjusting the 3-
point lowering speed knob.
(1) 3-Point Lowering Speed Knob
(A) FAST (C)LOCK
(B) SLOW
3-POINT HITCH LOWERING
SPEED
T46O705AT46O704AT46O703A
To avoid personal injury:
Fast lowering speed may cause
damage or injury. Lowering
speed of implement should be
adjusted to two or more seconds.
!!
!!
!
CAUTION
To Next Page
