7
-4 EX35/40/45/50
AUXILIARY HYDRAULICS
JOYSTICK VALVE
To begin test operation, slightly move
the control lever from the "N" position.
Slowly raise the loader boom just
enough for the bucket to clear the
ground when fully dumped. Slowly
work through the dump and roll back
cycles.
TWO STAGE VALVE TYPE
This loader control valve has two stage
dump position. The first stage has good
power and control for dumping
precisely. This position should be used
when operating another implement with
the loader's control valve.
The second dump position (to further
right) features greater speed for
dumping. These two position are sepa-
rated by a "Feel" position for your
convenience.

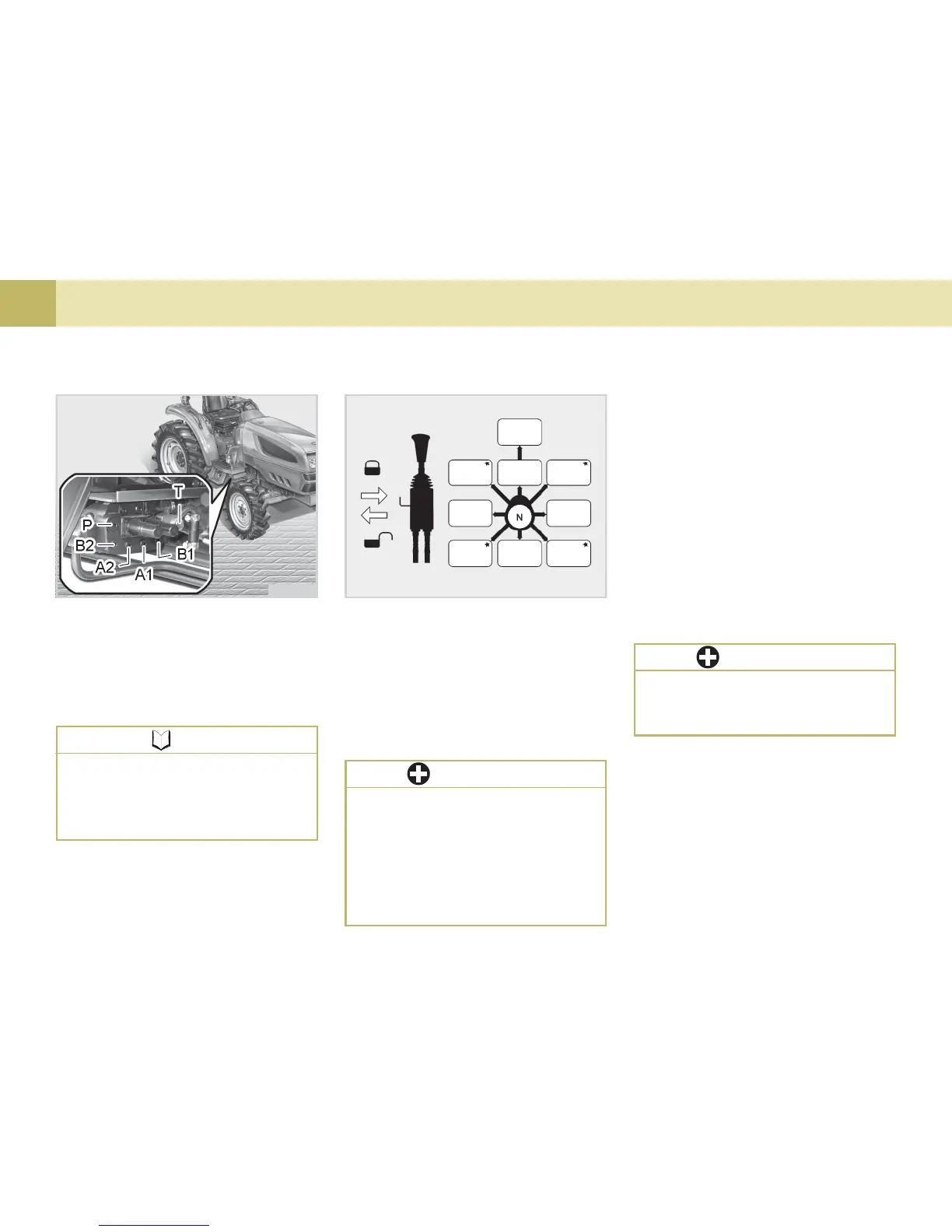

(T) To the Tank (P) From the Pump
(A1) A1 PORT (A2) A2 PORT
(B1) B1 PORT (B2) B2 PORT
Boom Cylinder : A1,B1
Bucket Cylinder : A2,B2
T46O707AT46O706A
When the lever is at each corner
position marked by*, boom and
bucket cylinders work at the same
time.
NOTE
Do not move the control lever
into float position when the
bucket is off the ground.
IMPORTANT
If the boom or bucket does not
work in the directions indicated
in the label, lower the bucket
to the ground, stop the engine,
and relieve all hydraulic
pressure. Recheck and correct
all hydraulic connections.
IMPORTANT
FLOAT
DOWN
DOWN
& ROLL
BACK
UP
ROLL
BACK
UP
& ROLL
BACK
DUMP
DUMP
&
DOWN
UP
&
DOWN
