Kioti EX45 - DOUBLE ACTING LEVER(IF EQUIPPED)

7 -5HYDRAULIC UNIT
Pull
Out
In
Out
In
Push
In
Out
In
Out
Port
A
B
C
D
Lever1
Lever2
T46O708A

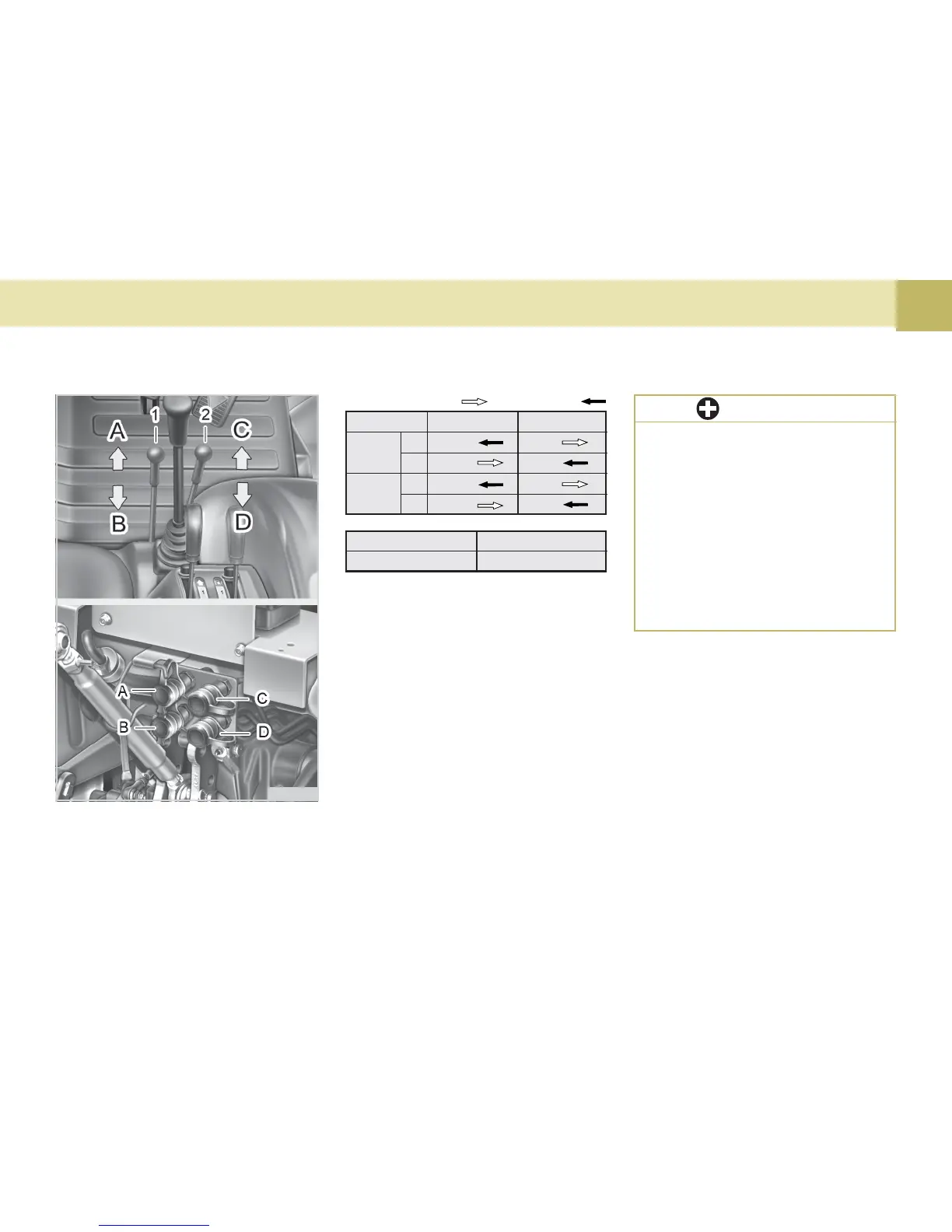

(1) Double Acting Lever 1
(2) Double Acting Lever 2
(A) A PORT (C)C PORT
(B) B PORT (D)D PORT
DOUBLE ACTING LEVER(IF
EQUIPPED)
Pressure Returning
 Do not hold the lever in the
“pull” or “push” position once
the remote cylinder has reached
the end of the stroke, as this will
cause oil to flow through the re-
lief valve.
 To enlarge the front loader
output, when using the hydrau-
lic system of the tractor, do not
operate the boom and the
bucket cylinder simultaneously
IMPORTANT
Port A, B, C, D
Coupler Size
PT 1/2"
Basically a remote valve, which is a
detent type, is attached.
In a normal range you could lift up and
down an implement with shifting and
holding the lever.
When you let go your hold, the lever
would return to neutral automatically.
However, in case you shift the lever in
a detent range, hydraulic pressure is
still on. So, if you want to release it out
of the detent range, you need to shift
it again to the neutral.
