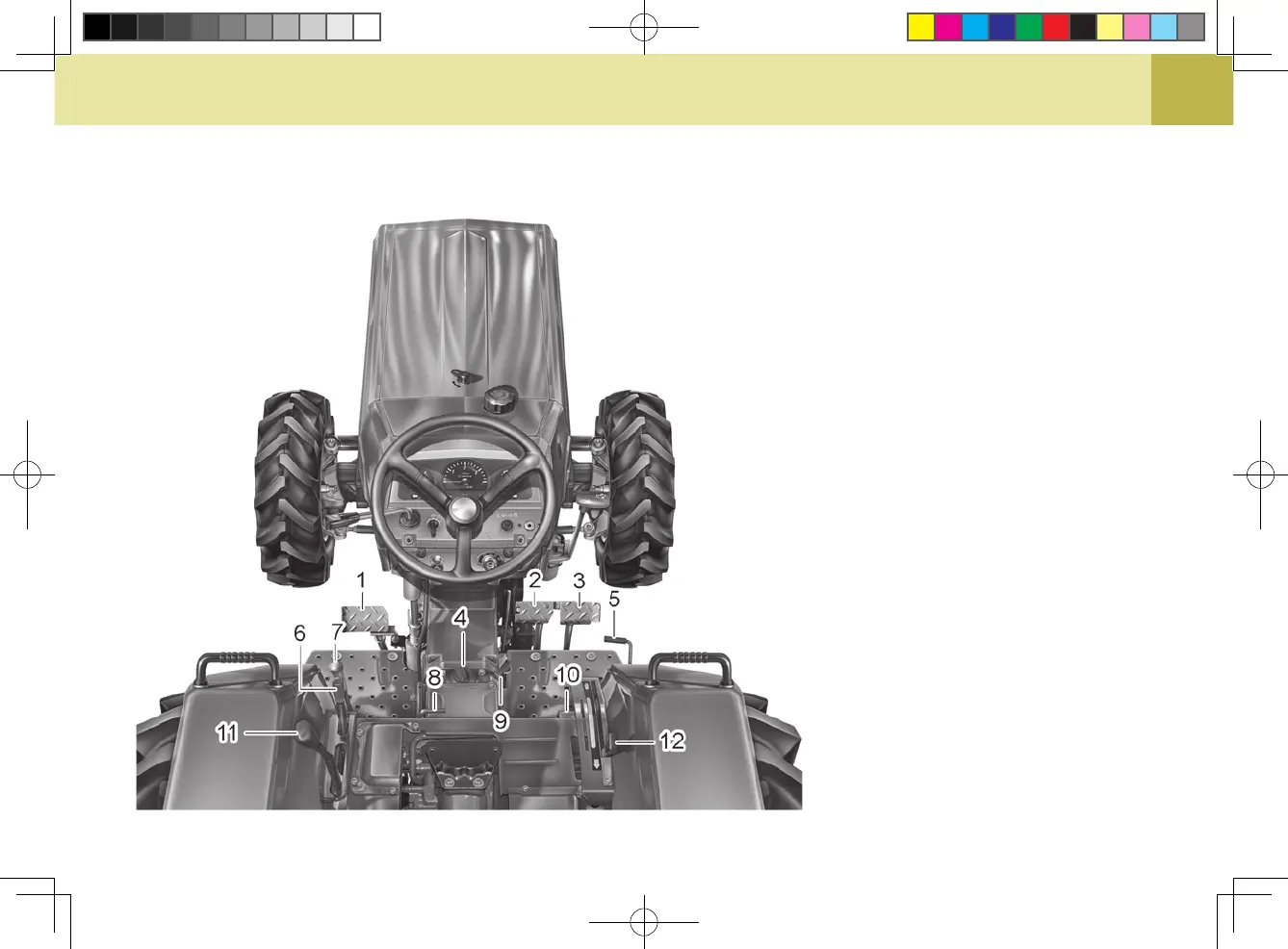

foot anD HanD Controls
(1) Clutch Pedal
(2) Brake Pedal (L)
(3) Brake Pedal (R)
(4) Transmission Oil Inlet Cap
(5) Foot Throttle Pedal
(6) Hi-Lo Shift Lever
(7) PTO Shift Lever
(8) Front Wheel Drive Lever
(9) Parking Brake Lever
(10) Differential Lock Pedal
(11) Shuttle Shift Lever
(12) Position Control Lever
